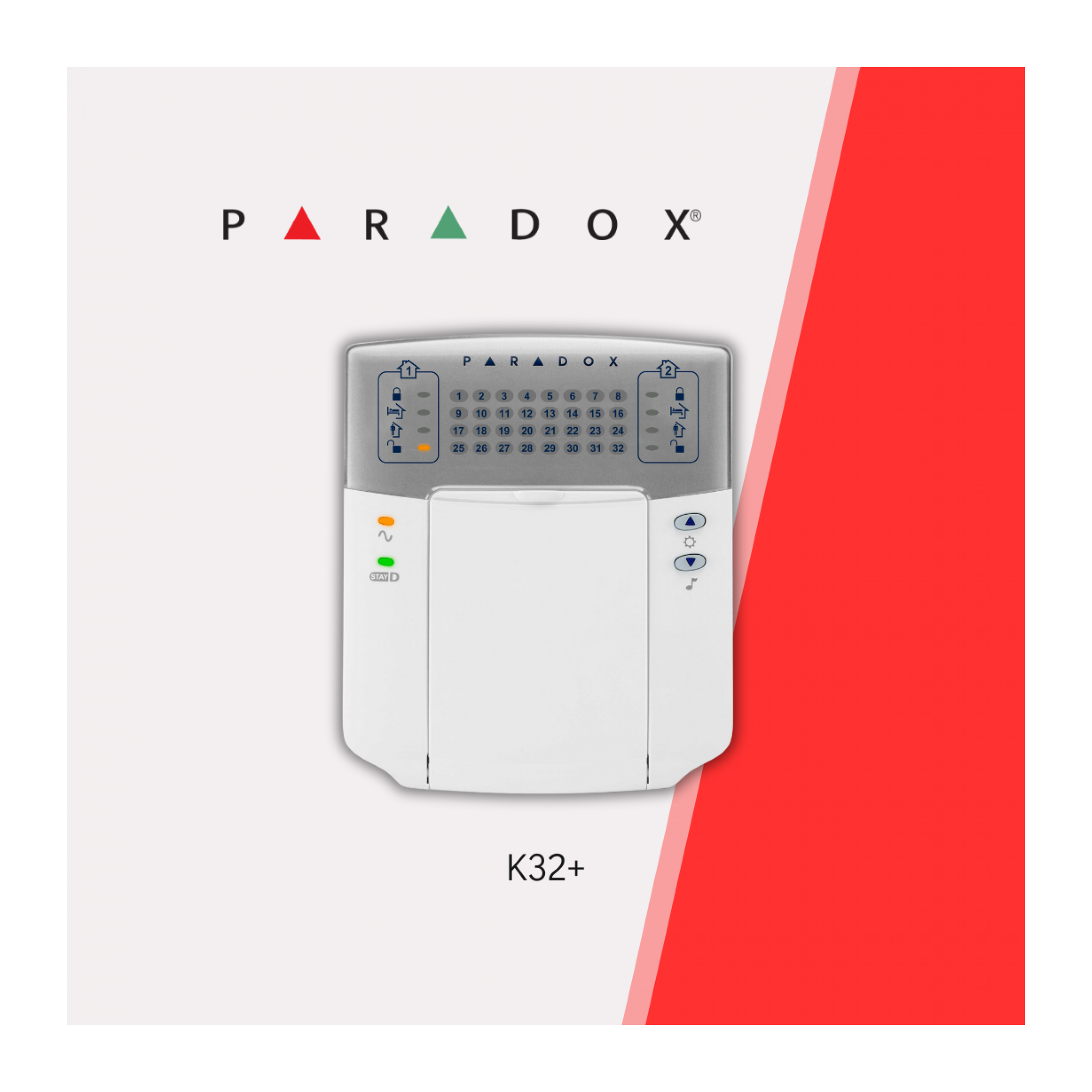

32-ZONE HARDWIRED LED KEYPAD MODULE

The K-32+ keypad is intended for daily operations and programming the PARADOX - Spectra SP, Magellan M series alarm control system. With the LCD display showing text messages, even advanced functionalities of the alarm control unit are simple and convenient.

  • FEATURES:
    • Controls and displays up to 32 zones in 2 partitions

    • 7 one-touch action buttons3 keypad-activated panic alarms

    • Independently-set chime zones

    • Separate Arm, Sleep, Stay, and Off LEDs per partition

    • Available in multiple languages

    • In-field firmware upgradeable via 307USB

Model: K32+


Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Input Voltage

  • 12 to 14 Vdc

Current Consumption

  • Typical: 40mAMaximum: 150mA

Keypad Zone Input

  • 1

Operating Temperature

  • -10 to 55 °C (14 to 131 °F)

Dimensions

  • 12.6 x 15 x 2.7 cm (5 x 5.9 x 1.1 in.)
USER'S GUIDE

K32+ USER'S GUIDE
