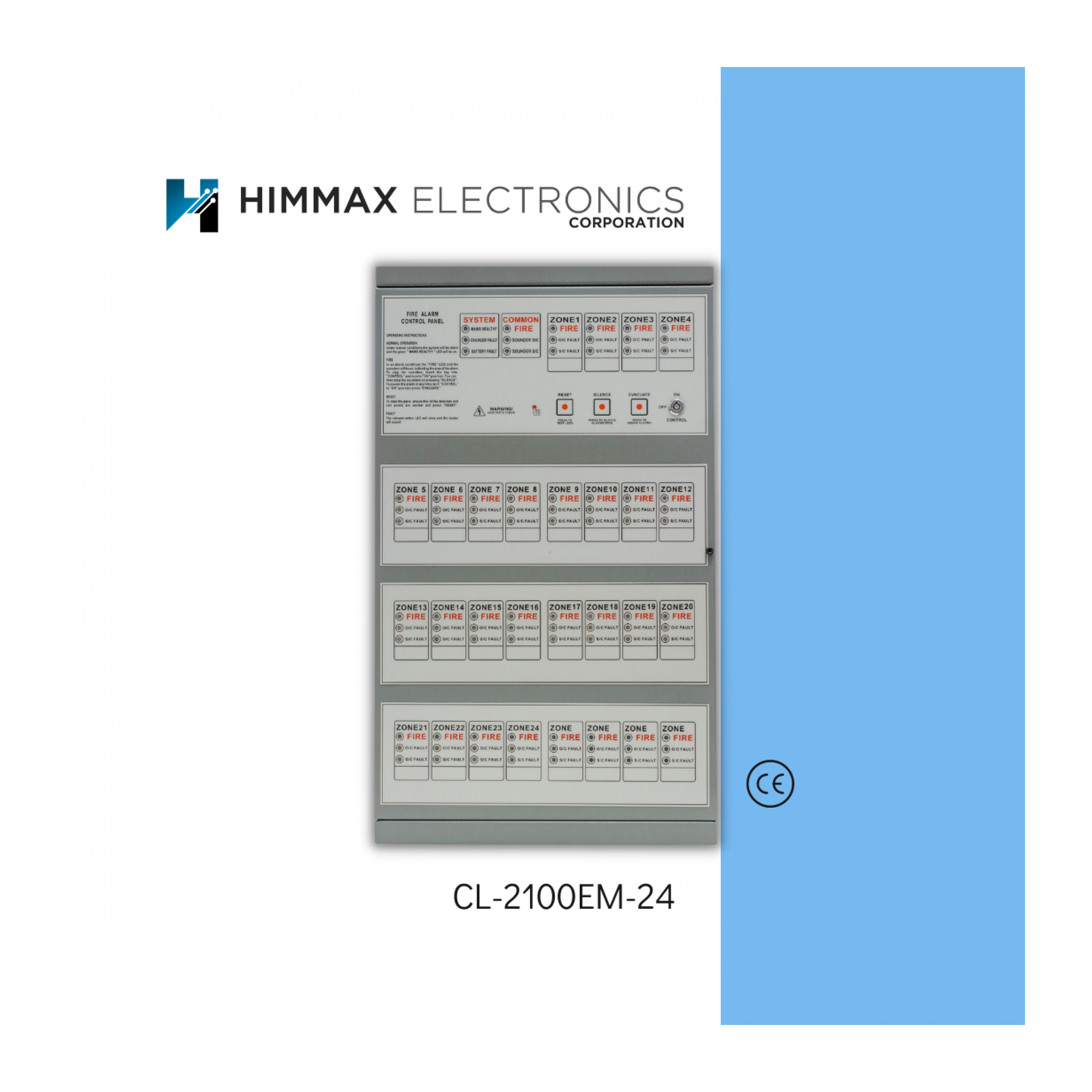

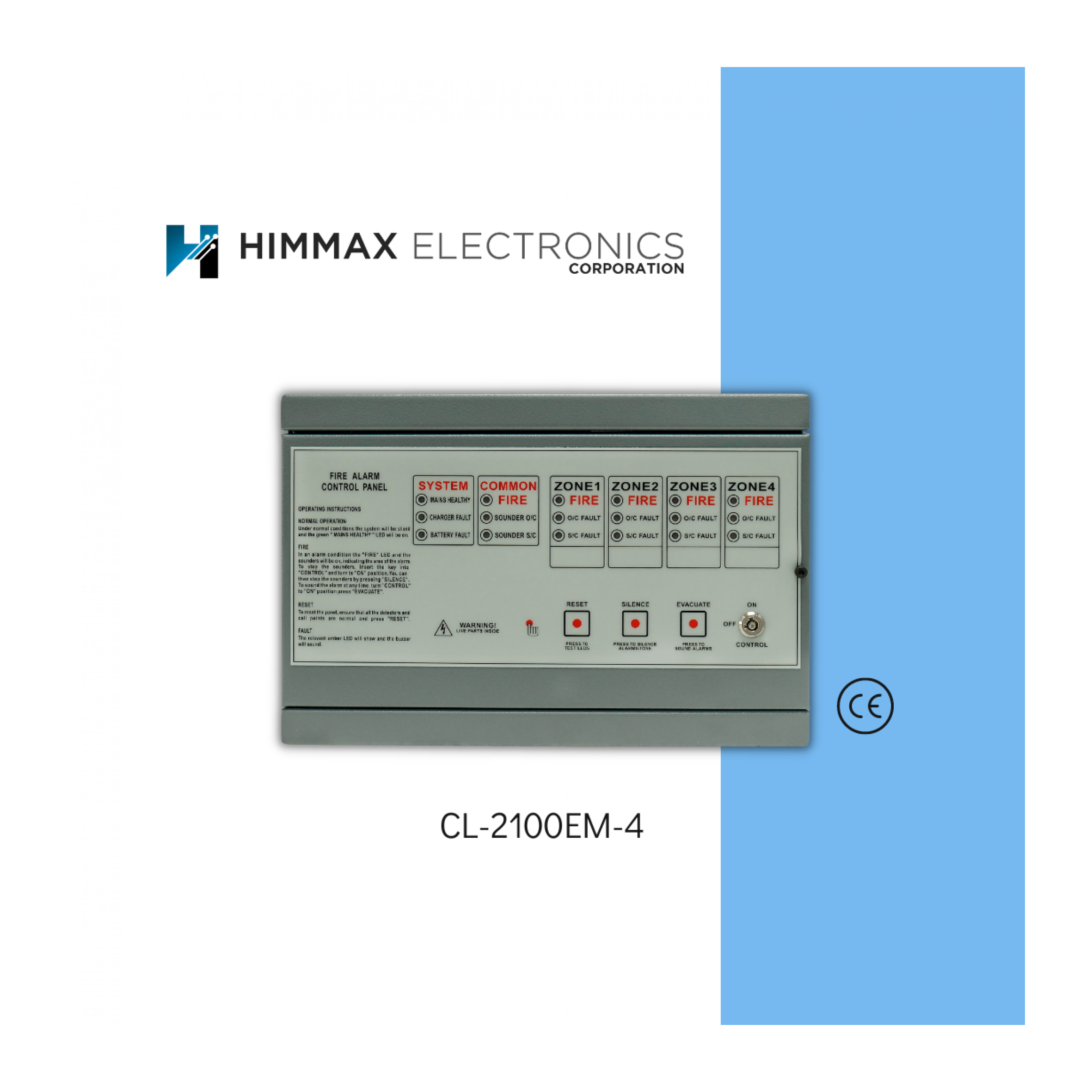

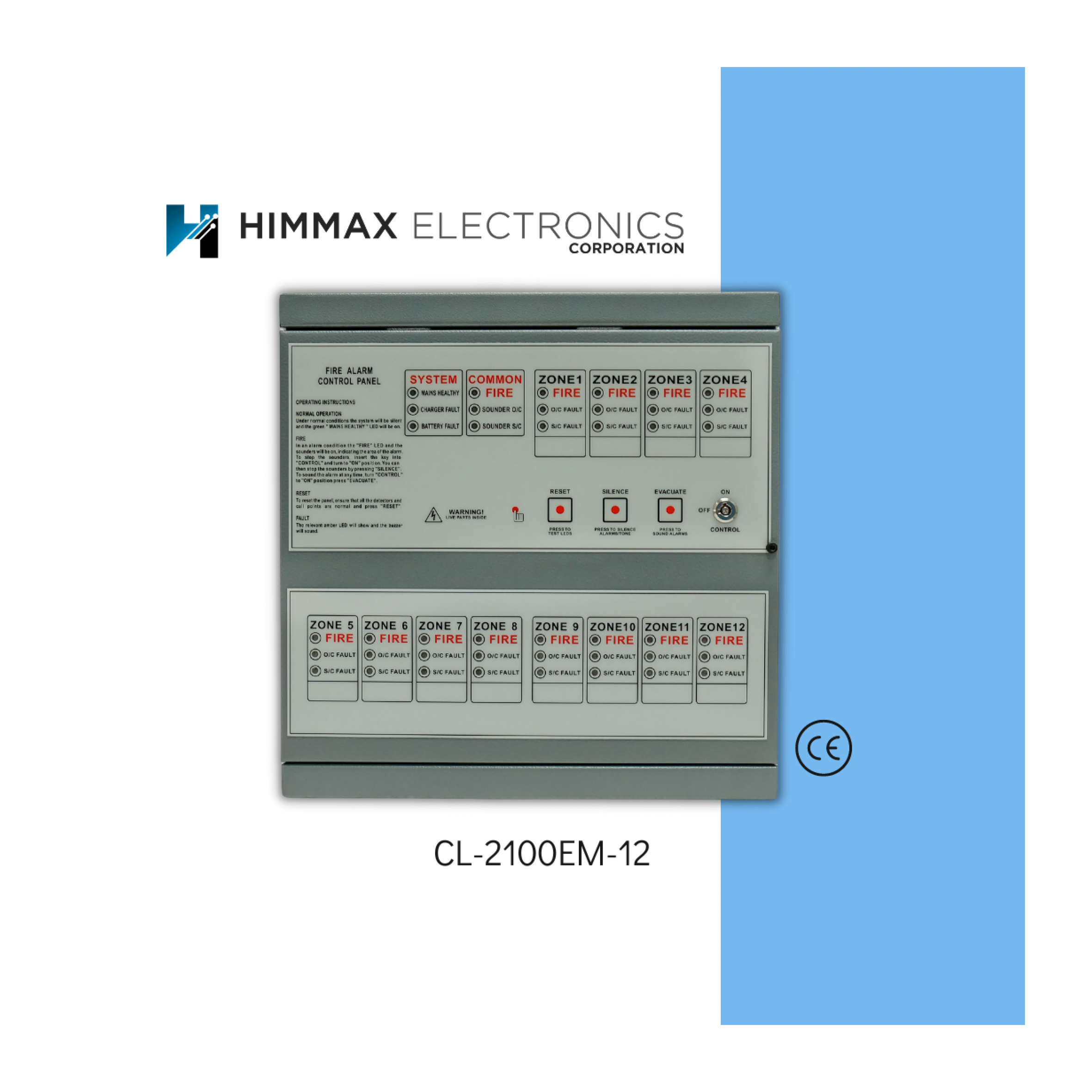

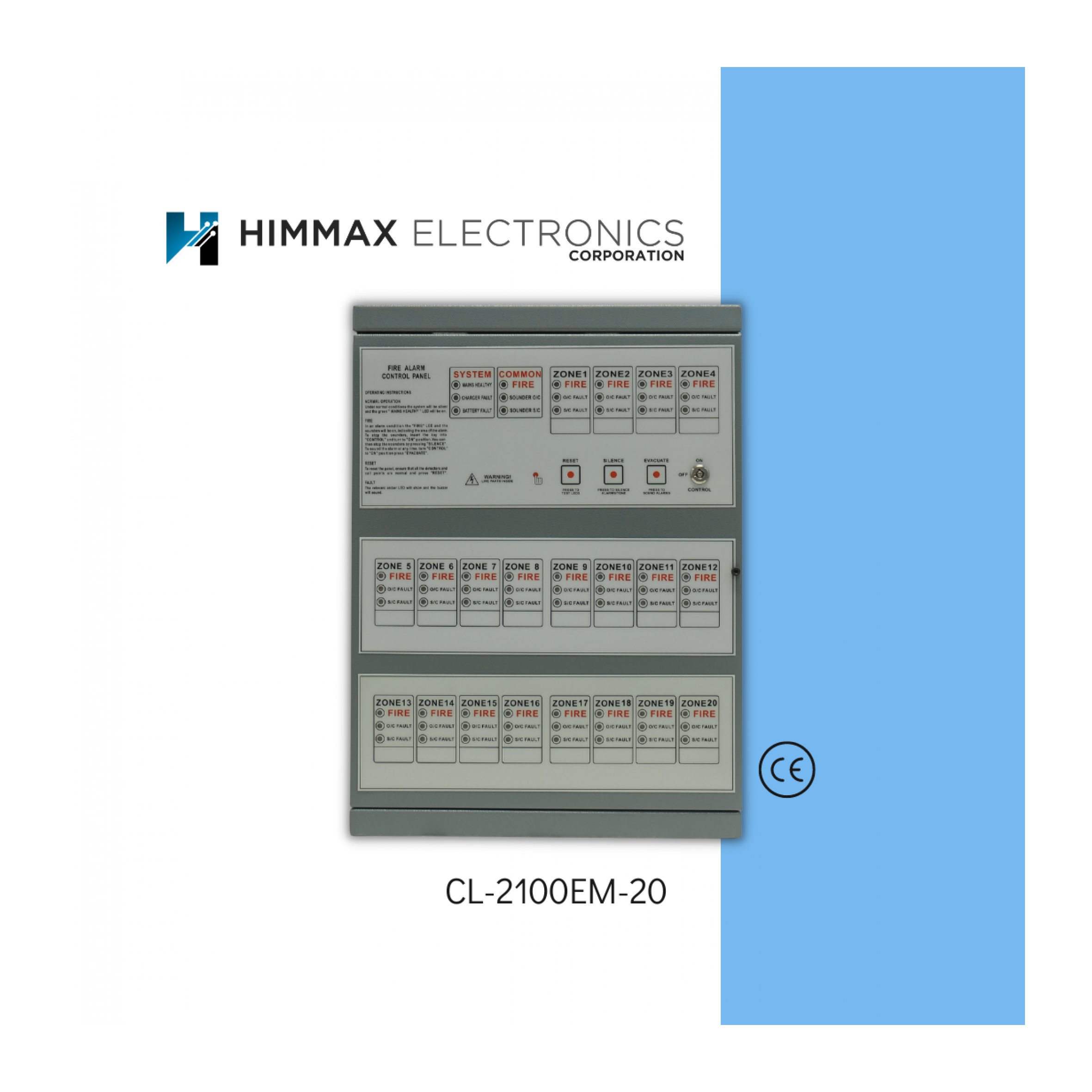

Main Supply

• 240VAC/50-60Hz

Battery Voltage

• 24VDC

Charging Voltage Protection

• 1.6Ah glass fuse

Sounder Output

• 24VEOL10K Ohms

Auxiliary Contacts

• 30VDC1ANC/NO
• 24 VDC 1A max. NC/NO

Main Supply Protection

• Glass Fuse

Sounder Protection

• 2x500mA Glass Fuse

Power Input

• 220VAC
• 50/60hz±10%

Auxiliary Power (back-up battery)

• 2x12V/1.2Ah (4 Zones)
• 2x12V/1.2Ah (8 to 12 Zones)
• 2x12V/2.2Ah (16 to 20 Zones)
• 4x6V/4Ah (24 to 28 Zones)

Operating Voltage

• 24 VDC

Detection Current

• Analog; 50mA

Loop Resistance EOL

• 5.6K/1/4W Resistor

Detector Capacity per Zone

• 20 detectors

Sounding Device

• 20 mA-100 mA (4 Zones)
• 120 mA-160 mA (8 TO 12 Zones)
• 240 mA-320 mA (16 to 20 Zones)
• 400 mA-560 mA (24 to 28 Zones)

Alarm Delay (per seconds)

• General Alarm

Sounder Fuse

• 0.5 A (4 to 12 Zones)
• 1.5 A (16 to 20 Zones)
• 3 A (24 to 28 Zones)

Reverse Battery Fuse

• 1.5 A (4 Zones)
• 3 A (8 to 20 Zones)
• 4 A (24 to 28 Zones)

Alarm Tone (Panel)

• Buzzer

Cabinet Color

• Gray Powder Coated

Dimension H x W x D (mm)

• 205 x 305 x 110 (4 Zones)
• 310 x 305 x 110 (8 to 12 Zones)
• 415 x 305 x 115 (16 to 20 Zones)
• 520 x 305 x 115 (24 to 28 Zones)

Weight

• 3.5 kg (4 Zones)
• 5 kg (8 to 12 Zones)
• 6.5kg (16 to 20 Zones)
• 9 kg (24 to 28 Zones)
