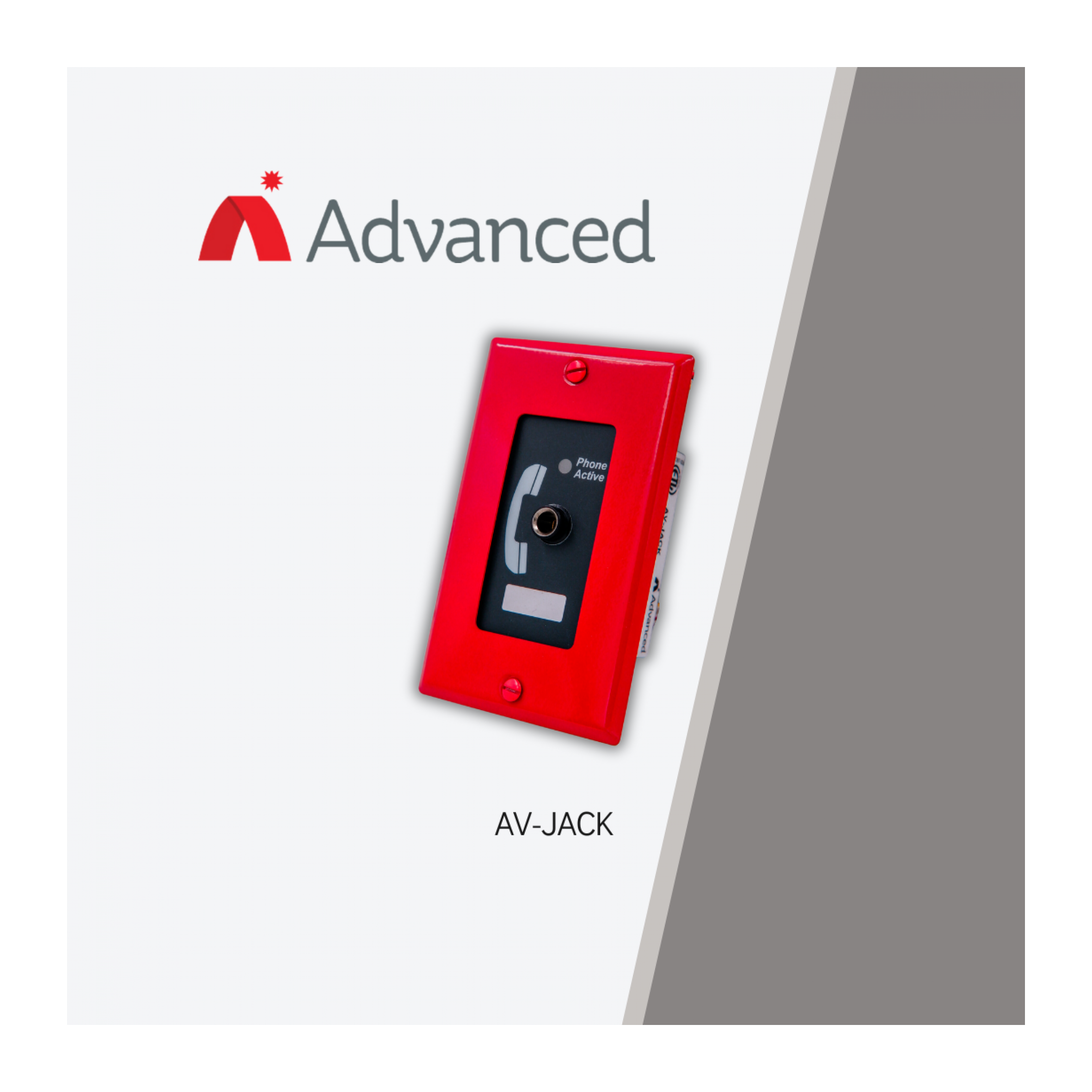

The AV-JACK can be mounted to a single-gang electrical back box and provides the capability of supporting a Portable Firefighter Telephone. The Advanced AV-PHONE is a compatible red Firefighter Telephone that has a mating male RCA ¼” plug. When the AV-PHONE is plugged into the AV-JACK, a buzzer sounds at the Command Center indicating a request for service. Simultaneously, an associated LED flashes at the Command Center to indicate the location and identity of the incoming call. Once the Command Center operator presses the telephone connect button, the LED at the Command Center turns on steady and the LED at the AV-JACK turns on to indicate to the firefighter that the connection from the AV-JACK to the Command Center has been made. The AV-JACK is compatible with the AV-TEL and AV-TEL-RISER6 telephone riser circuitry. The AV-TEL and AV-TEL-RISER6 circuitry create fully supervised telephone “party lines” that allow field mounted firefighter telephones to communicate with up to 5 other firefighter telephones on individual riser “party lines” as well as the Command Center telephone simultaneously. The “party line” can be configured as a Class B or Class A circuit.
-
FEATURES::
-
Individually Addressable Telephone Jacks
-
Phone Active LED Indicator
-
Telephone Riser Supply Supervision
-
Super vised against Opens, Shorts and Grounds
-
Class A or B Configuration
-
Slide-in Custom Location Label
-
Mounts in a Single-Gang Electrical Box
-
Compatible with AV-TEL and AV-TEL-RISER6 Products
-
Field Programmable for Buzzer and LED Status Indications
-
Five (5) Phone “Party Line” Communications per Telephone Riser
-
Up to 40 AV-JACKs per AV-TEL Riser & up to 35 per
-
Class A or B Wiring
-
AVTEL-RISER (210 max)
-
.png)
Model: AV-JACK
| SPECIFICATIONS SPECIFICATIONS | DESCRIPTION DESCRIPTION |
|---|---|
|
Voltage |
|
|
Current Draw |
|
|
Wire Gauge |
|
|
Environment |
|
|
Electrical Backbox |
|
