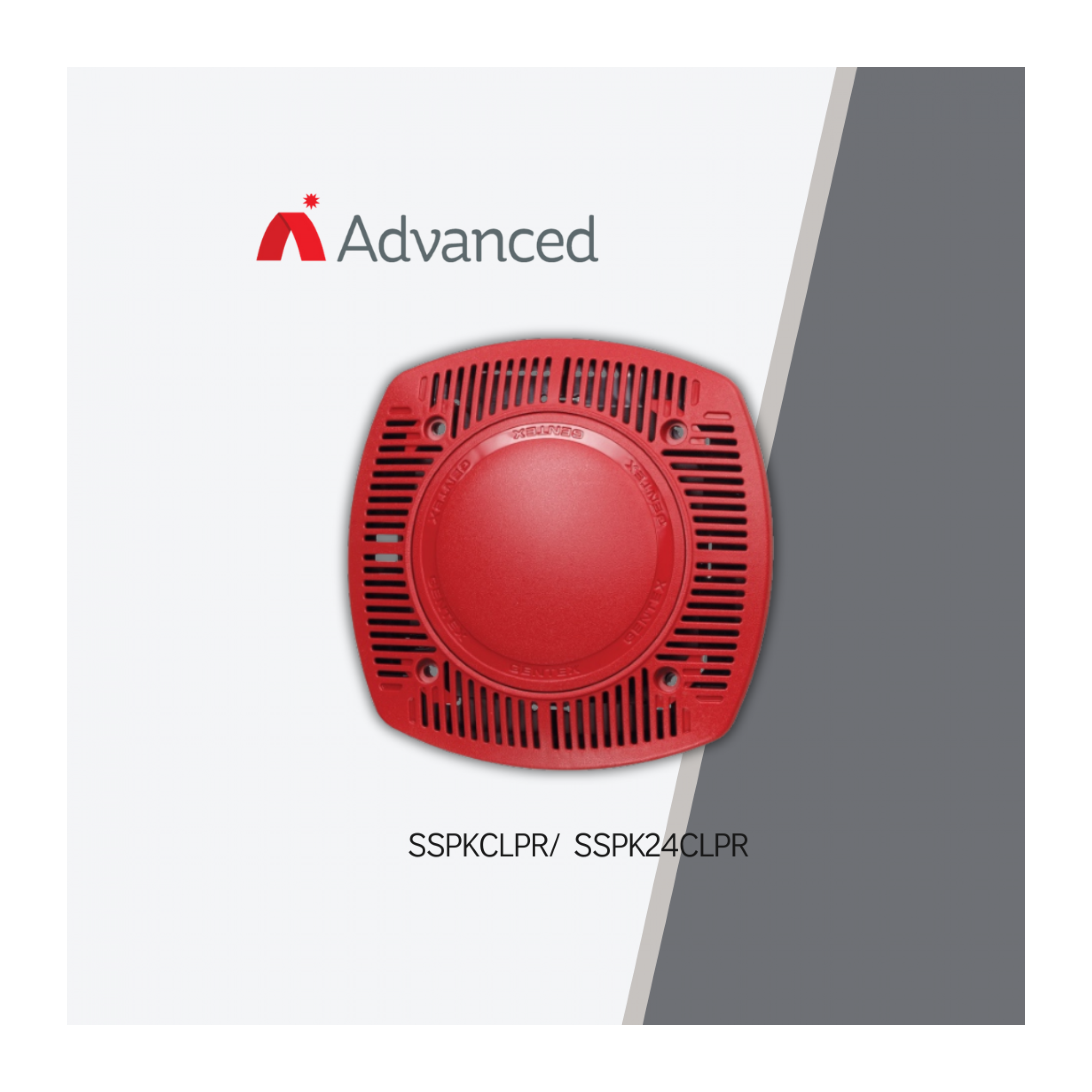

SSPKCLP SERIES STROBE CEILING MOUNT

The Gentex SSPK24CLP is a ceiling mount, selectable candela speaker/strobe and the SSPKCLP is a ceiling or wall mount speaker designed to meet code requirements for audio, visual and voice communications. The SSPKCLP Series are quality speaker products that offer both dependable evacuation signaling and visual alarms, or a combination of both. The SSPK24CLP has high output tamperproof candela selections are 15, 30, 75, 95 and 115. The SSPKCLP Series can be mounted in a 4” square x 2-1/8” deep back box, an extension ring is not needed.

  • FEATURES:
    • Tamperproof Selectable Candela 15, 30 75, 95 and 115

    • Tamperproof Grill

    • Faceplate Available Red or Off-White

    • Field Selectable Power Taps 1/8, 1/4, 1/2, 1, 2, 4 watt

Model: SSPKCLPR/SSPK24CLPR


Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Speaker Voltage

  • 25 or 70.7 VRMS Standard, Field Selectable

Frequency Range

  • 400-4000Hz

Unit Dimensions

  • 6.1” Square x 1.88” Deep
DATA SHEET

SSPKCLPR/SSPK24CLPR DATA SHEET
