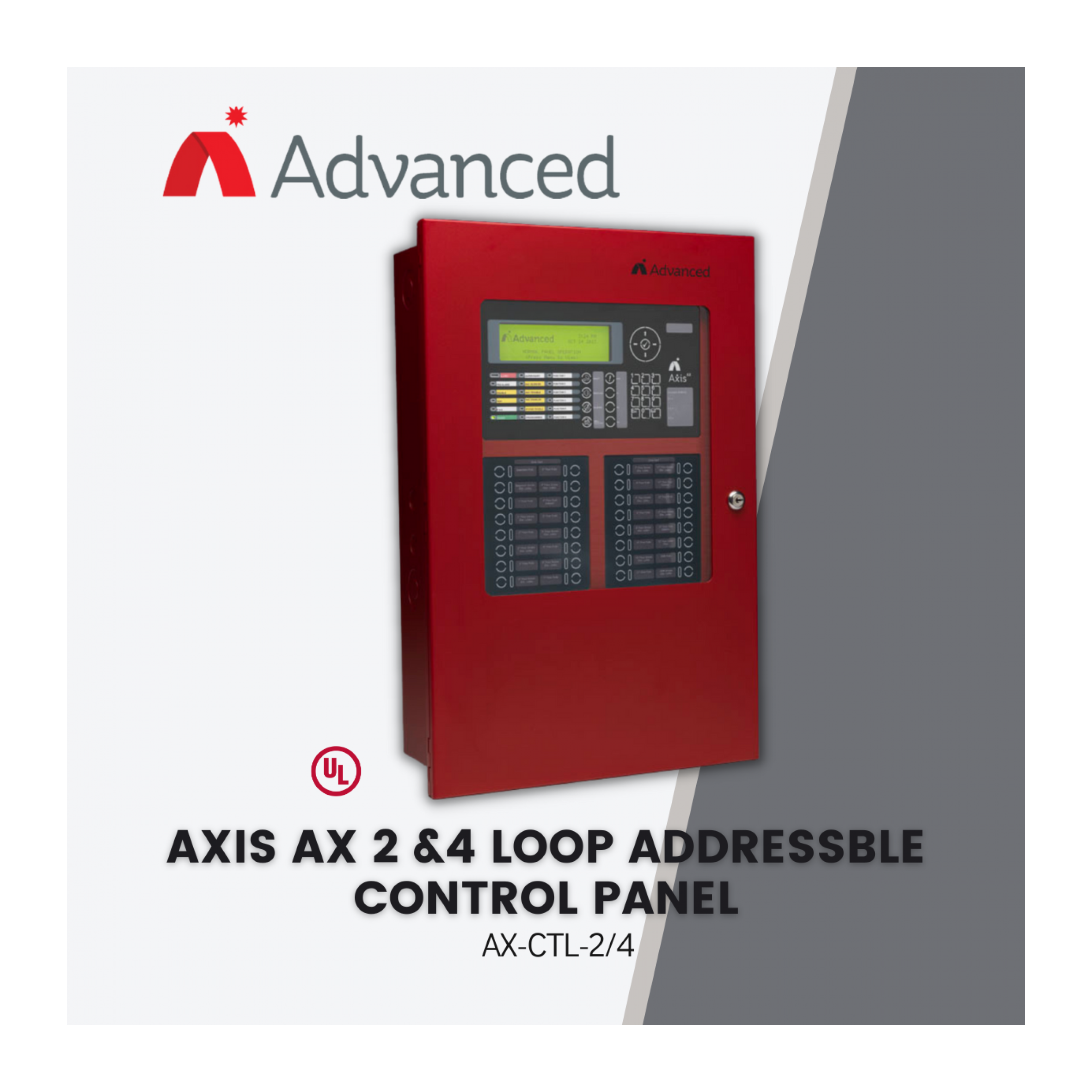

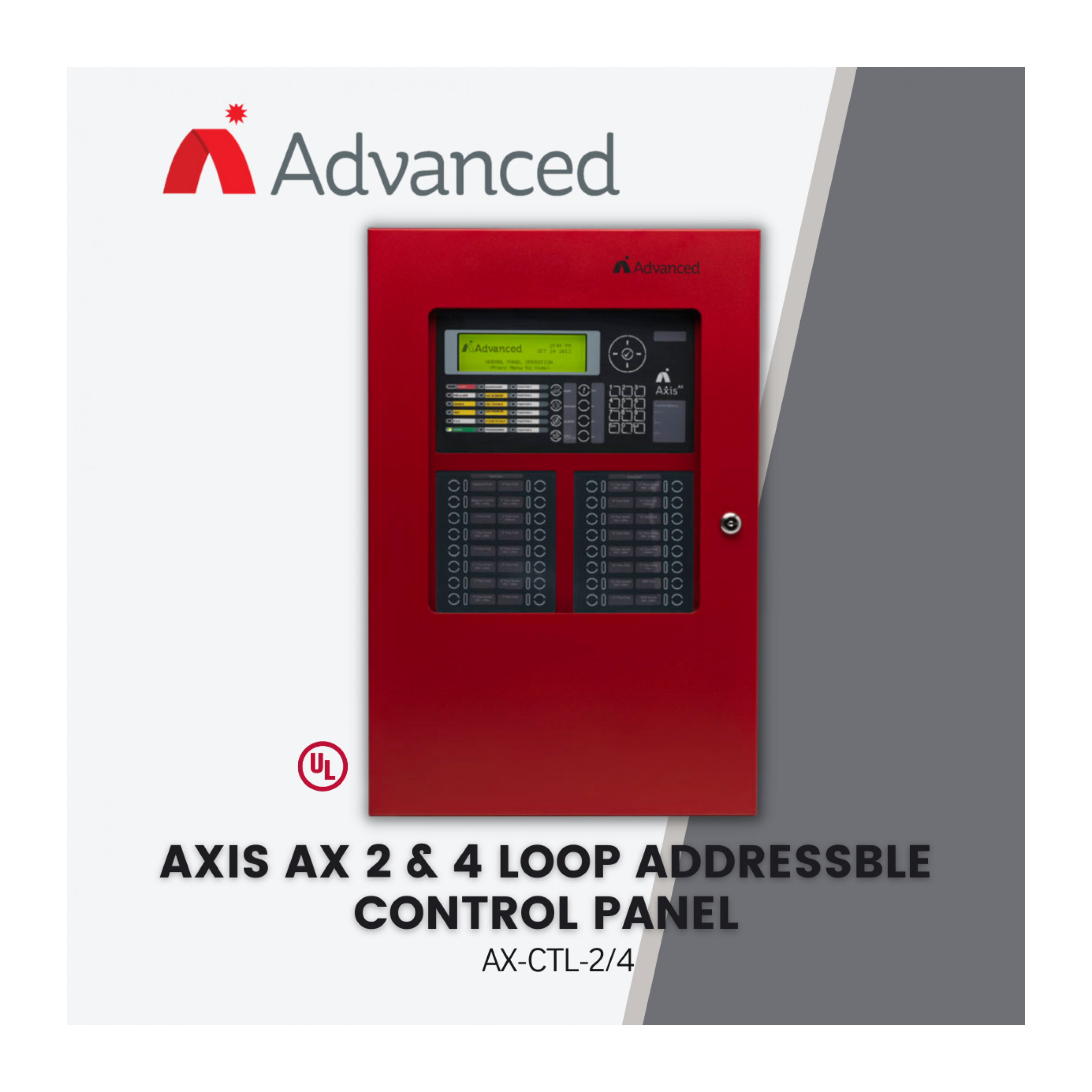

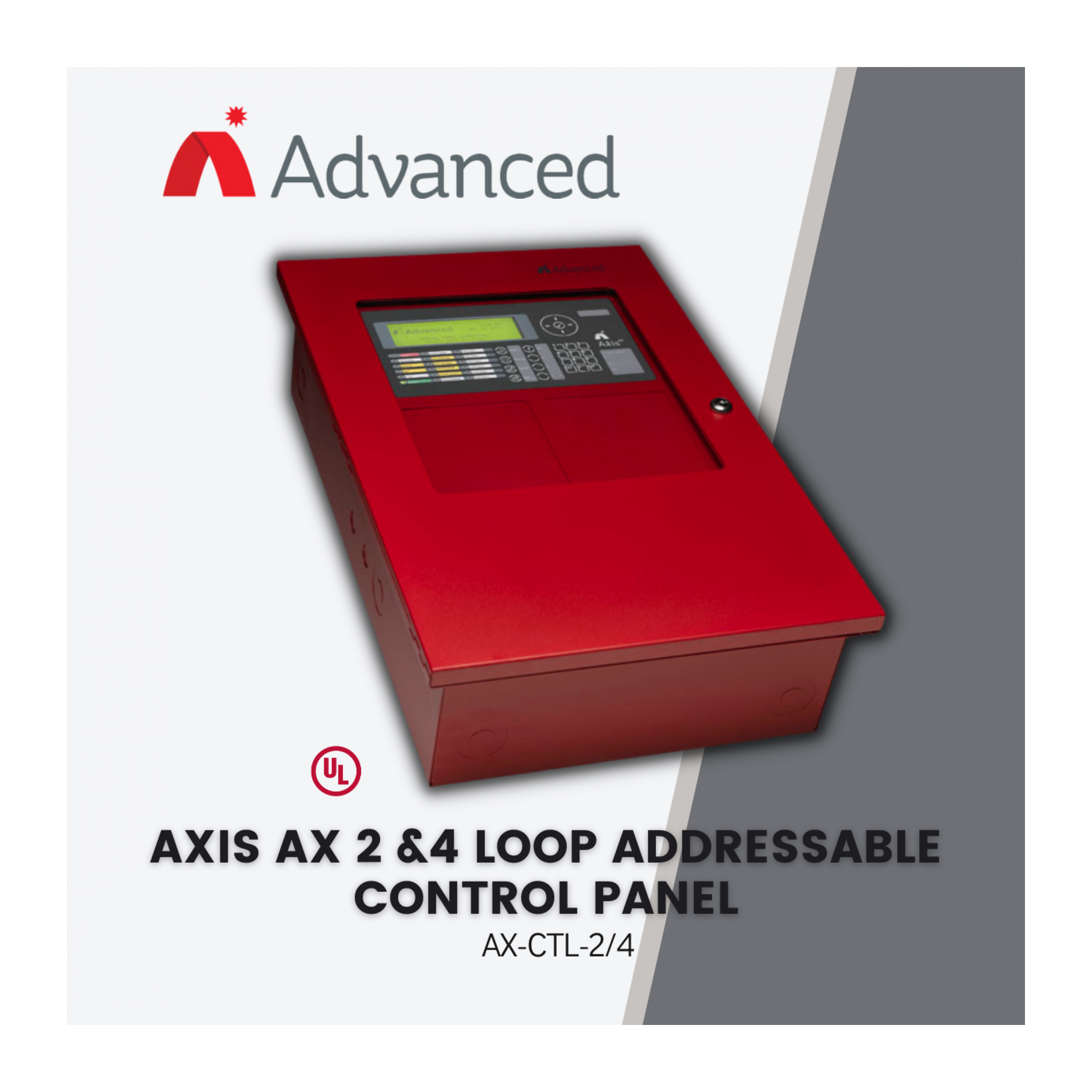

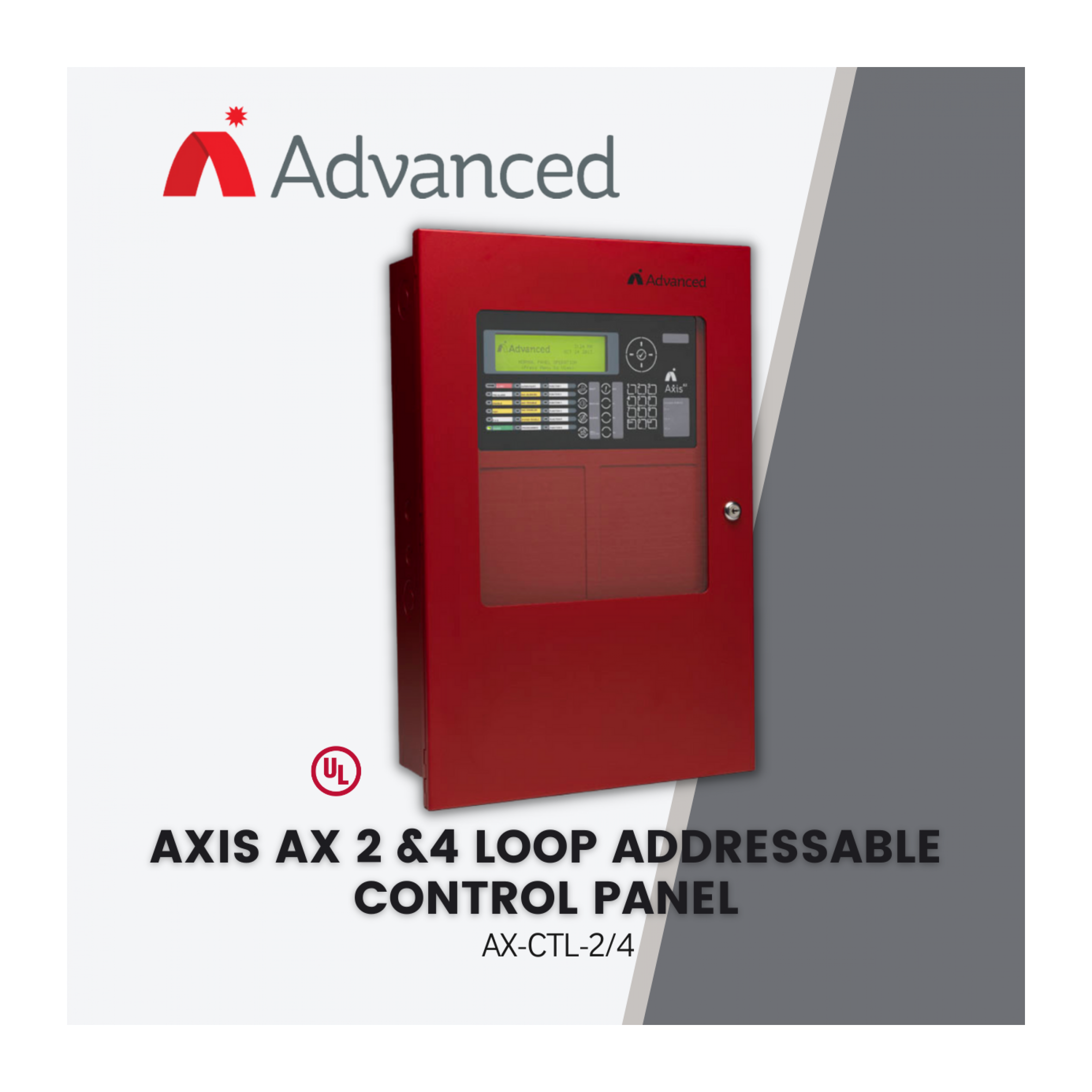

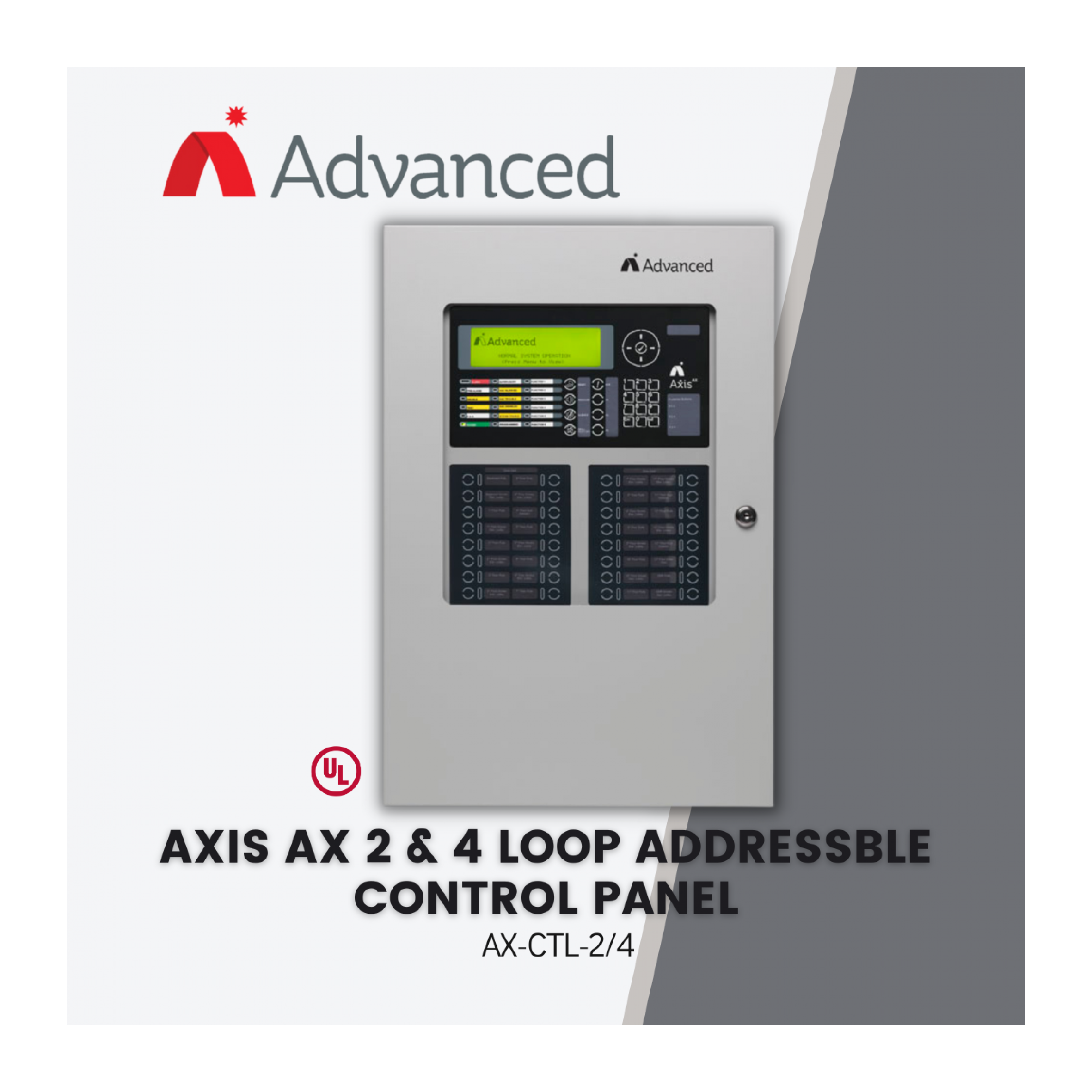

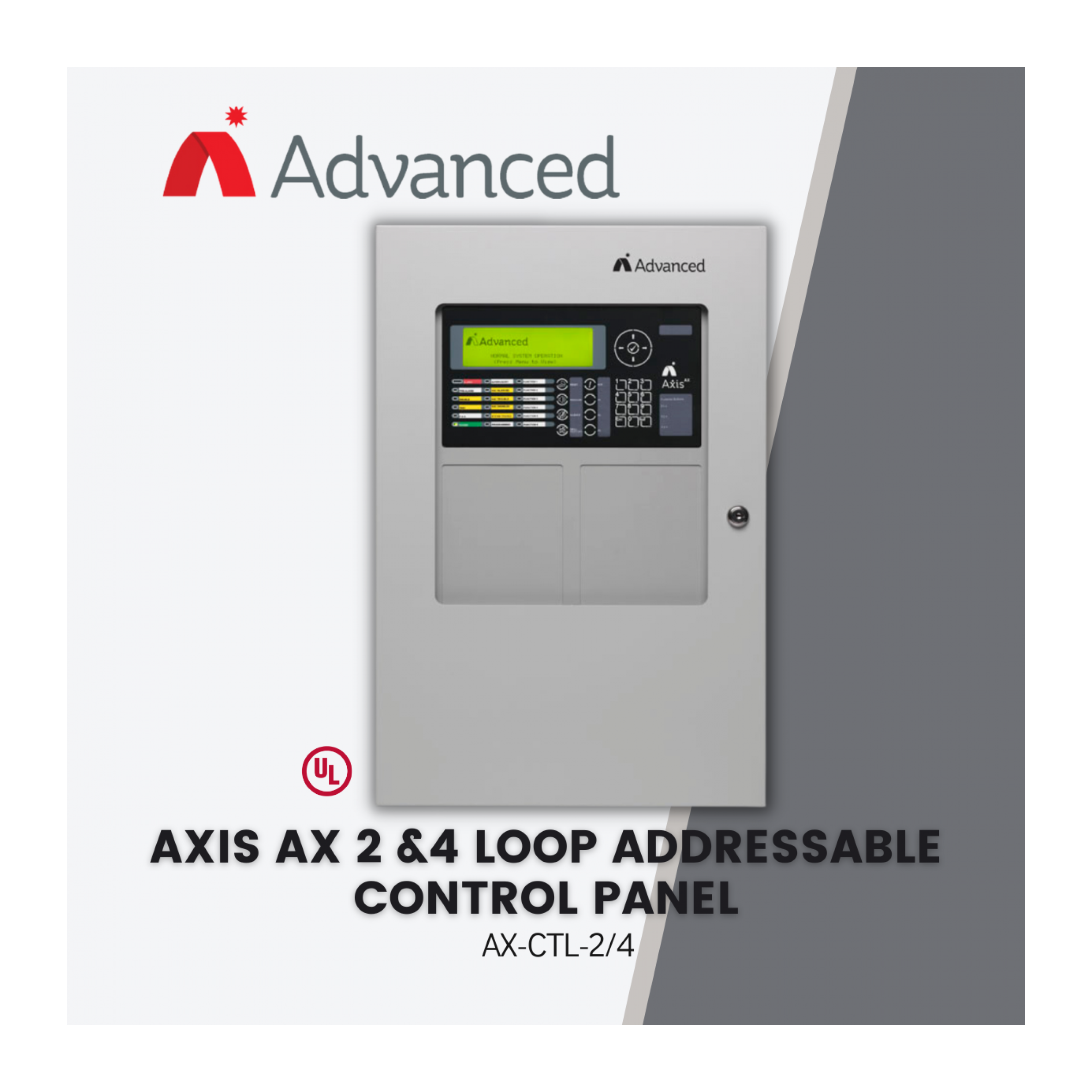

AXIS AX – 2 & 4 LOOP FIRE ALARM CONTROL PANEL

The Axis AX Multi Loop Panel is available in two standard models, the AX-CTL-2 (2 Loop) and AX-CTL-4 (4 Loop). Designed with installation and service engineers in mind, these intelligent panels are modularly packaged, using surface mount and dual flash microprocessor technology, with onboard real time clocks for ease of installation, troubleshooting, programming and maintenance. The AX-CTL-2 Intelligent Fire Alarm Control Panel provides two Style 4 or Style 6/7 Signaling Line Circuits (SLCs). Communications to field devices attached to the SLCs is via an advanced, 100% digital protocol with advantages of being highly immune to noisy environments and will operate over non-shielded cable without causing interference problems with sensitive electronic equipment. Each SLC supports up to 126 analog addressable devices (any combination of intelligent detectors, input and/or output devices, including loop powered technology devices). In addition, our unique sub-addressing of various input and/or output devices permits expanding system capacities further.

  • FEATURES:

    • Advanced User Interface with Graphical LCD

    • Multi-Pattern & Two-Stage NAC Control

    • Remote Diagnostic Capabilities

    • Advanced Networking

    • Up to 504 Analog/Addressable Points

    • Automatic Drift Compensation per Detector

    • Automatic Detector Testing with Maintenance Alert

    • Alarm Verification and PAS

    • Style 4, 6 & 7 SLC Operation (Supports loop powered technology)

    • Synchronization of Audibles and Visuals (Panel or networkwide)

    • User-Friendly PC-NeT Field Configuration Program

    • 5 to 10 Amps of System Power

    • Optional ipGateway for Text and Email Status Notification

    • “Auto-Learn/Loop Detection” Programming

    • Class A or B NAC Circuits

    • SLC Circuits Compatibility with Xtralis VLC-400

    • Voltage Regulated NACs (Compatible with most Listed NAC devices)

  • LISTING AND APPROVALS:

    • ETL ANSI/UL 864 Listed: 101564744NYM-001

    • CSFM Approved: 7165-1713:0101

    • NYCFC COA #6105

Model: AX-CTL-2/4

Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Operating Voltage
  • 120 VAC (1.4A) - 240 VAC (0.7A), 50/60Hz

Battery Circuit
  • Charging voltage : 27.4 VDC nominal
  • Temp. Compensated Charging Current :2 Amp
  • Battery Derating factor : 0.83A
  • Battery capacity : 7Ah (minimum), 48Ah (maximum)
  • Battery Fuse : 5A @ 240 VAC, time delayed, ceramic.

Fire, Supervisory, and trouble relays (Power limited - when utilizing system power)
  • Type Form : "C"
  • Rating : 1A @ 30 VDC/VAC
  • Trouble Relay : Normally active (fail-safe operation)

Auxillary power outputs (Power limited)
  • RESETTABLE: Voltage :24 VDC Current : 0.5A Reset time : 10-15 seconds
  • NON-RESETTABLE: Voltage: 24 VDC Current: 0.5A

Humidity
  • 85% Relative humidity

Temperatures
  • Operating 32°F - 120°F (0°C - 49°C)
  • Recommended Room 60°F - 86°F (15°C - 27°C)

Enclosure dimensions
  • Back Box 22.6″H x 14.5″W x 5.5″D
  • Housing 24.1″H x 16″W x 6.3″D

SLC Loop (Power limited)
  • Class (Style) : Class A or B (Style 4, 6 or 7)
  • Voltage : 24 VDC
  • Minimum Return Voltage: 17 VDC
  • Current: 0.5A

NAC circuits (Power Limited)
  • Class (Style): Class A or B
  • Voltage 24 VDC: (filtered and regulated)
  • Minimum Return Voltage: 16 VDC
  • Current : 2A (each)
Brochure

AXIS AX – 2 & 4 LOOP FIRE ALARM CONTROL PANEL

AX-CTL-2 DATA SHEET
