The Axis EN series control panels are supplied with a single loop driver card, 2 on board sounder circuits, 20 programmable zone LEDs with slide-in labels, and 25 system LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation. The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple 'select & click' programming aid for engineer configuration and end user operation.
-
FEATURES:
-
20 programmable zone / 25 System LEDs. Advanced graphical LCD user interface and support for up to 200 fire zones by default allowing full EN54 compliance without additional hardware.
-
Dedicated USB & RS232 Serial Port for direct PC or modem connection.
-
Installer friendly Auto-learn, Loop Detection and On-board Scope facility.
-
Graphical display configurable for virtually any language.
-
Robust removable equipment chassis with plug-in connectors for simple fixing and cable termination.
-
Integral P-Bus for system expansion via available option cards.
-
Ad-Net peer-to-peer network with up to 2000 zones Approved to EN54 part 2, 4 and 13.
-
.png)

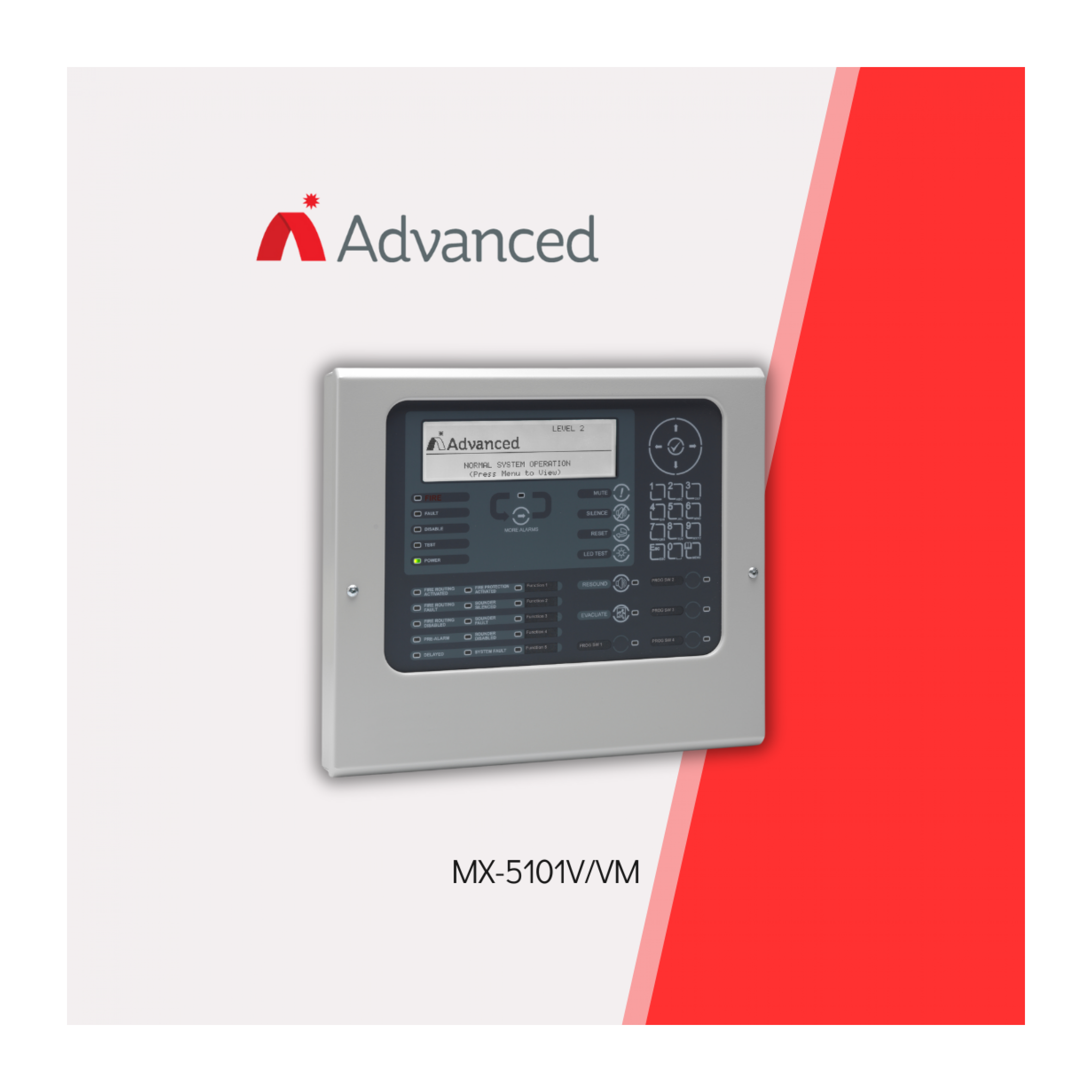

Model: MX-5101VM
| SPECIFICATIONS SPECIFICATIONS | DESCRIPTION DESCRIPTION |
|---|---|
|
Base technology |
|
|
LED Indicators |
|
|
Number of Loops |
|
|
Loop Current |
|
|
On-Board Sounder Circuits |
|
|
On-Board Relays |
|
