The Axis EN series is fully expandable from 1 to 4 loops and supplied with 4 on-board sounder circuits, 20 programmable zone LEDs with slide-in labels, and 25 System LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation. The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple select and click programming aid for engineer configuration and end-user operation.
-
FEATURES:
-
20 programmable Zone/ 25 System LEDs.
-
Advanced graphical LCD user interface and support for up to 200 fire zones by default allowing full
-
EN54 compliance without additional hardware.
-
Dedicated USB & RS232 serial port for direct PC or modem connection.
-
Installer friendly Auto-learn, Loop Detection and On-board Scope facility for ease of commissioning and fault finding.
-
The graphical display can be configured to operate with virtually any language or character set, and allow the installer's logo to be applied using the Logo application software.
-
Integral P-Bus for system expansion via available option cards.
-
Ad-Net peer-to-peer network with up to 2000 zones Approved to EN54 part 2, 4 and 13.
-
.png)

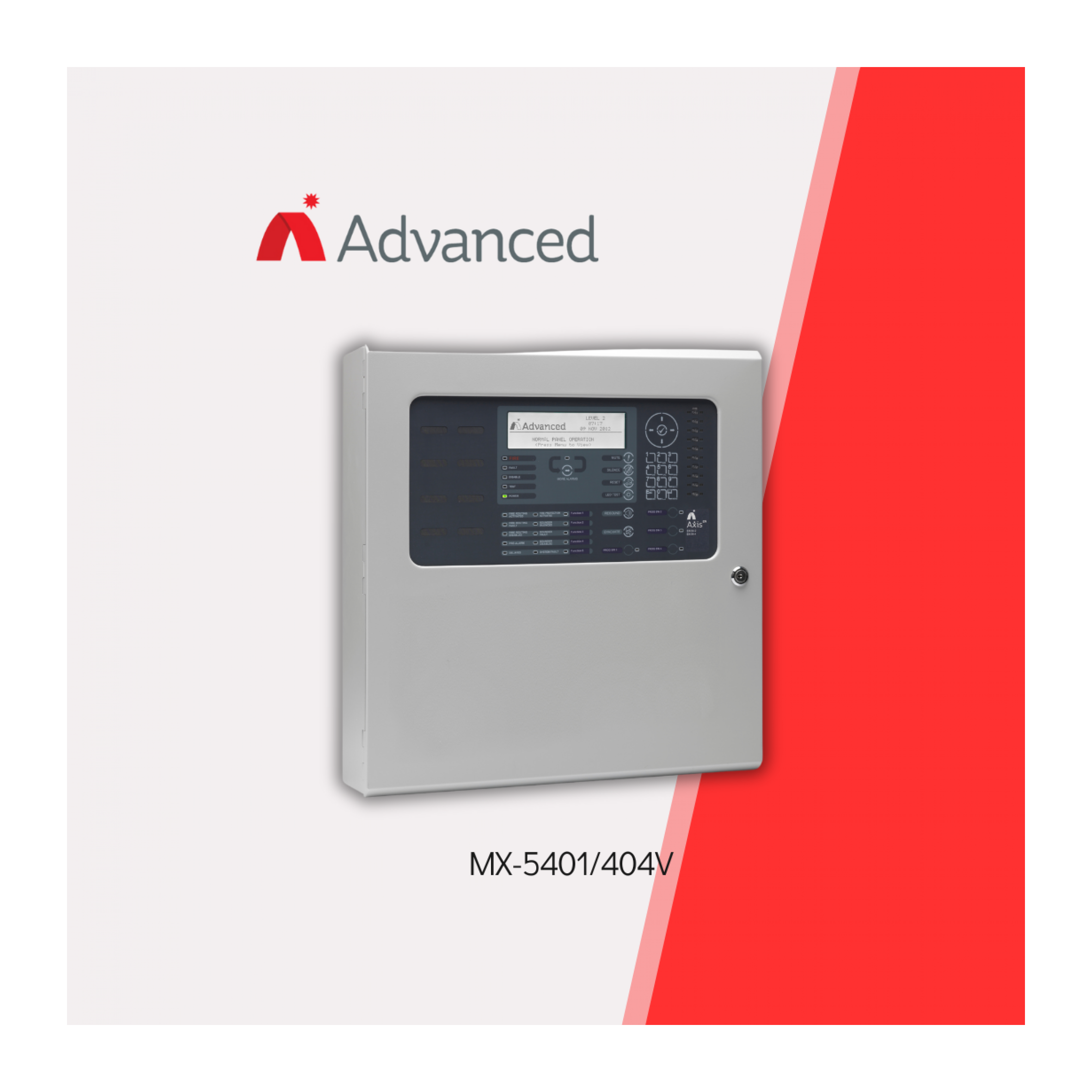

Model: MX-5401/404V
| SPECIFICATIONS SPECIFICATIONS | DESCRIPTION DESCRIPTION |
|---|---|
|
Base Technology |
|
|
LED Indicators |
|
|
Number of Fire Zones |
|
|
Loop Current |
|
|
Networking |
|
|
USB Interface |
|
