GRAPHIC DISPLAY MULTI-FUNCTION PROXIMITY CONTROLLER

IP-based controller supporting flush-mount and surface-mount installations and doorbell function; customizable panel design enhance overall building image. Support TCP/IP and RS485 interface, when main communication disconnects, deputy communication will work to maintain normal work and also supports dynamic graphic control and timely jump to emergency events.

  • FEATURES:

    • Double Relay

    • Door Bell

    • Complete Indicator

    • Energy Saver

    • Quality in Color

    • Suitable for Extended Function

    • Standalone / Networking is switchable during working

    • Built-in watchdog, real time clock, anti-vandalism switch, ingress protection, alarm setting, holiday edit, auto open door time zone, door group, door status DI, anti-pass back function and duress code & output

    • Dual communication interfaces: RS485 and Ethernet (10/100M Base T)

    • Two doors control: Two sets of push button and door status, relay output for lock and WG output for reader

    • In case Ethernet disconnects, controller is still able to identify UID and record event log

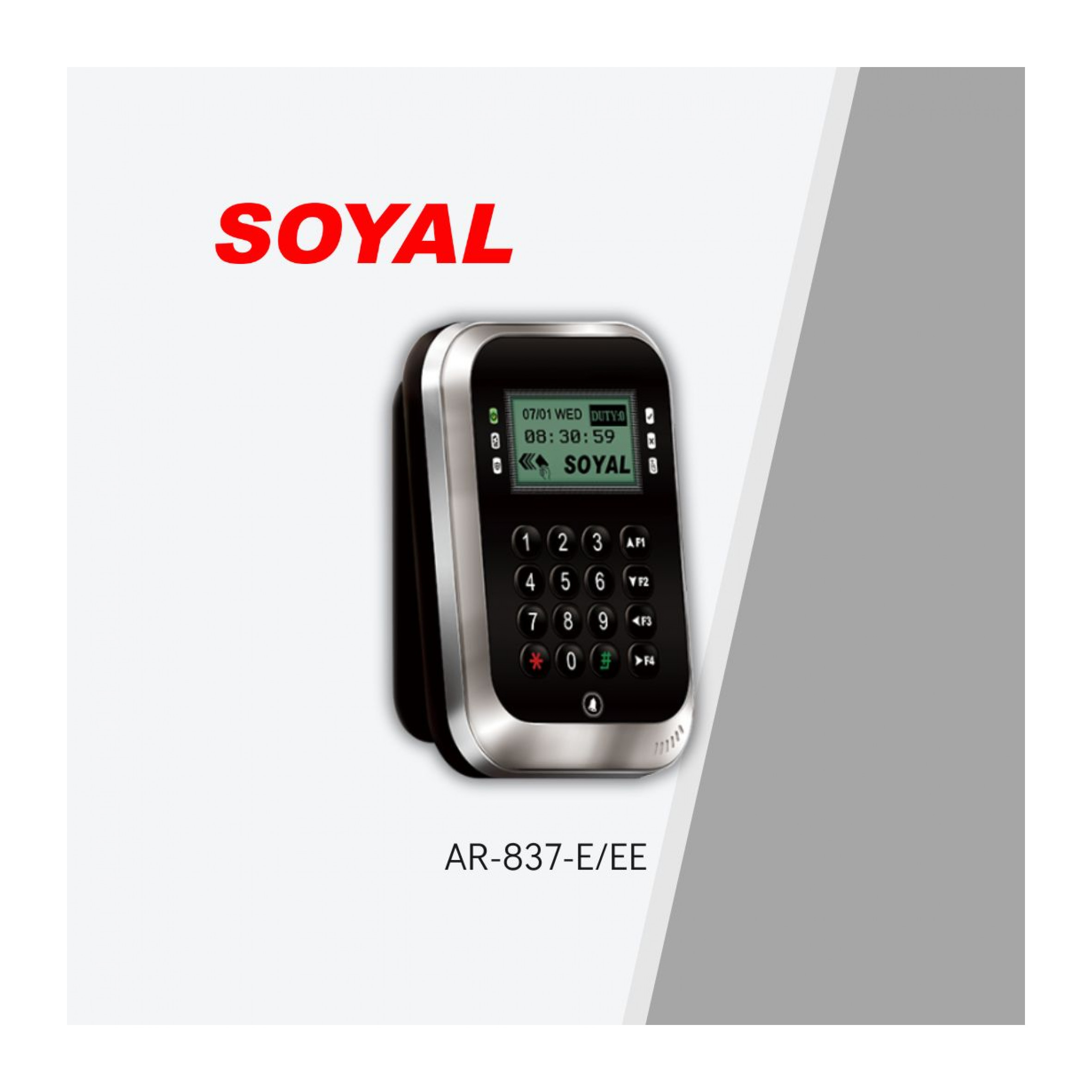

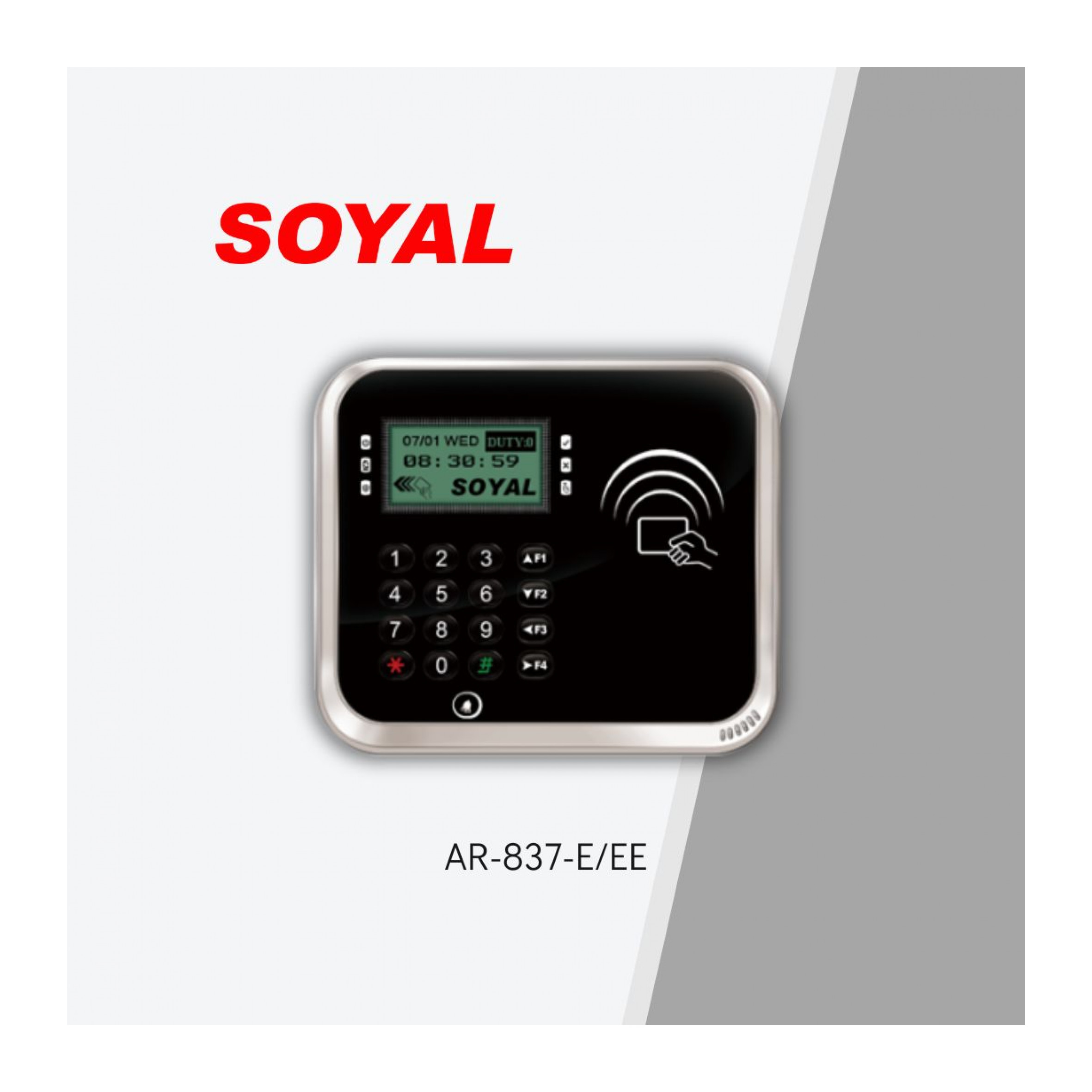

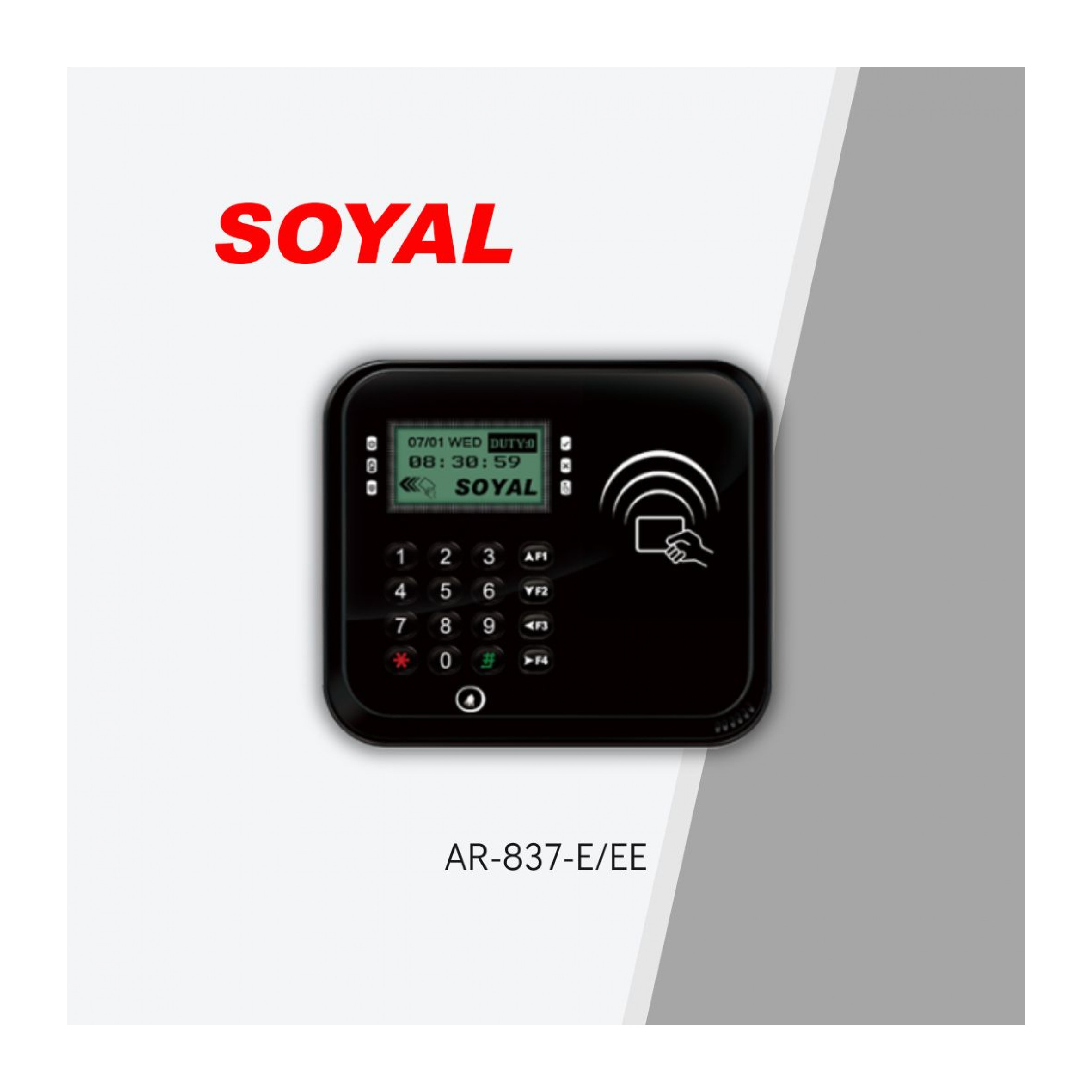

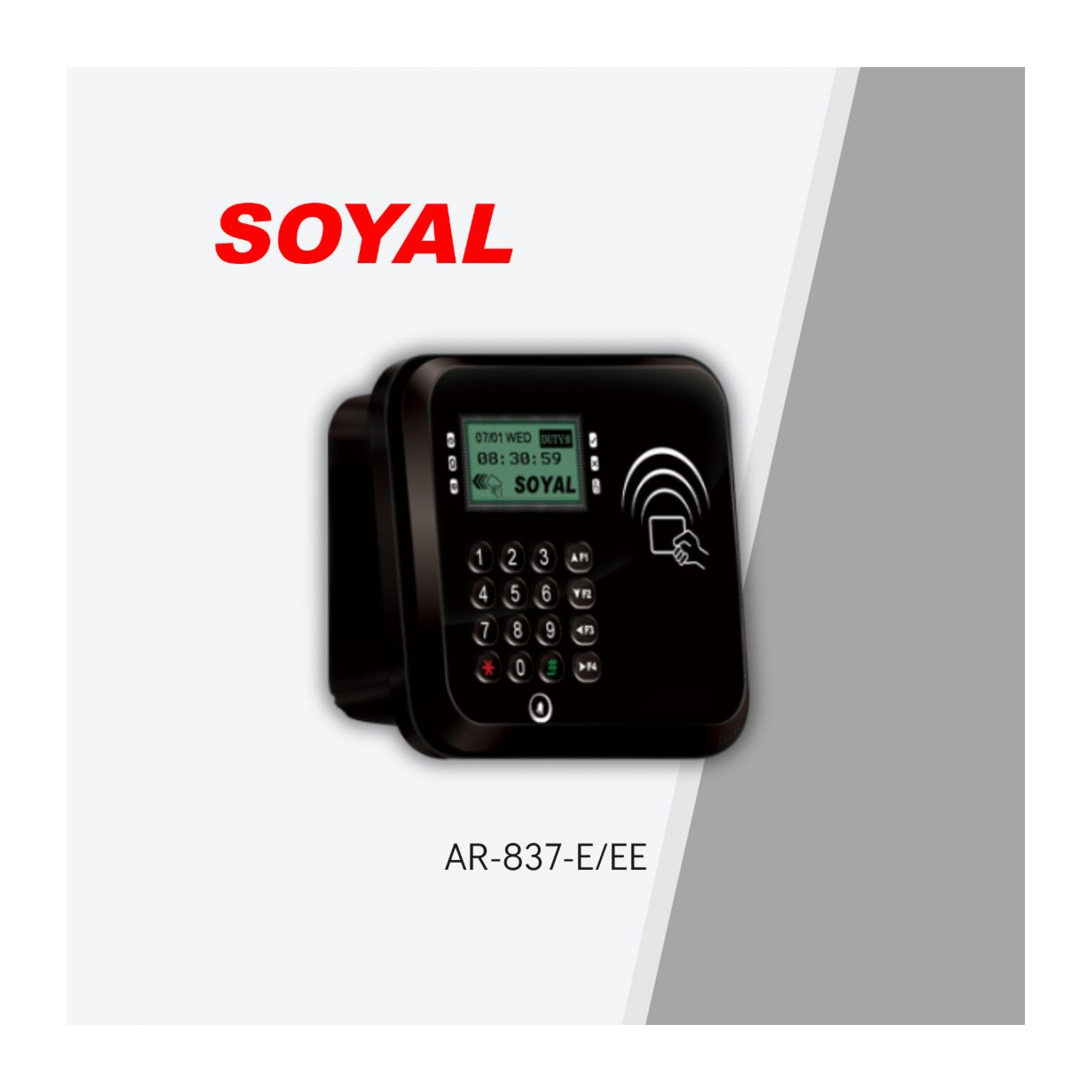

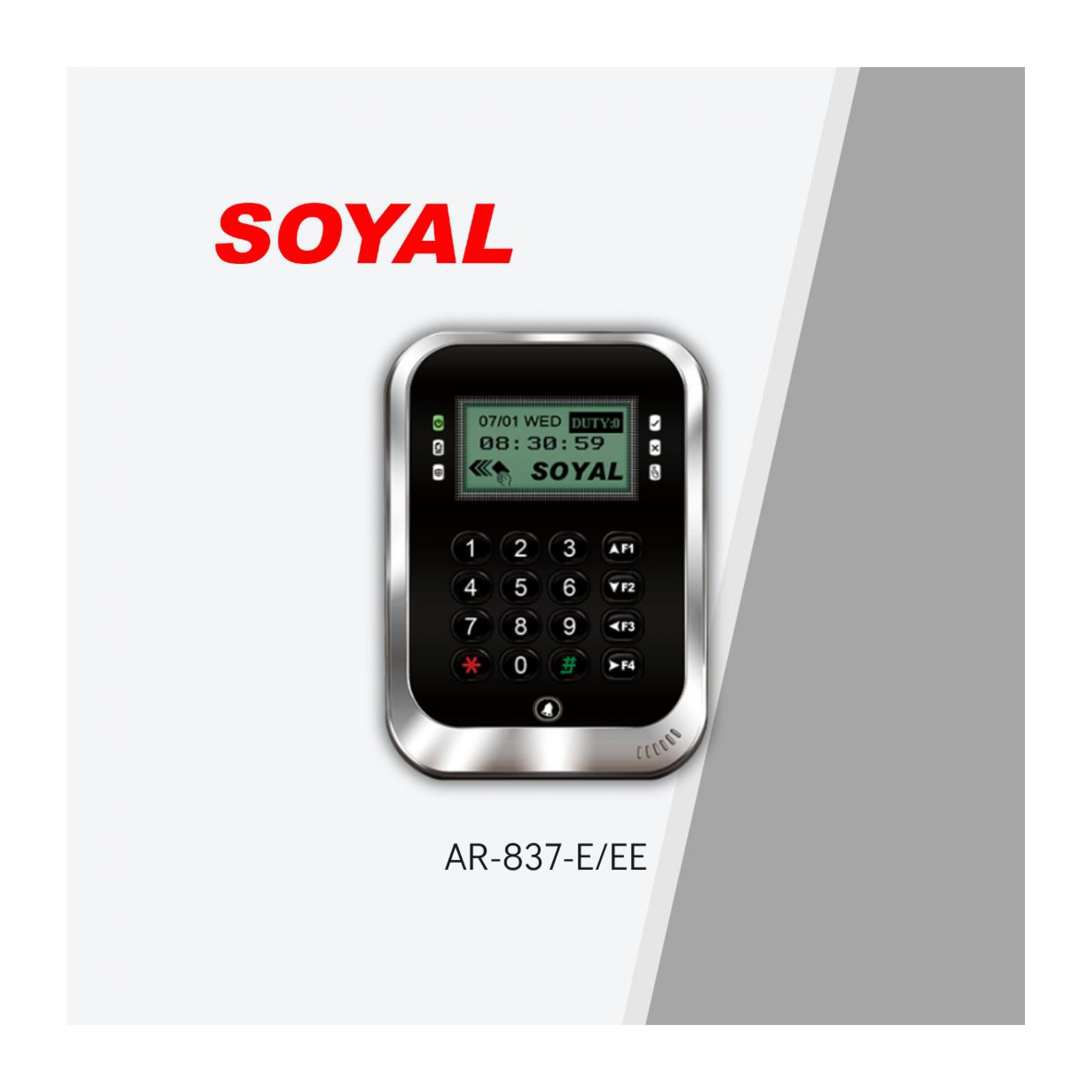

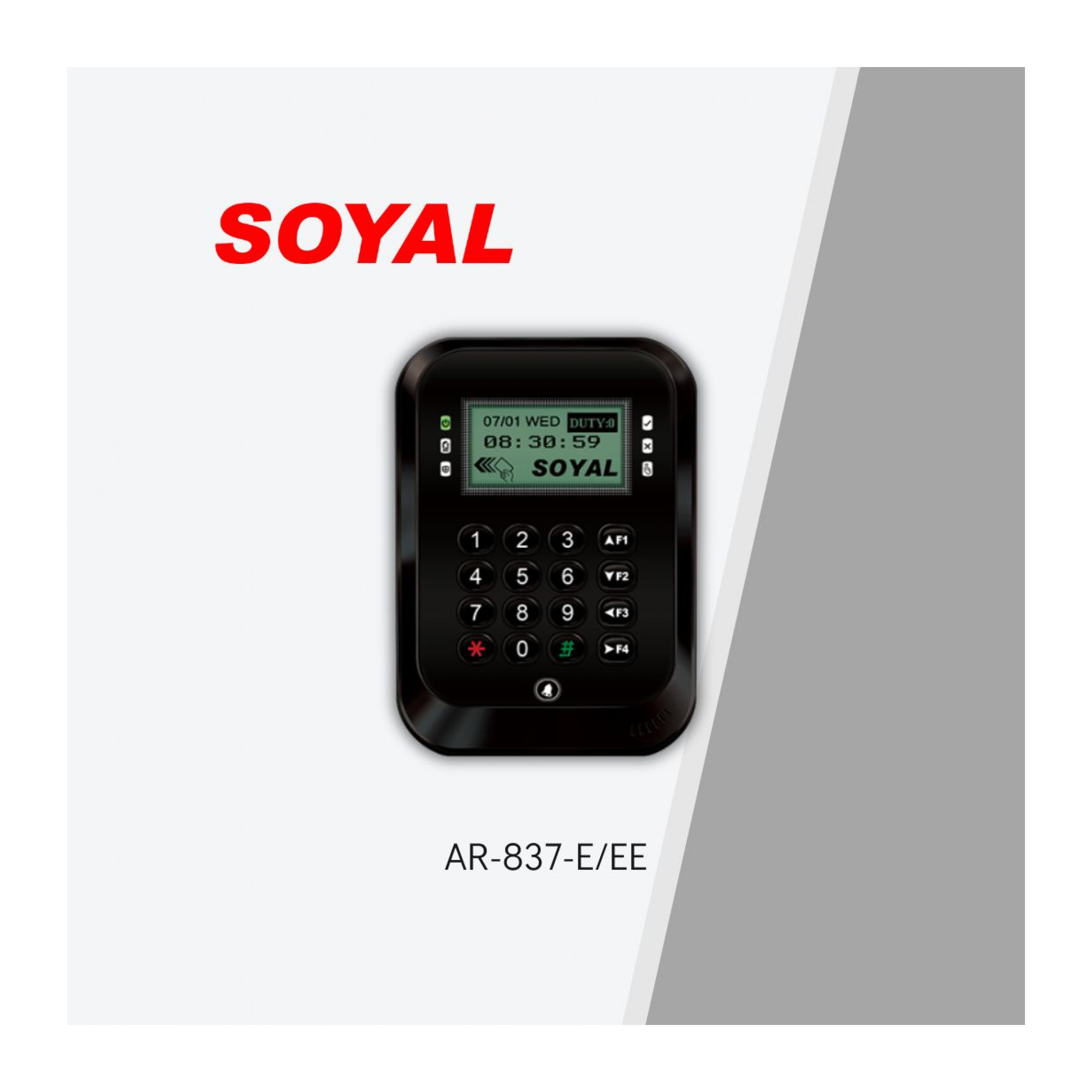

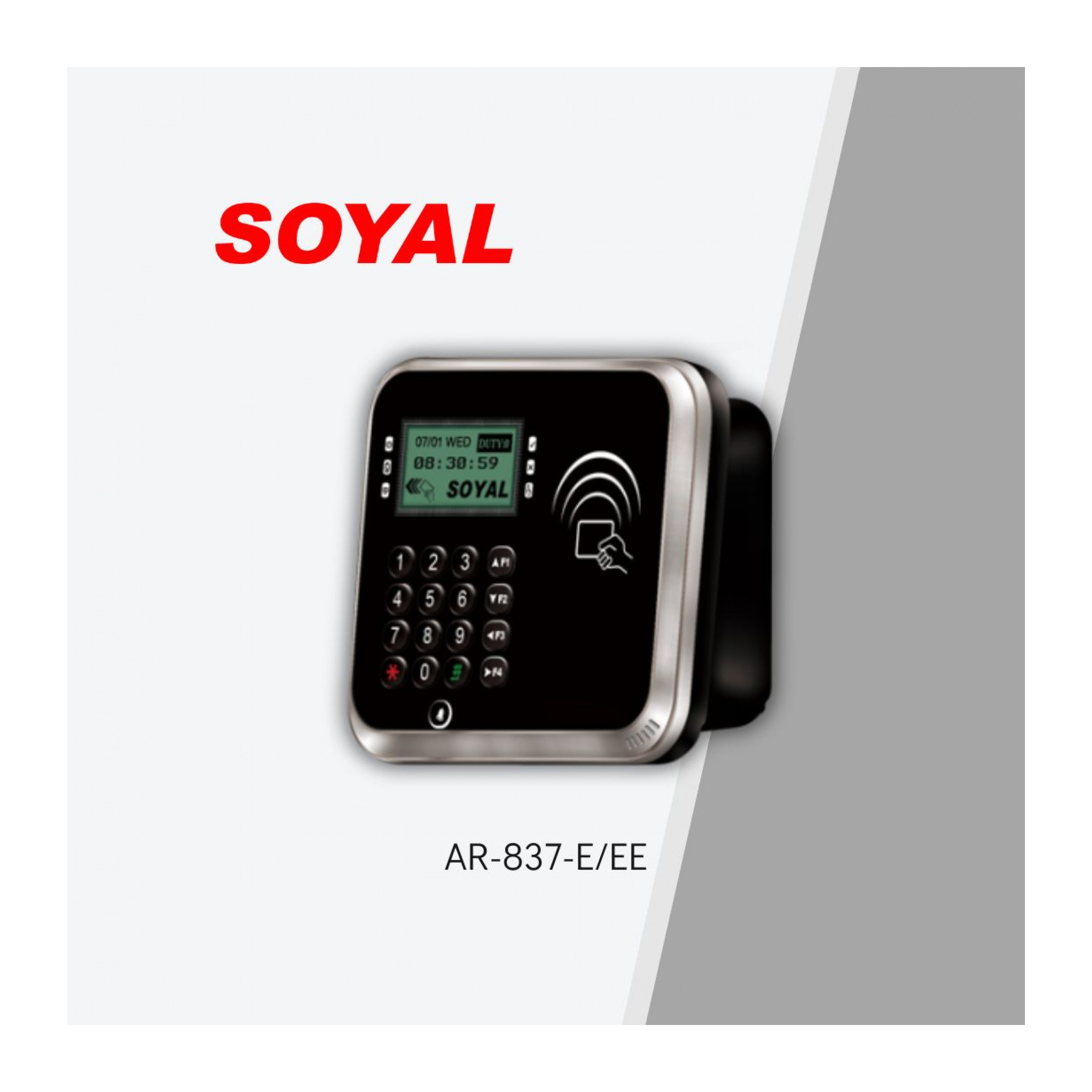

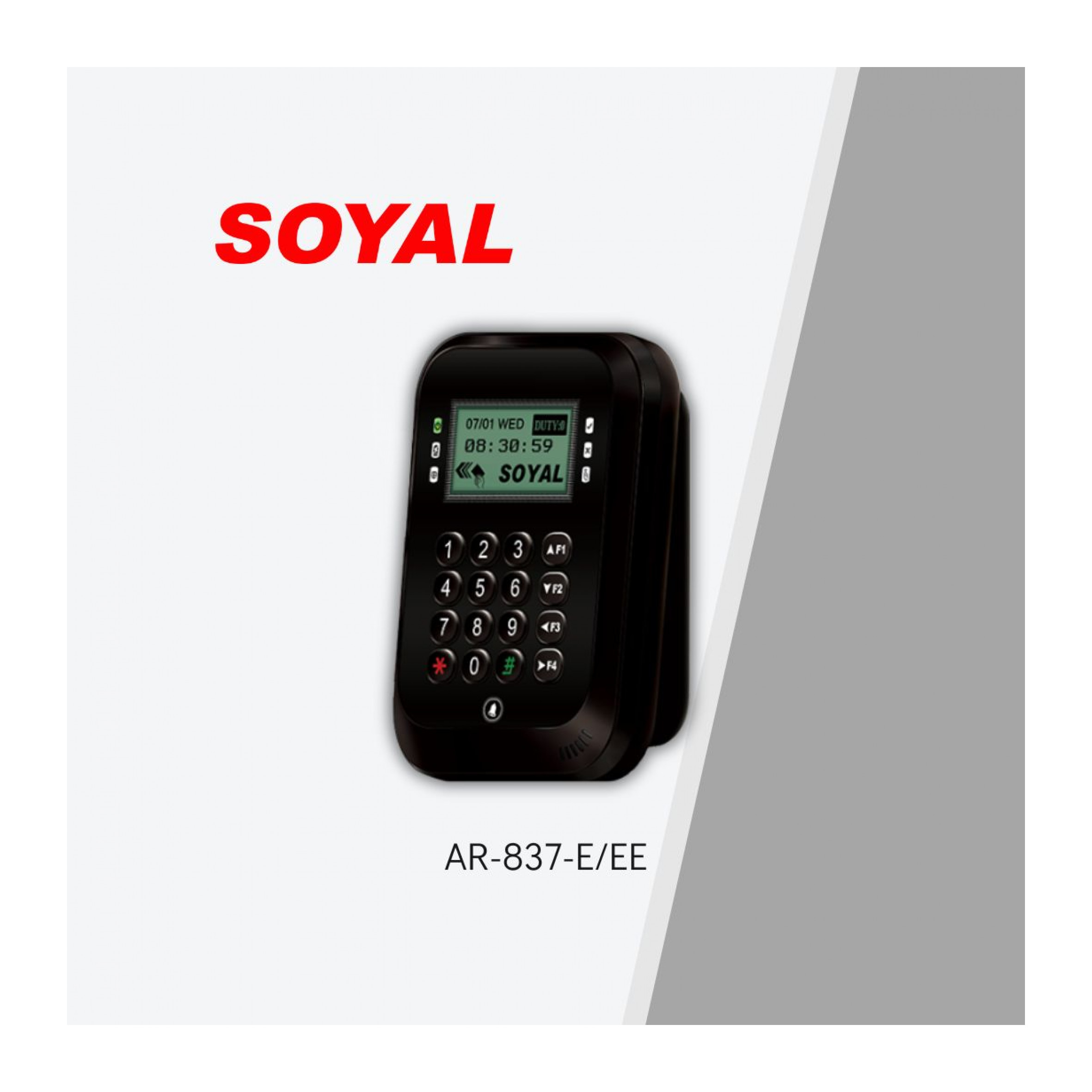

Model: AR-837-E/EE

Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Proximity Reader
  • 125 kHz : EM 13.56MHz:Mifare ISO14443A / NFC / DESFire / Felica / ISO15693

Controller
  • User Capacity :1,024 / 3,000/16,000 /32,000 / 65,000DI/DO: Engress/ Door State /Arming input / Arming Output / Alarm Output /Duress Output /Security Output /Door Bell

Push button
  • Touch-less Infrared / Relay Output (COM/N.O./N.C.)

Dimension (mm)
  • 128 (L) X94 (W) X40/25 (H)

Operating Temperature
  • -20。C to +65。C

Ingress Protection
  • IP65
DATA SHEET

AR-837-E/EE DATA SHEET
