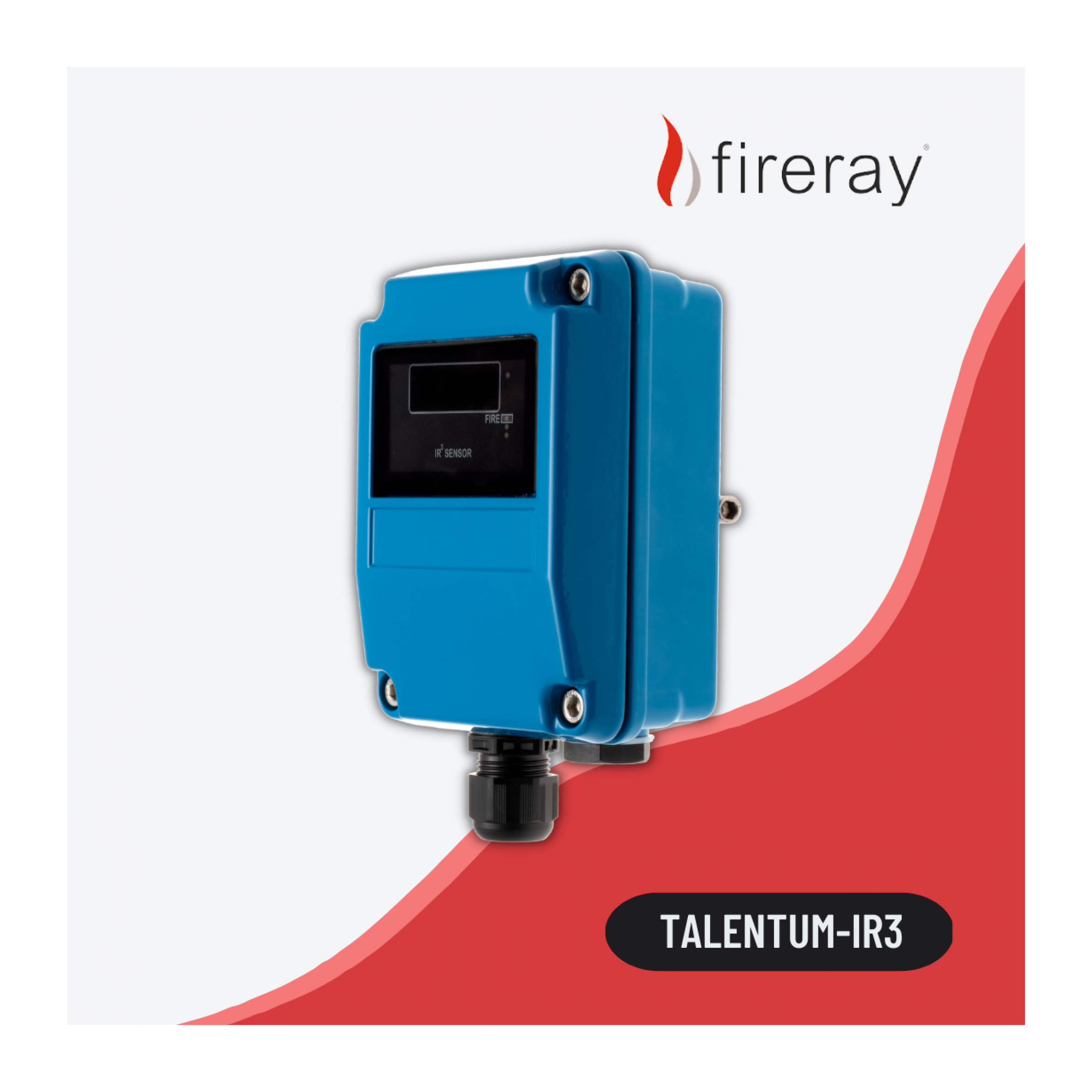

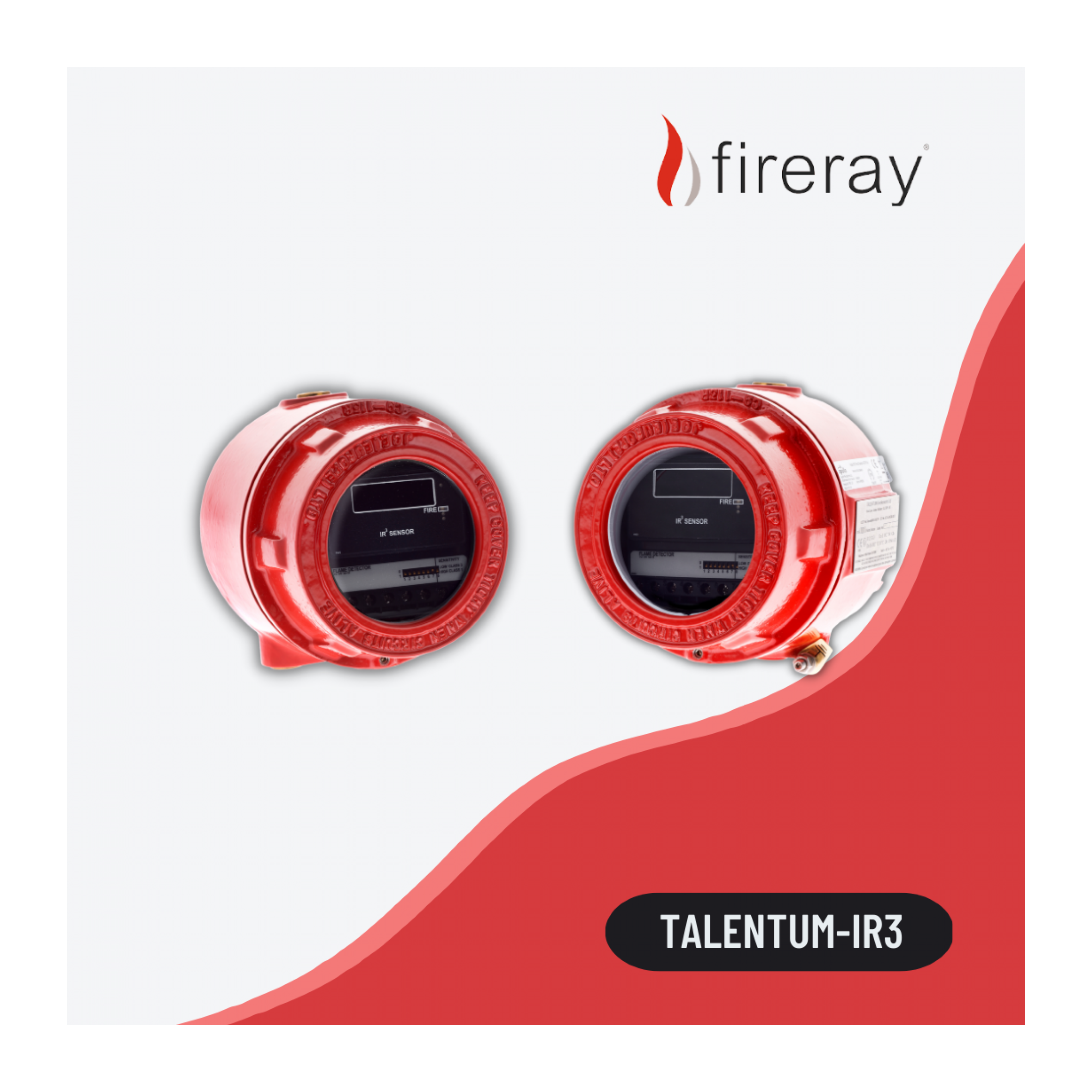

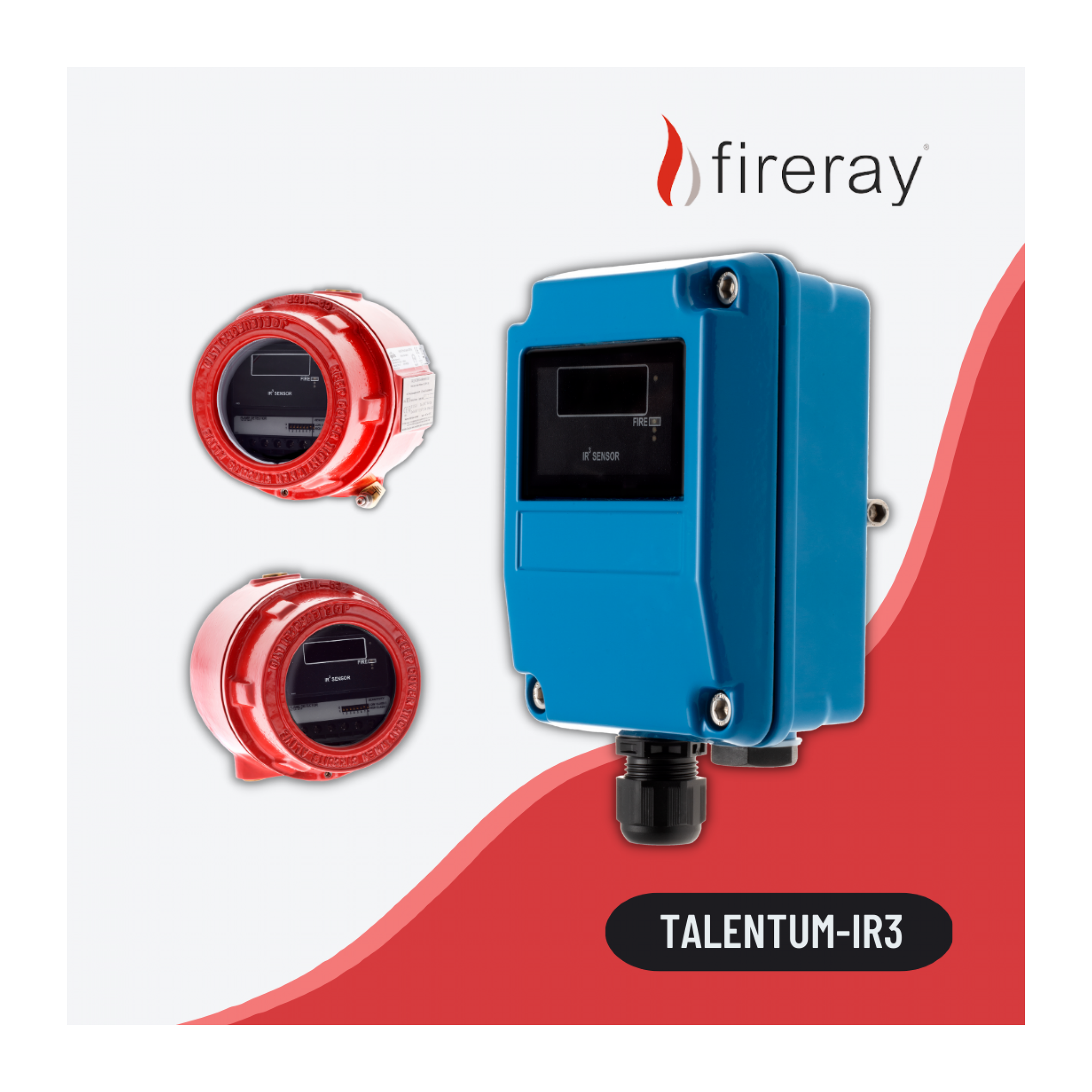

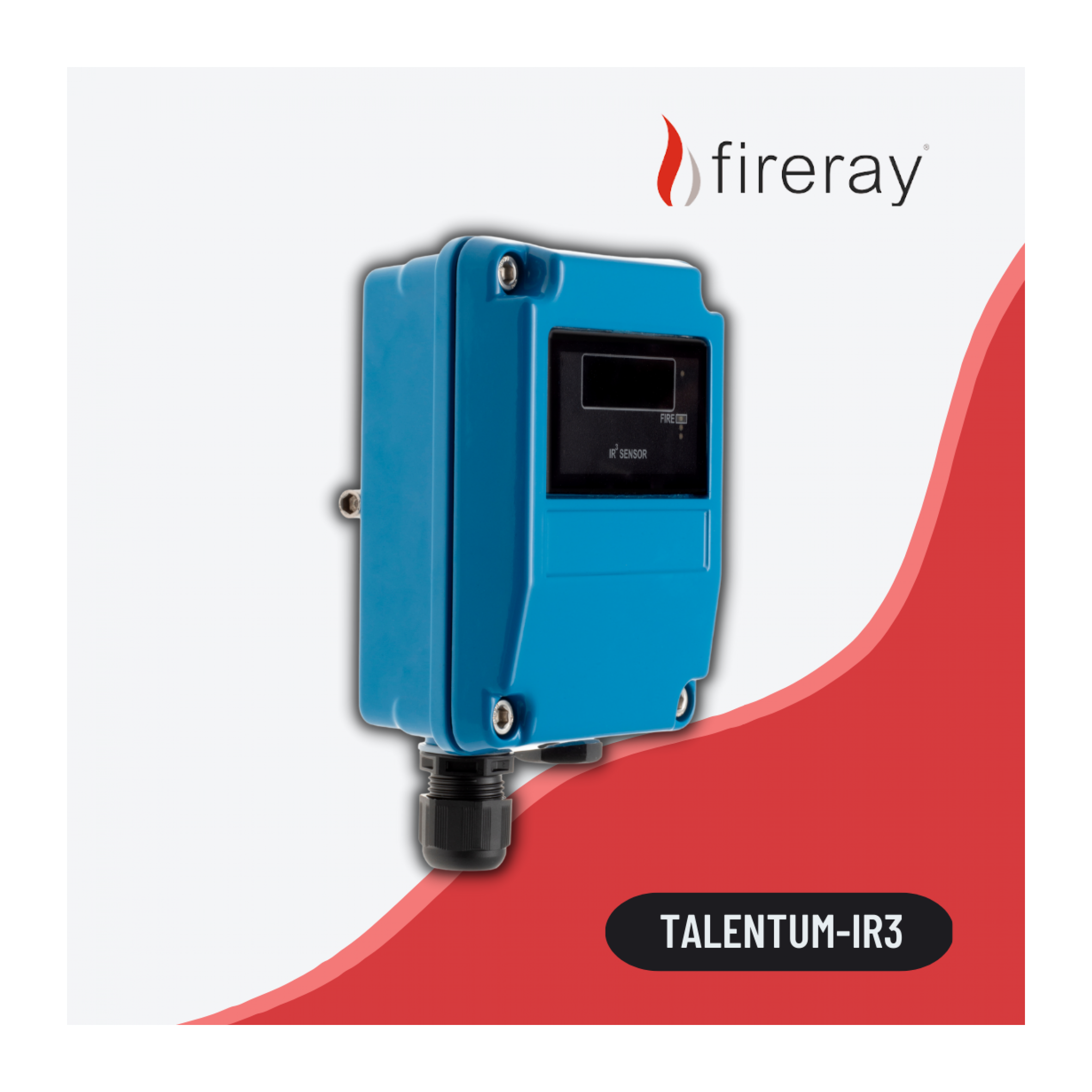

TALENTUM® TRIPLE IR (IR3) FLAME DETECTOR

These flame detectors give excellent immunity to false flame sources both indoors or out. They have internal self-test sources that check the detector’s operation when remotely instructed. They can operate on a conventional 2-wire (14-28 Vdc) fire systems or 4-20mA process control systems. Relay contacts are also available for Fire and Fault signals. The detectors’ operating modes can be user selected giving a choice of alarm currents, response times, latching or non-latching outputs and sensitivity. The detectors have a maximum ambient operating temperature of 55°C.

  • FEATURES:

    • Excellent immunity to false sources

    • Suitable for indoor and outdoor areas

    • Detects invisible flames from fuels such as Hydrogen and other inorganic fuels

    • Selectable response speed

    • Optical self-test

    • Low power consumption

    • Approved to EN54-10:2002

  • APPLICATIONS:

    • Coal Handling

    • Pharmaceuticals

    • Printing

    • Spray Booths

    • Nuclear Industry

    • Waste Tips

    • Storage Tanks

    • Tunnels

Model: 16589-20

Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Housing Material
  • Die Cast Zinc Alloy (ZA12)

Housing Color
  • Blue

Dimensions
  • 5.91"H x 5.75"W x 5.39"D (142(H) x 108(W) x 82(D) mm)

Weight
  • 5.51lbs (2kg)

Cable Gland Entries
  • 3 x 0.79" (2 x 20 mm)

Wiring
  • 1.0 to 4.0mm²

Supply Voltage
  • 14 to 30Vdc

Quiescent Current
  • 8mA, RL2 energized
  • 4mA, current loop, RL2 off
  • 3mA, RL2 off

Alarm Current
  • 28mA, RL1 & RL2 energized
  • 20mA, current loop, RL1 & 2 off
  • 9mA, RL1 energized

Power Up Time
  • 2 seconds max.

Test Signal Voltage
  • 14 to 30Vdc

Relay Outputs
  • Normally Open or Normally Closed
  • Programmable: Latching or Non-latching
  • Ratings: Current: 1.0A Max.
  • Voltage: 50Vdc Max
  • Power: 30W Max. (Note: Resistive Loads Only)
Brochure

TALENTUM® TRIPLE IR (IR3) FLAME DETECTOR DATA SHEET

16589-20
