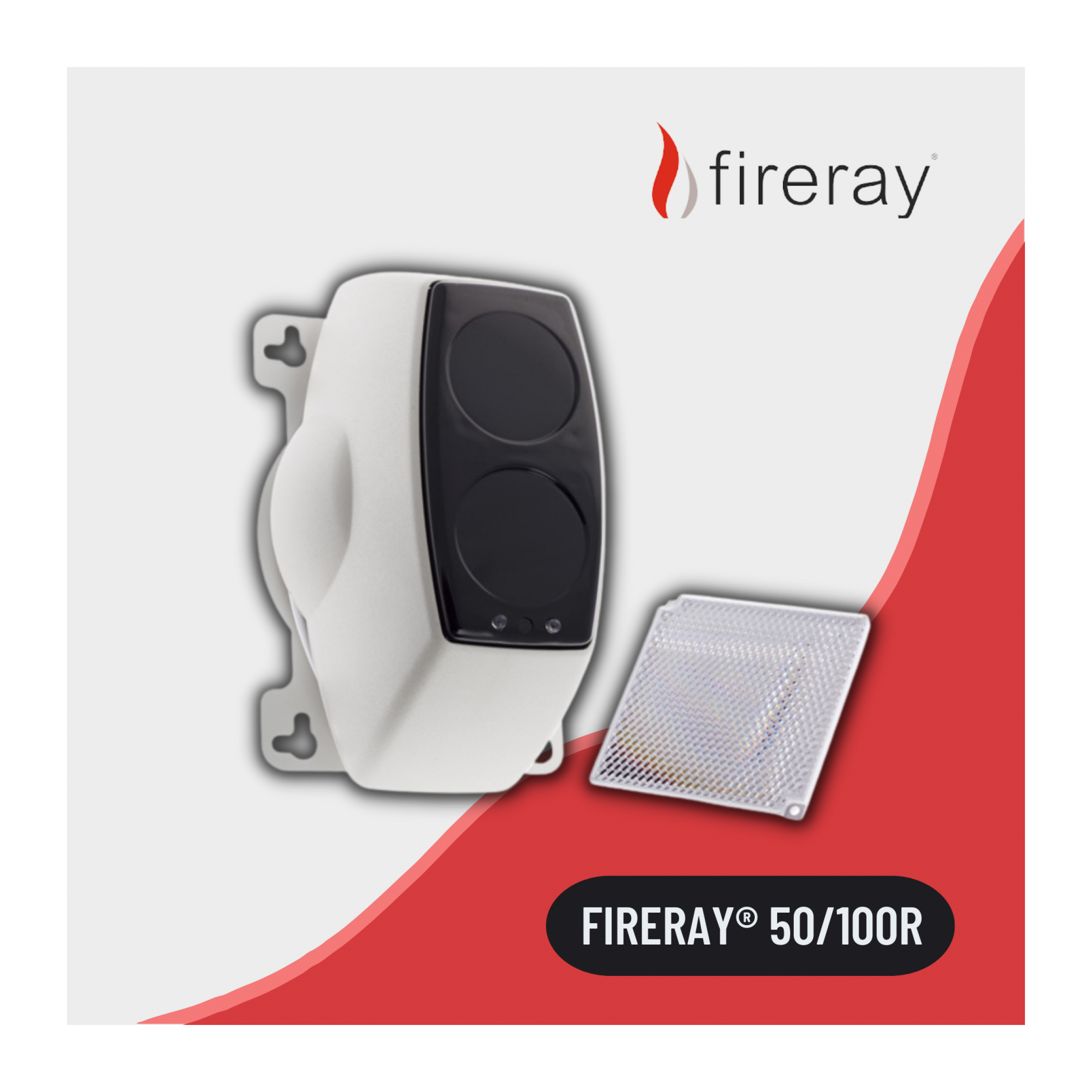

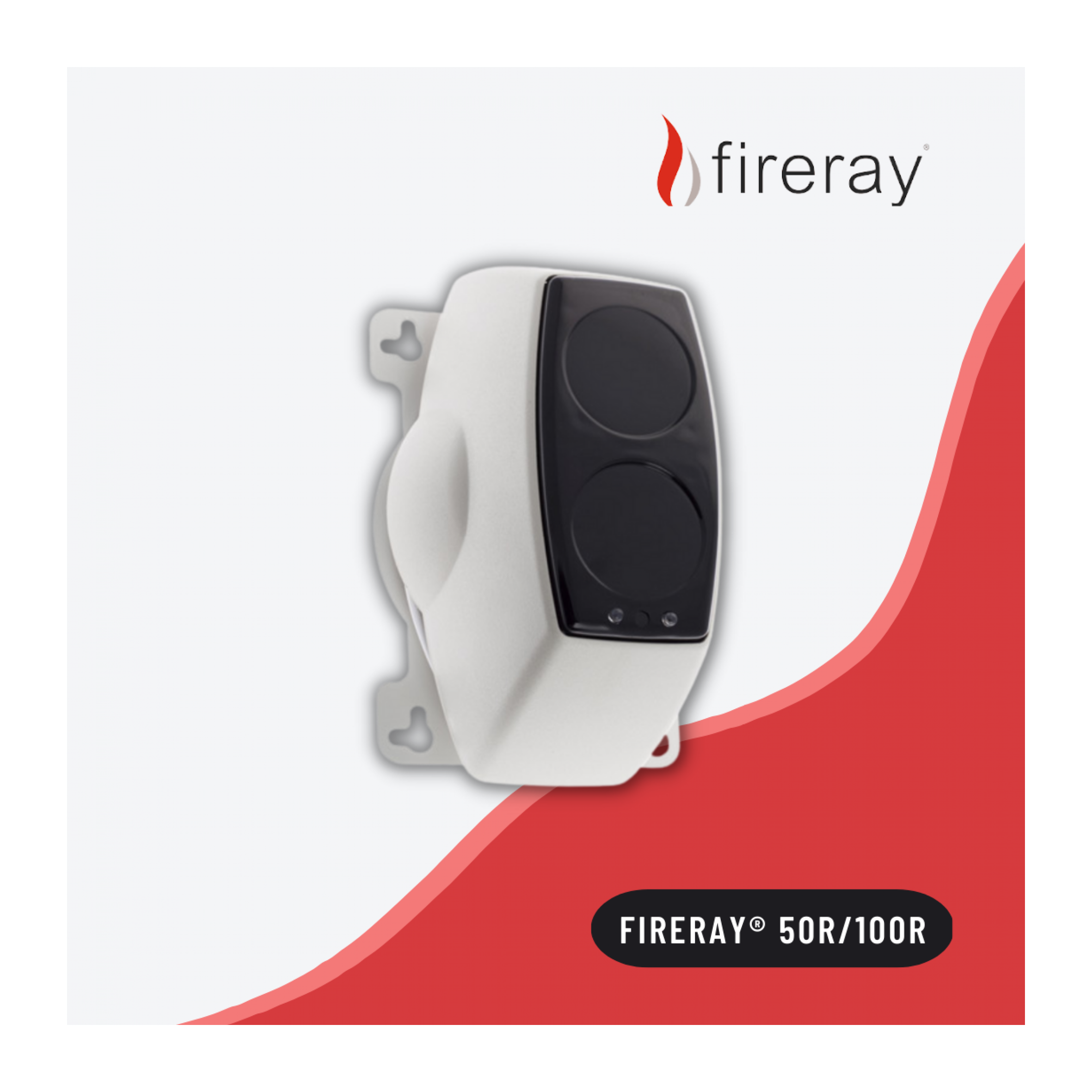

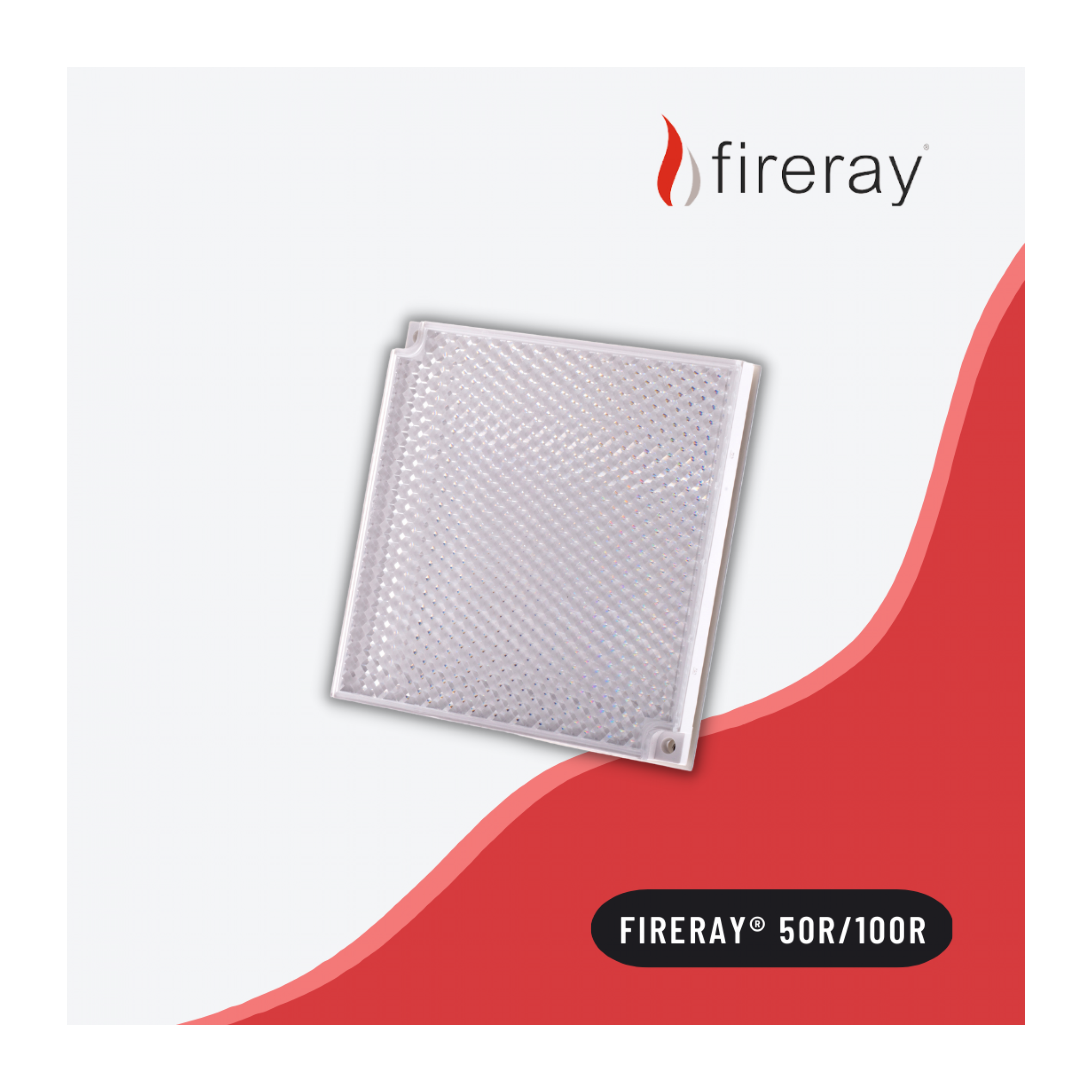

The Fireray® 50R/100R series of reflective infrared optical beam smoke detectors are comprised of a single unit incorporating an infrared Transmitter and Receiver. The signal is reflected by a prism and analyzed for smoke presence. The system is designed to be mounted so that the beam will project between 0.3 and 0.6 meters below and parallel to the ceiling. Lateral detection may be up to 7.5 meters either side of the beam.
-
FEATURES:
-
Single Compact Housing
-
Area coverage 50 meter or 100 meter model available
-
12-24 Vdc Operation
-
Low current Consumption
-
Robust Construction
-
Calibrated obscuration test filter included
-
Easy set up and alignment
-
3 selectable alarm thresholds: 25%, 35% or 50%
-
Microprocessor controlled
-
Automatic gain control
-
Separate alarm and trouble contacts
-
Conforms to: BS5839 Part 5 and EN54 part 12, UL and VdS
-
-
OPERATIONAL SPECIFICATIONS:
-
Latching / Non latching alarm
-
Fault condition (Trouble)
-
90% or more obscuration (Trouble)
-
Automatic gain control
-
Improper set up alignment (Trouble)
-
Microprocessor controlled
-
3 Sensitivity selections
-
Indicators - Alarm Red LED / Trouble Amber LED
-
.png)
.png)
Model: 50RU/100R
| SPECIFICATIONS SPECIFICATIONS | DESCRIPTION DESCRIPTION |
|---|---|
|
Primary Input Power |
|
|
Alarm Current |
|
|
Relay Contacts |
|
|
Reset Time |
|
|
Start Up Time |
|
|
Optical Wavelength |
|
|
Sensitivity |
|
|
Temperature Rating |
|
|
Relative Humidity |
|
|
Range |
|
|
Housing |
|
|
IP Rating |
|
|
Weigh |
|
|
Dimensions (inches): |
|
