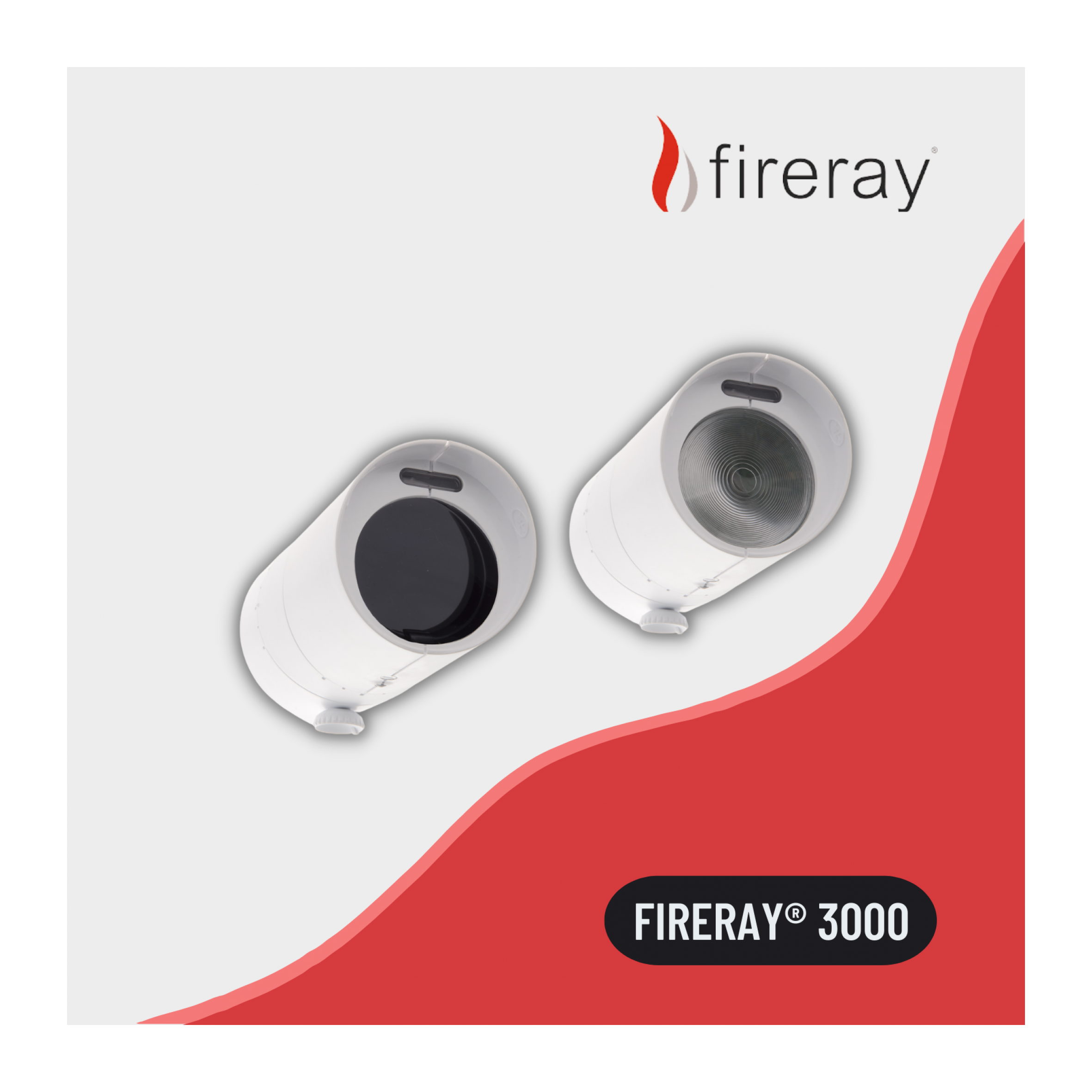

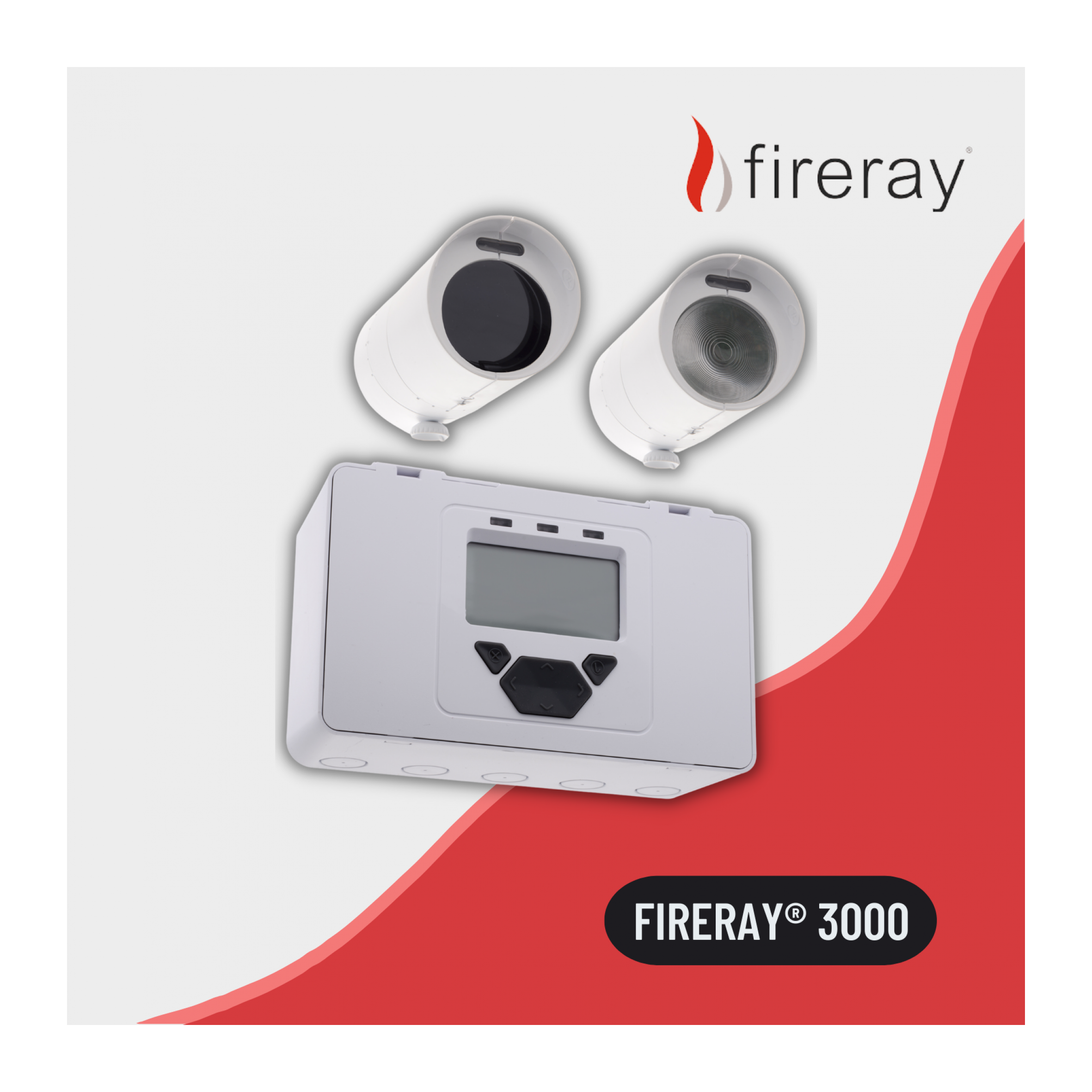

The Fireray® 3000 is ideal for applications where line of sight for the IR (infra-red) detection path is narrow and where the building structure uses reflective surfaces. It has also been designed to be aesthetically pleasing and thus can equally suit modern architectural buildings as well as heritage sites, particularly where ornate ceilings exist. The Fireray® 3000 optical beam smoke detectors, together with a battery backed power supply, can be connected to a zone of a conventional fire alarm control panel or interfaced to an analogue-addressable system via an addressable input module. The Fireray® 3000 has been designed so that it can be installed by one operator with its laser assisted alignment methods combined with easy-to-use alignment LED’s offering visual feedback. Integrated laser alignment aid can be activated at the controller or at the Receiver head.

    • Allows for 2 Detectors per System Controller

    • Range 5 to 120 meters, configurable per set of Detectors

    • Integral Laser Alignment in Receiver

    • 2-wire Interface between Controller and Receiver

    • Separate Fire and Fault Relays per Detector

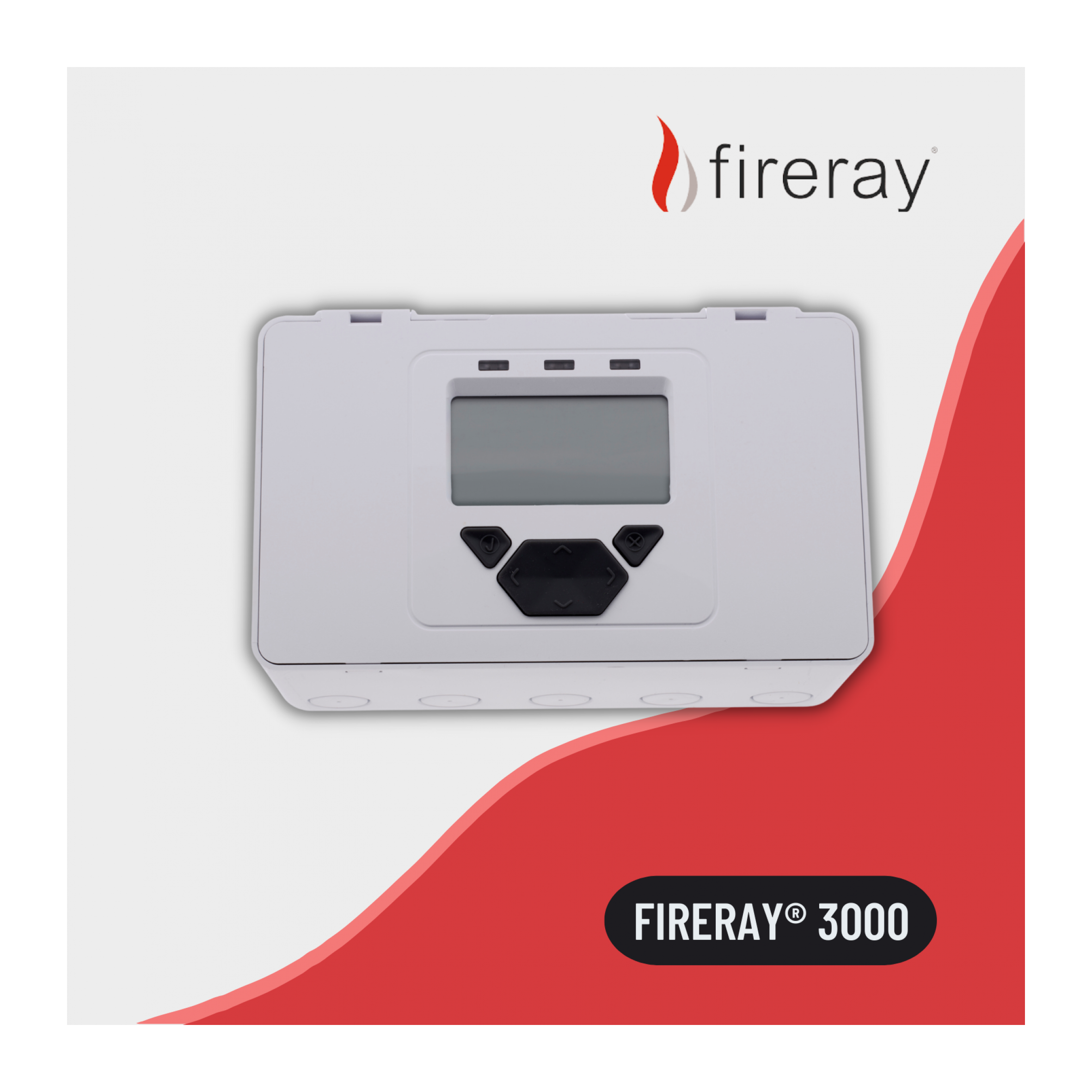

    • Low Level Controller with LCD display

    • Programmable Sensitivity and Fire/Fault delay

    • Automatic Gain Control (AGC) for drift compensation

    • First Fix concept for Transmitter, Receiver and Controller

    • Multiple cable gland knockouts for ease of wiring

    • Transmitter can be powered from Controller

    • Patented Light Cancellation Technology (LCT) cancels unwanted light, including sunlight, sodium lamps and fluorescent lighting.

Model: 3000-103

Share on :   Share on Facebook Share on Facebook

Operating Range

  • 16.5 ft 393 ft (5 to 120m)

Operating Voltage Range

  • 12 to 36V DC ±10%

Operating Controller Current (with 1 or 2 Receivers)

  • 14mA (constant)

Operating Transmitter Current

  • 8mA (per Transmitter)

Power Down Reset Time

  • >20 seconds

Fire and Fault Relay Contacts

  • Resistive VFCO 2A @ 30 Volts DC

Operating Temperature (non-condensing)

  • -4°F to +131°F (UL : -20°C to +55°C)

Optical Wavelength

  • 850nm

LED Indications

  • Control: Unit - Red = Fire Amber = Fault Green = System OK
  • Receiver: Alignment LEDs for single person alignment

IP Rating

  • IP54

Relative Humidity (non-condensing)

  • 93%

Housing Material (Transmitter/Receiver/Controller)

  • UL94 V2 PC

Cabling between each Receiver and Controller

  • 18-14 AWG 1-Pair Twisted, Jacketed

Maximum Cable Distance between Receiver & Controller

  • 330 Feet (100m)

Dimensions & Weight

  • Control Unit: 7.99 x 4.88 x 2.81in (W x H x D) 1.34lbs
  • Transmitter & Receiver: 3.07 x 3.03 x 6.33in (W x H x D) 0.456lbs


  • UL - S3417
