FLUSH-MOUNT BACKLIGHT MULTI-FUNCTION CONTROLLER

Elegant design with LED frame and backlight touch keypad, supporting multiple control mode design. Equipped with IP 65, tight protection against dust and water resistant. Built-in hardware watchdog, real time clock, arming, force alarm, door close delay alarm, doorbell and duress code & output.

  • FEATURES:

    • Total Solution with Aesthetic Design

    • Illuminated Touch Panel

    • Black or White

    • Long Sensing Distance

    • Ultra-Thin

    • Full Frame LED

    • Can be an encrypted RS485 reader if utilized with other brand's controller

    • Silent operation mode: push button mute and all mute Auto-relock for anti-trailing and sneaking

    • Multiple access mode: card only, card or password, card and password

    • Access control, lift control, time attendance, payroll and SCADA: graphic monitoring & remote control function

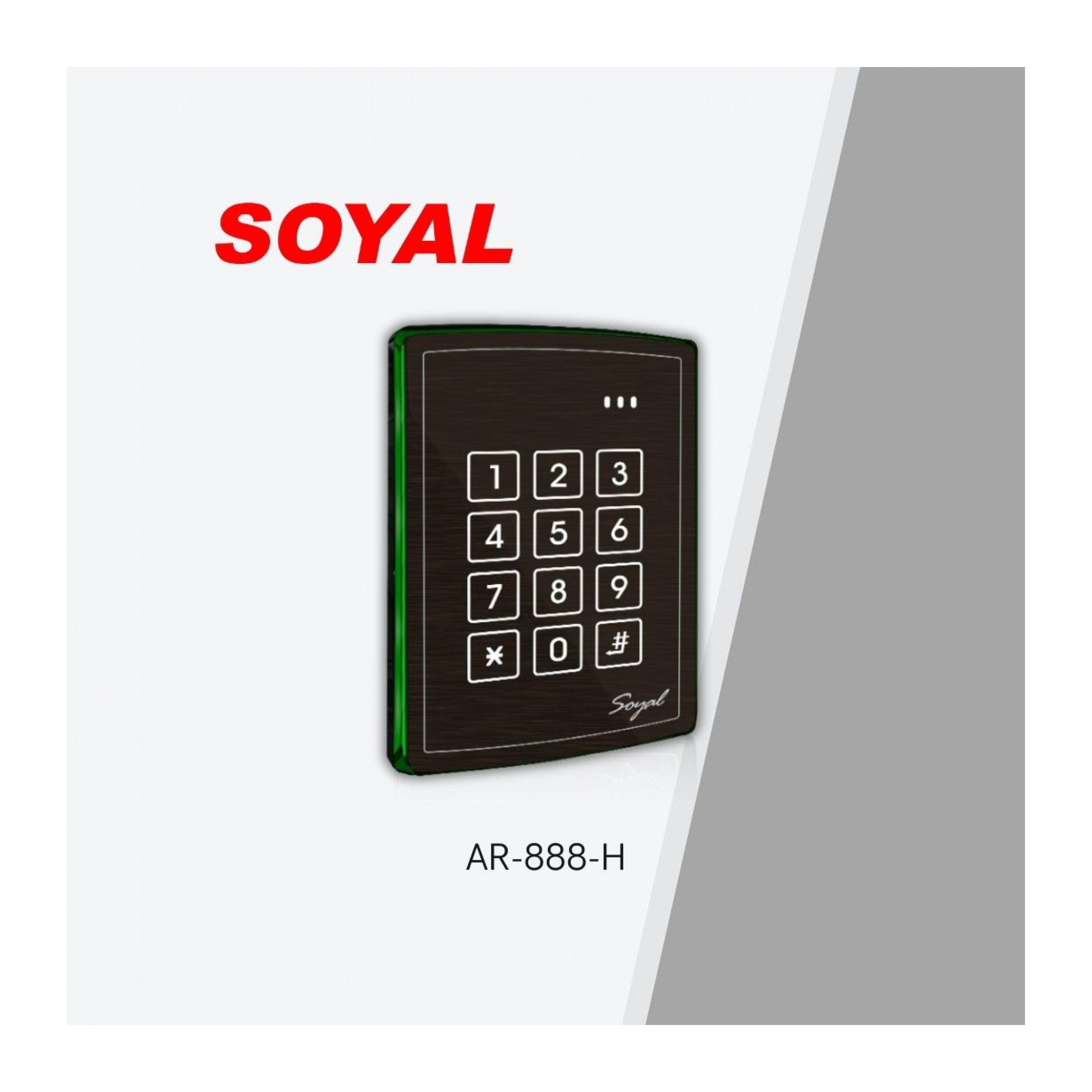

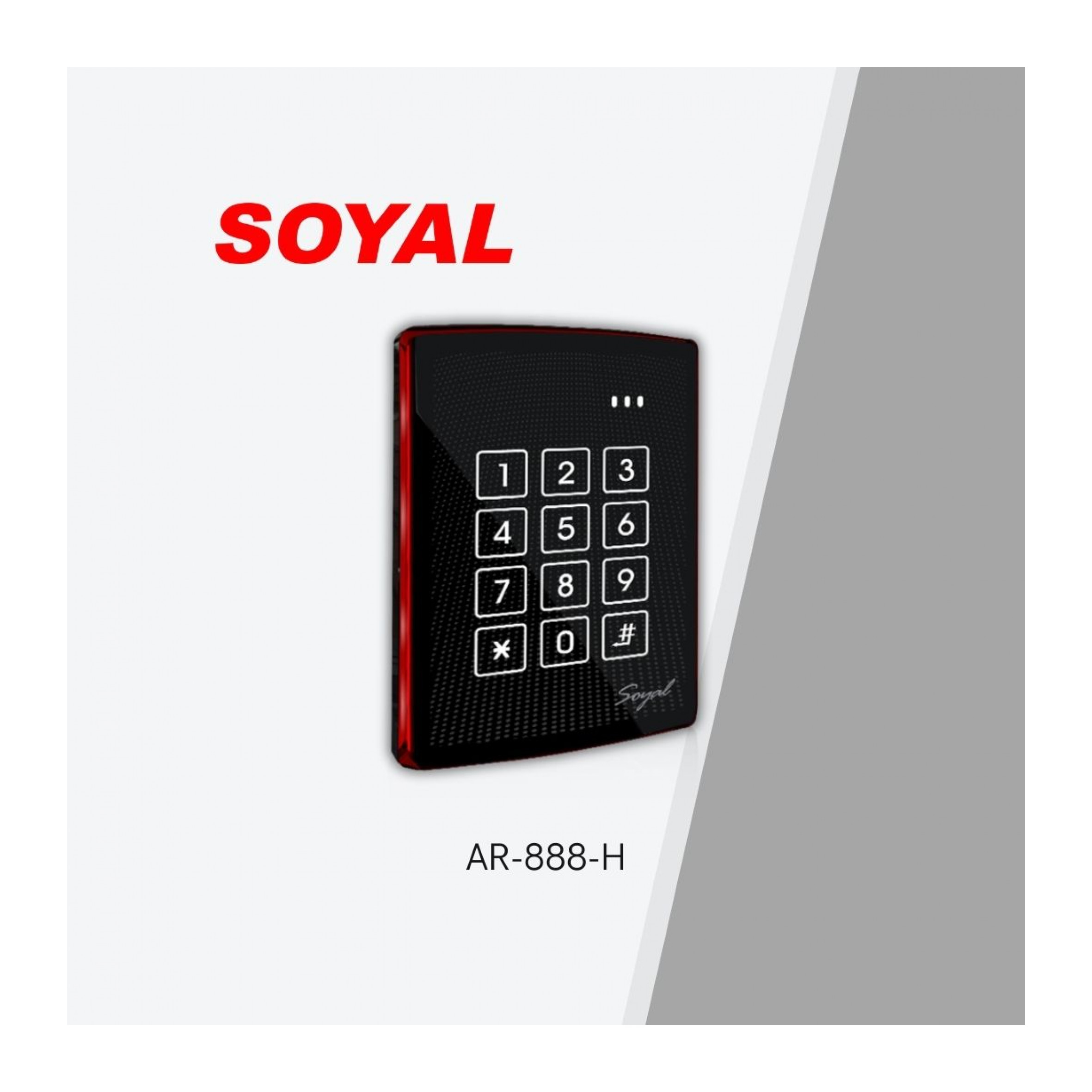

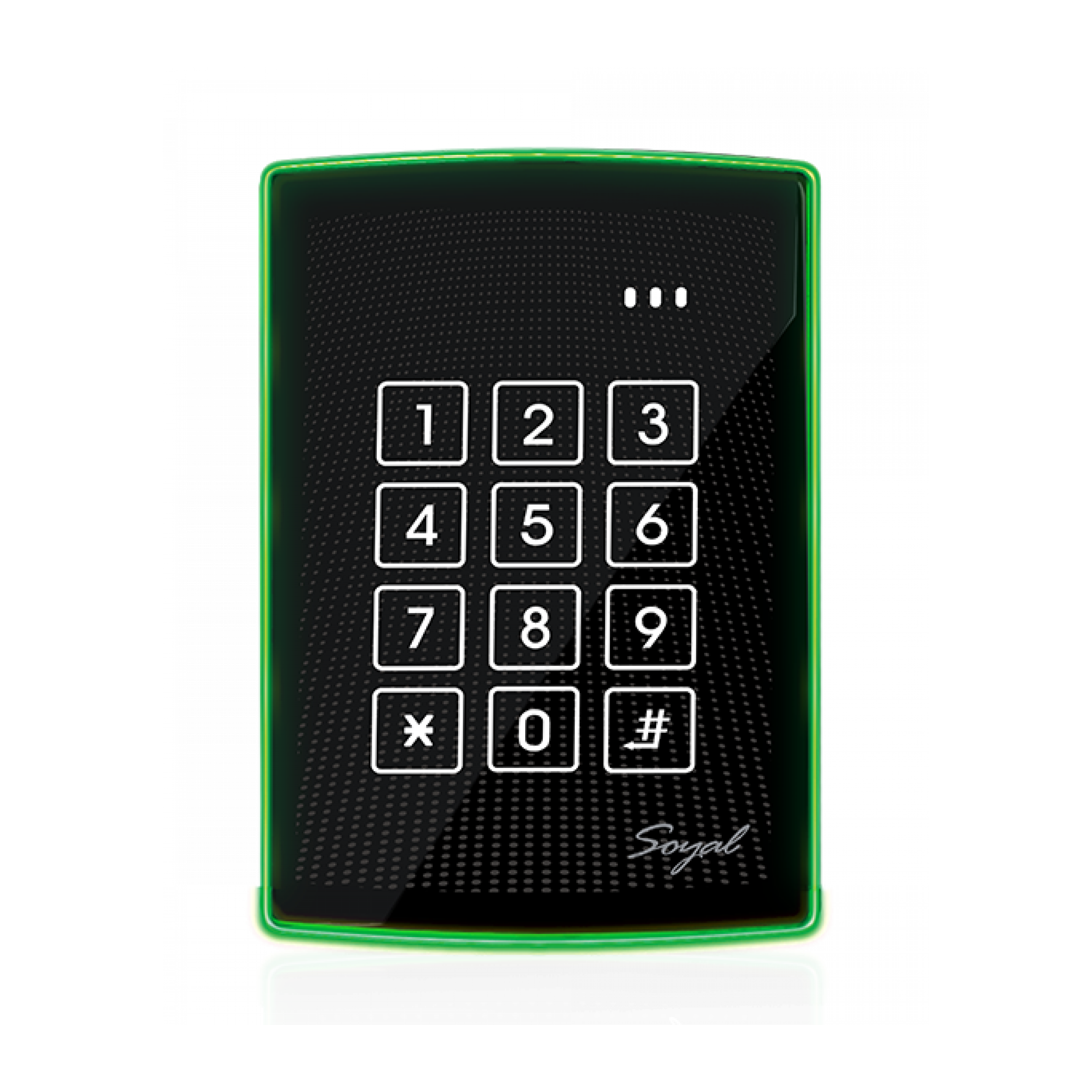

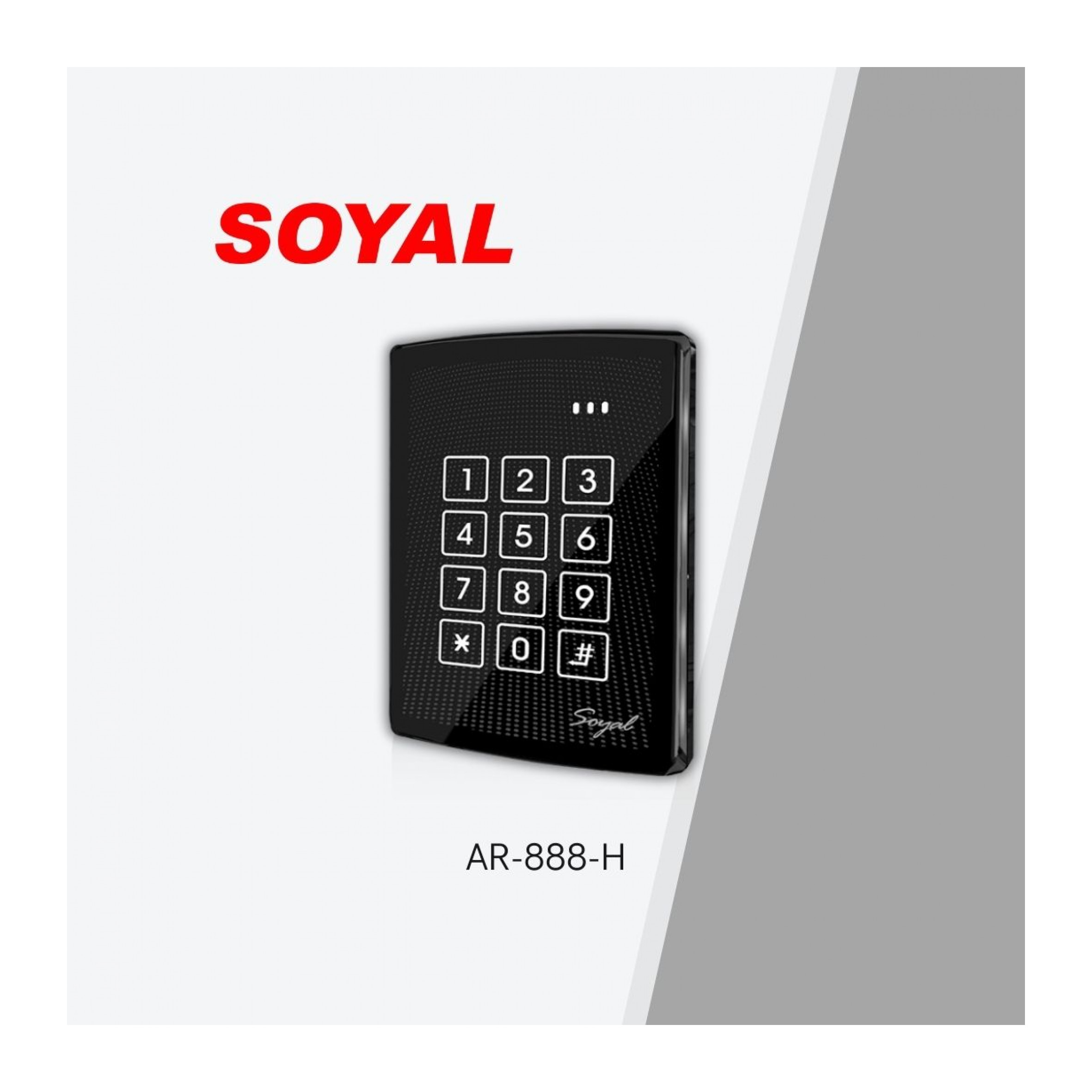

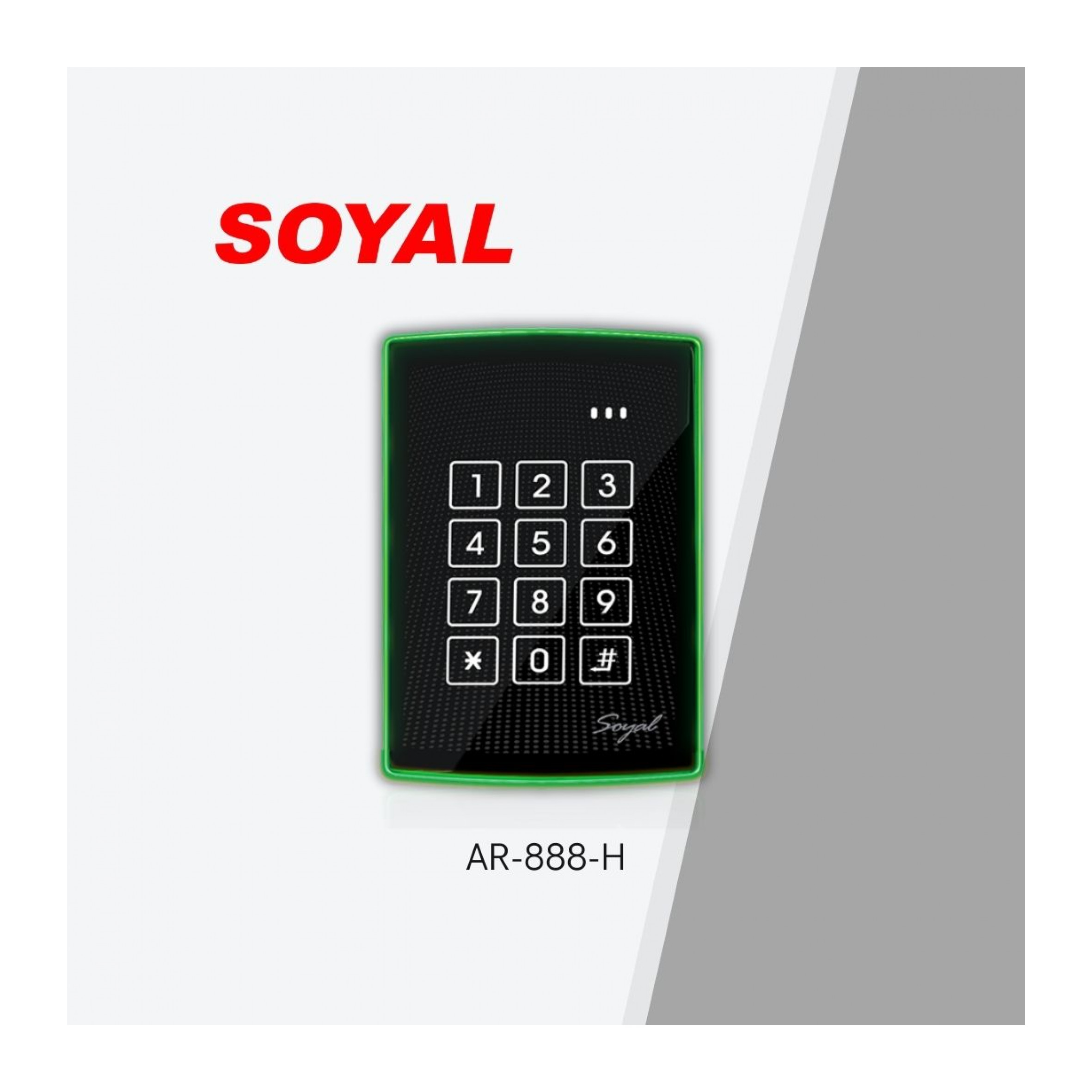

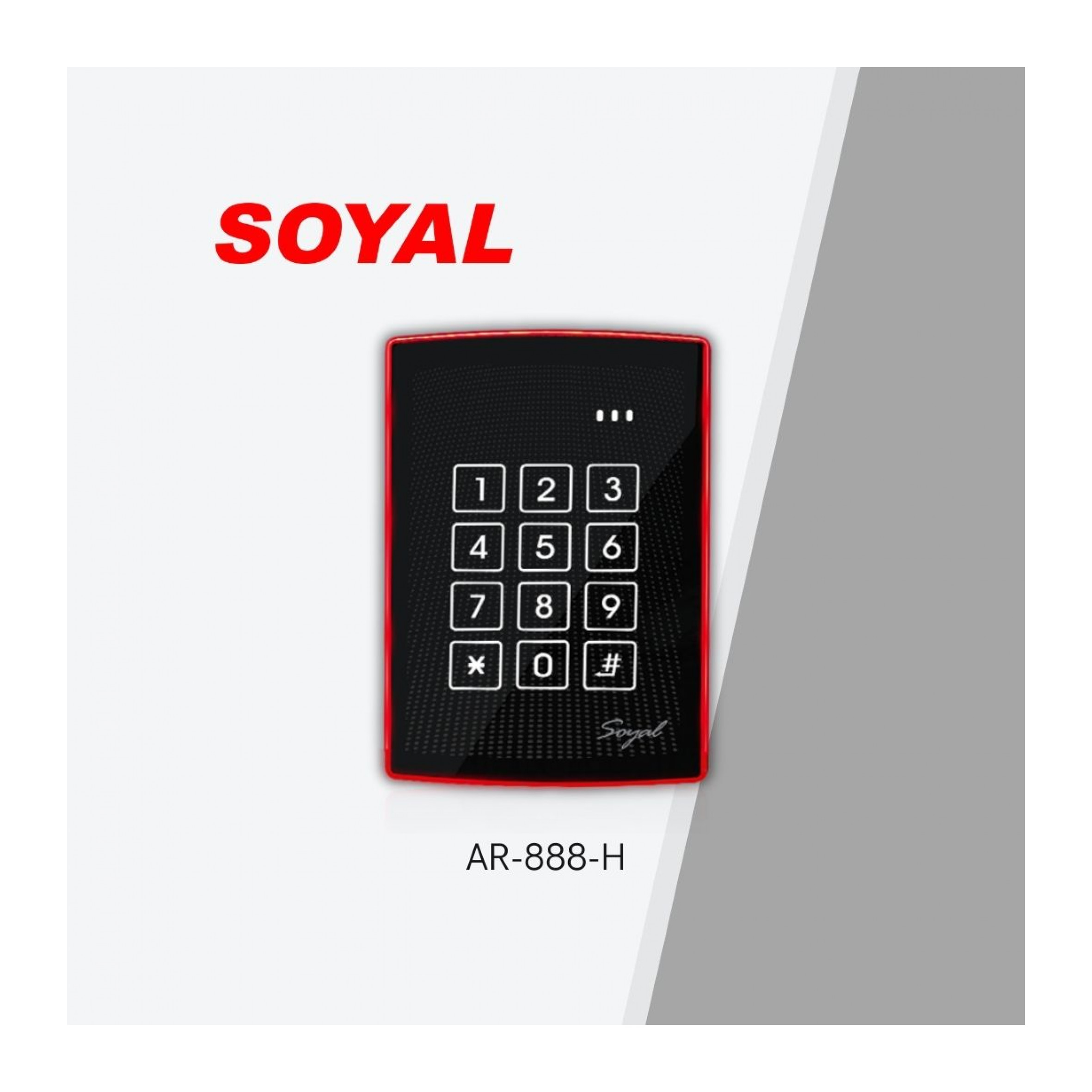

Model: AR-888-H

Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Proximity Reader
  • 125 kHz : EM 13.56MHz:Mifare ISO14443A / NFC / DESFire/ Felica / ISO15693

Controller
  • 13.56MHz:Mifare ISO14443A / NFC / DESFire

Push Button
  • Touch-less Infrared / Relay Output (COM/N.O./N.C.)

Dimension (mm)
  • EU: 88(L) X 86(W) X 9(H)/34(H)
  • US: 110(L) X 81(W) X 9(H)/34(H)

Color (Power ON)
  • Green & Red

Power Consumption
  • <1W

Power Voltage
  • 9~24VDC

Ingress Protection
  • IP65

User Capacity
  • 1,024 /3,000/16,000 /32,000 / 65,000
USER'S GUIDE

AR-888-H USER'S GUIDE
