8 ZONE CONTROL PANEL

Spectra SP control panels (SP6000) offer a combination of innovative features and an advanced communication bus for a uniquely expandable security system. Through its communication bus, all Spectra SP panels can be expanded via wireless and hardwired expansion modules and a variety of accessory modules. With their in-field firmware upgrade capability, the Spectra SP series allows installers to upgrade their system without hassle – quickly, easily, and on-site. To further facilitate installation, every Spectra SP panel can be configured using easy-to-follow, menu-driven programming

  • FEATURES:

    • Wireless Expansion

    • 2-Wire Smoke Detector Input

    • GPRS / GSM Module (PCS Series)

    • Compatible with IP150

    • Compatible with VDMP3

    • Patented 2 up to Coupler Dialer Circuit

    • In-Field Firmware Upgradeable

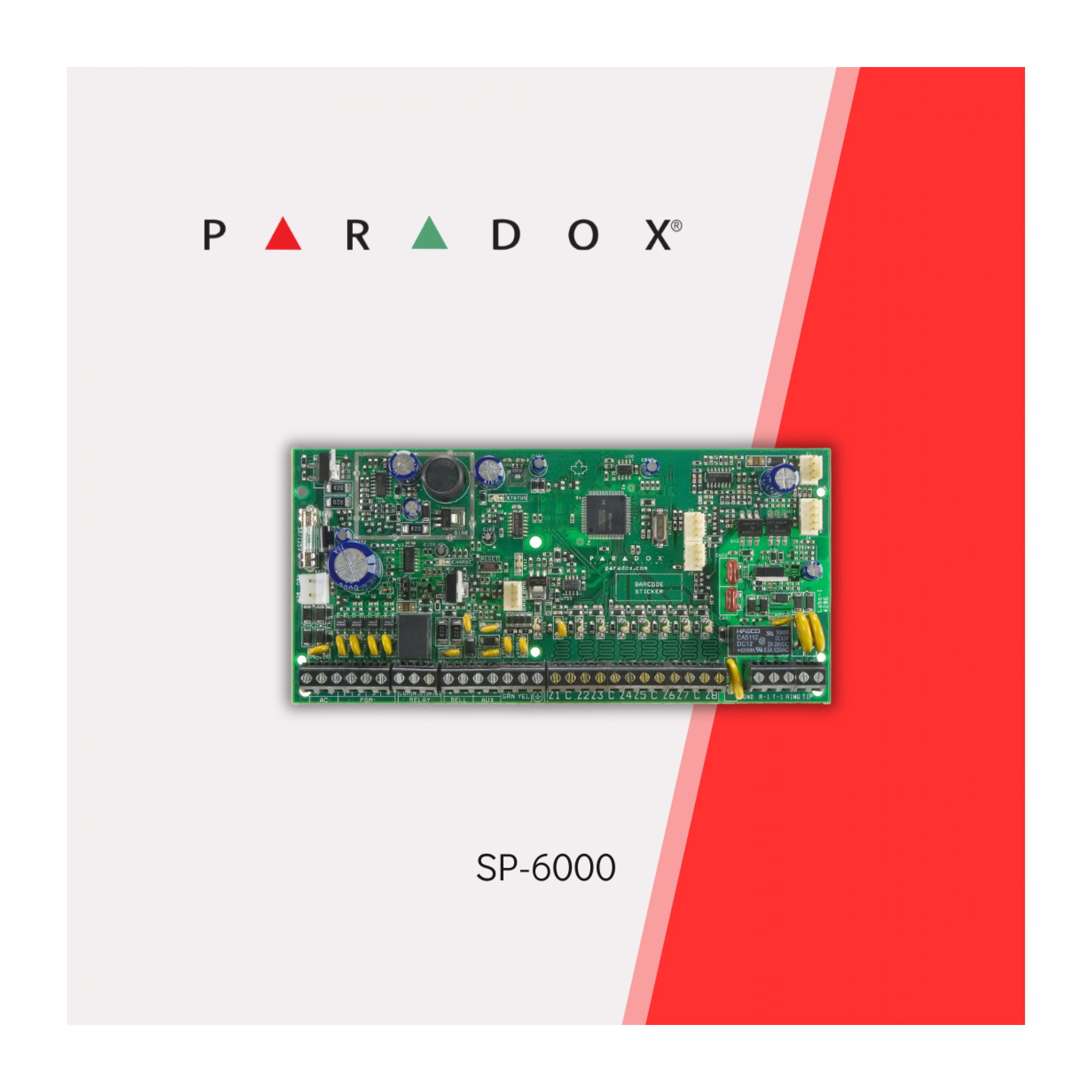

Model: SP-6000

Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Power Supply
  • 1.5A switching1.5A switching

Input Voltage
  • 16.5 Vac (50 or 60 Hz) minimum20 VA (40VA recommended) Battery: 12 Vdc, 4Ah / 7Ah

Battery Charging Current
  • 350 or 700

Auxiliary Current
  • 700 mA maximum, fuse-less shutdown at 1.1A

Bell Output
  • 1A (fuse-less shutdown at 3A) 1A (fuse-less shutdown at 3A) PGM Output: 2 x 100 mA solid state and2 x 100 mA open collector (+/- trigger) Operating Temperature: -10 to 55 °C (14 to 131 °F)

Metal Box
  • Fits in 20 x 25.5 x 7.6cm (8 x 10 x 3in.) and 28 x 28 x 7.6cm(11 x 11 x 3 in.) metal boxes Dimensions: 8.9 x 19 x 2.5 cm (3.5 x 7.5 x 1 in.)
DATA SHEET

SP-6000 DATA SHEET

USER'S GUIDE

SP-6000 USER'S GUIDE
