ANALOG SINGLE-OPTIC PIR (PET IMMUNITY)

Pro Plus motion detectors give you the latest technology available for superior accuracy. Their exclusive Auto Pulse Signal Processing ensures exceptional detection precision. Their Automatic Temperature Compensation also means that both detectors perform consistently well in a wide variety of environmental conditions.

  • FEATURES:
    • Immune to animals weighing up to 18kg (40lb)

    • When a higher level of immunity is required, such as when animals are constantly in the detection area, consider using DG75

    • Extremely high EMI and RFI rejection

    • PCB uses only surface mount components

    • Dual element PIR sensors

    • Anti-tamper switch

    • Auto-Pulse Signal Processing* (APSP)

    • Can be used with SB469 Swivel-Mount Bracket

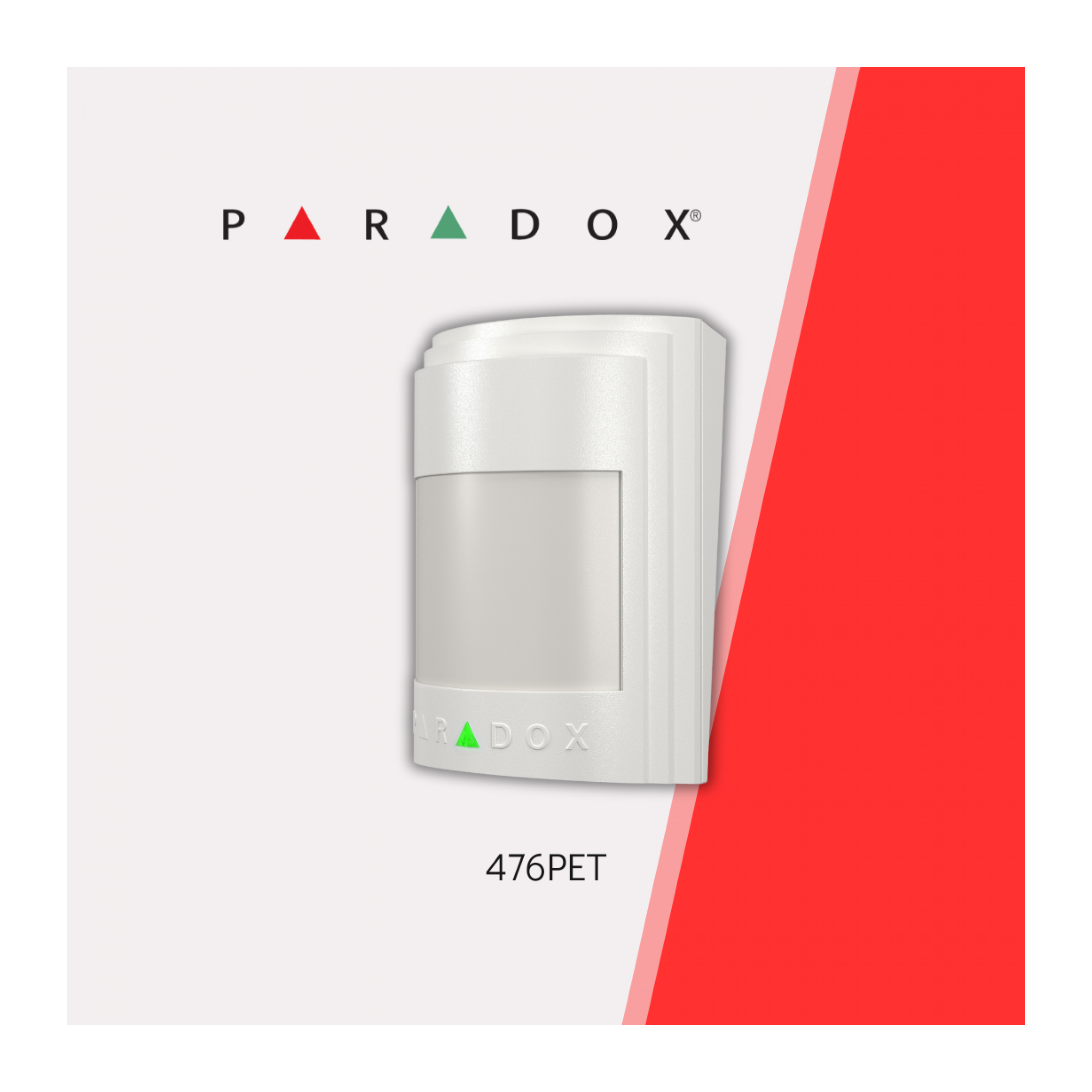

Model: 476PET


Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Detection Range

  • 11 x 11m (35 x 35ft) and up to 15m (50ft) for center beams; 88.5°

Pet Immunity

  • Up to 18 kg (40lb)

Input Voltage

  • 9 to 16 Vdc

Current Consumption

  • Typical: 15 mA Maximum: 29mA

Alarm Output

  • Form A relay, N.C.

Operating Temperature

  • -20 to 50 °C (-4 to 122 °F)

Dimensions

  • 6.6 x 9.3 x 5.2 cm (2.6 x 3.7 x 2 in.)
