2-ZONE WIRELESS DOOR CONTACT

Paradox offers a wide variety of door contacts to provide solutions for different applications, including on-frame and in-frame installation solutions. All our door contacts provide rock solid stability with Paradox wireless networks as well as long life with cost effective powerful alkaline / lithium batteries. The DCTXP2 are designed to be installed on the frame of doors and windows and differ by range and size.

  • FEATURES:
    • 2-zone capabilities where each zone is independent and has its own serial number

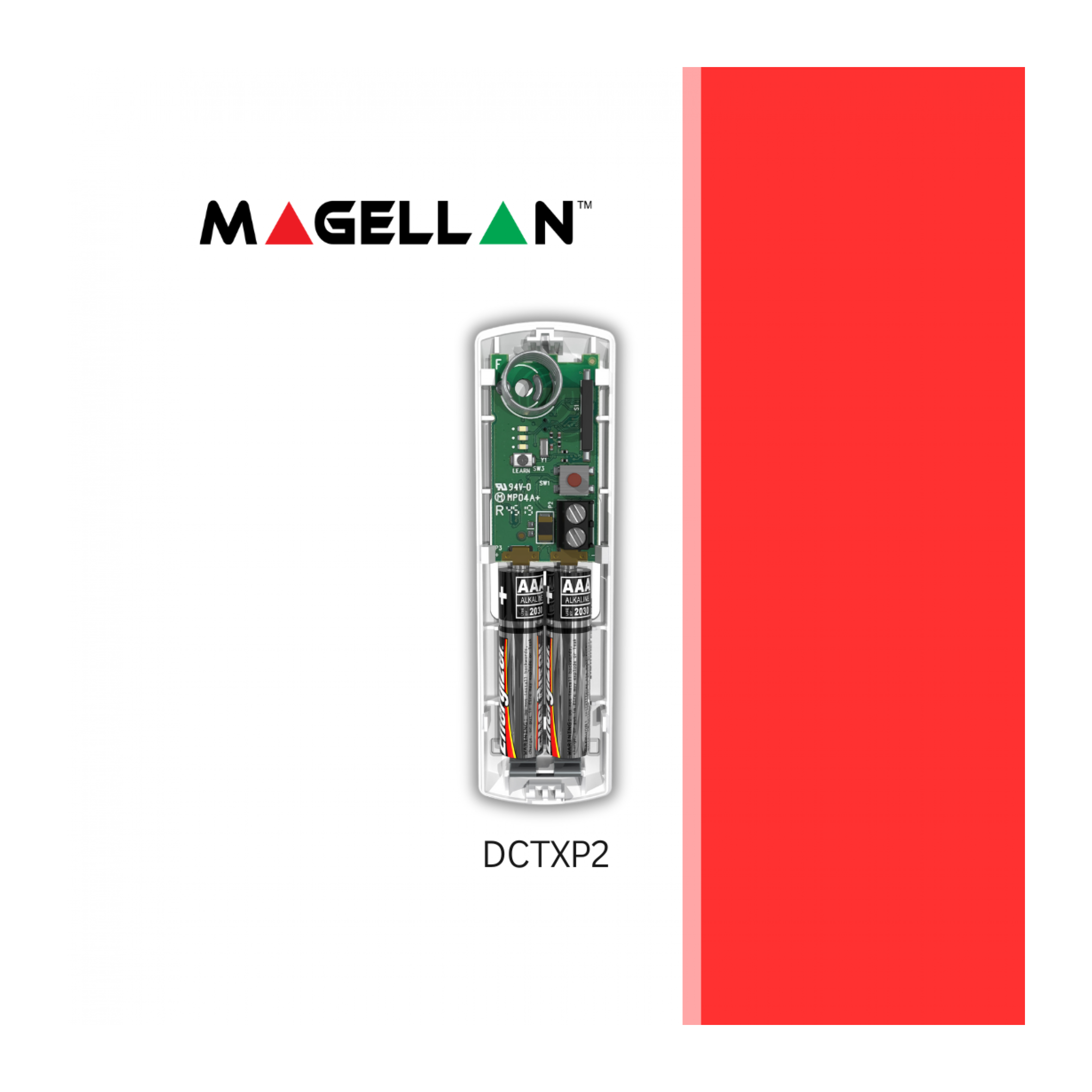

    • Zone 1: One of two high-sensitivity reed switches on board (magnet included)

    • Zone 2: Universal input (N.O. / N.C.)Anti-tamper switch

    • Available in brown and white

    • Built-in strip antenna (printed)

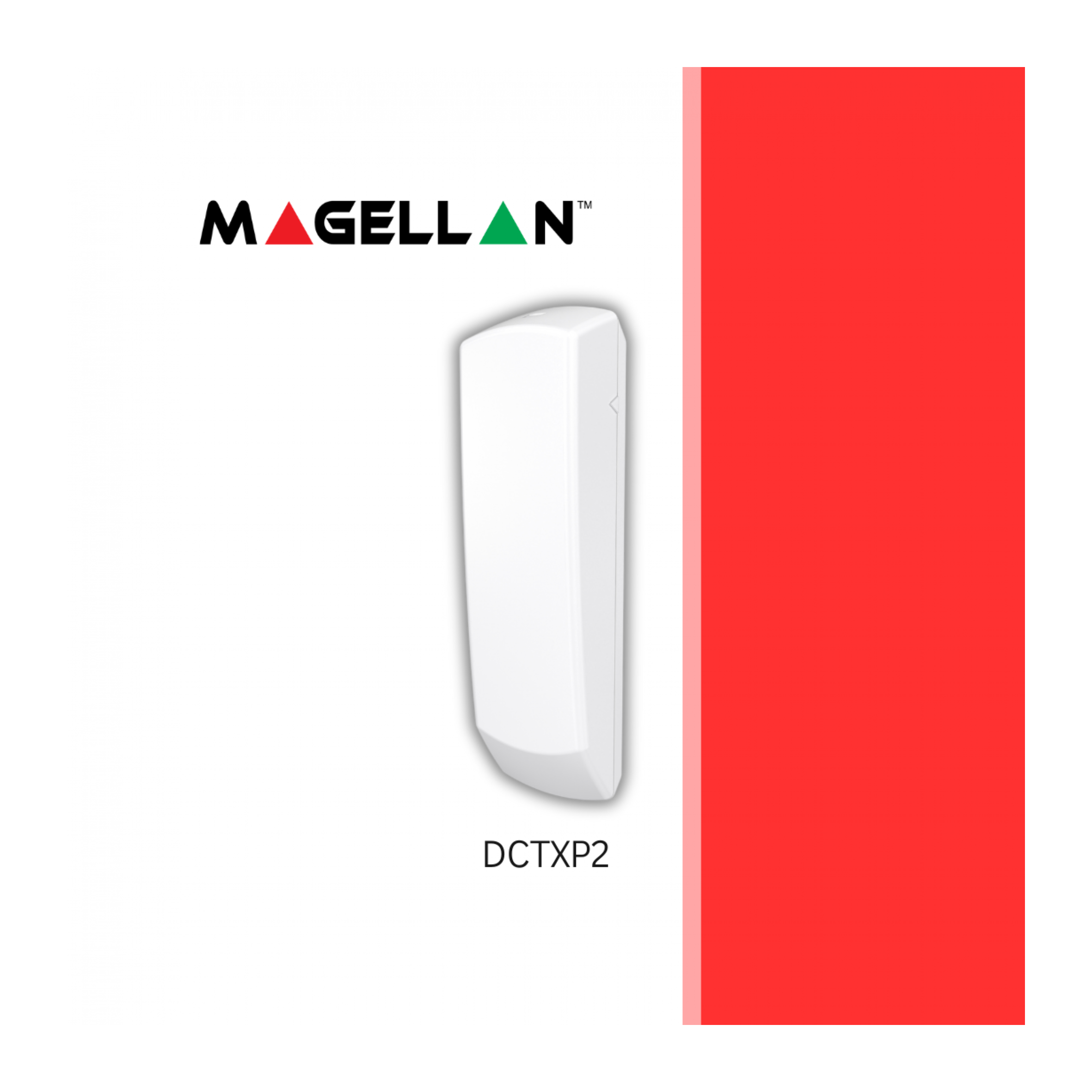

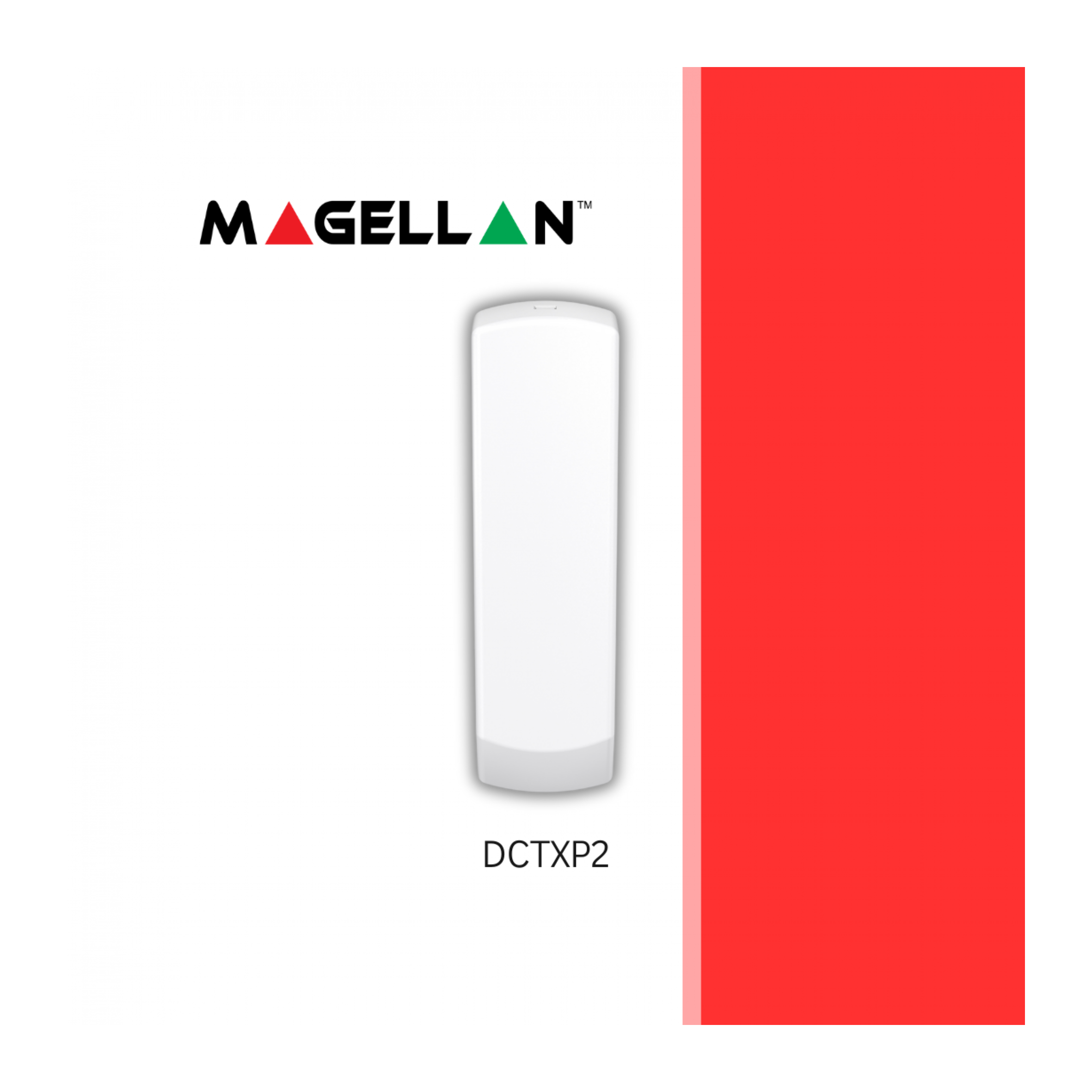

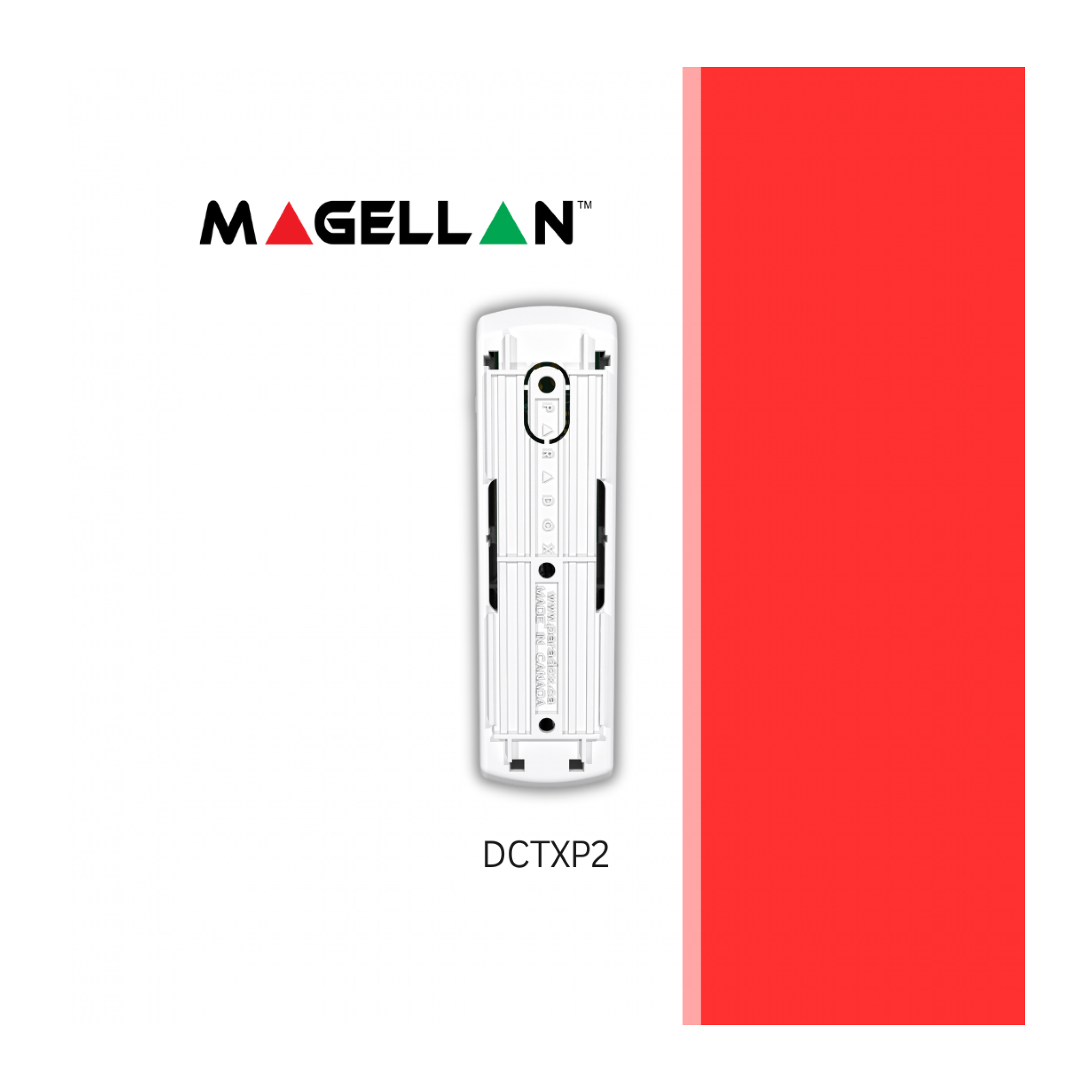

Model: DCTXP2


Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Power

  • 3 Vac, 2 x AAA alkaline batteries

RF Frequency

  • 433 or 868 MHz

Operating Temperature

  • -10 to 55 °C (14 to 131 °F)

Dimensions

  • 4.3 x 3 x 1.8 cm (1.7 x 1.2 x 0.7 in.)
BROCHURE

DCTXP2 BROCHURE
