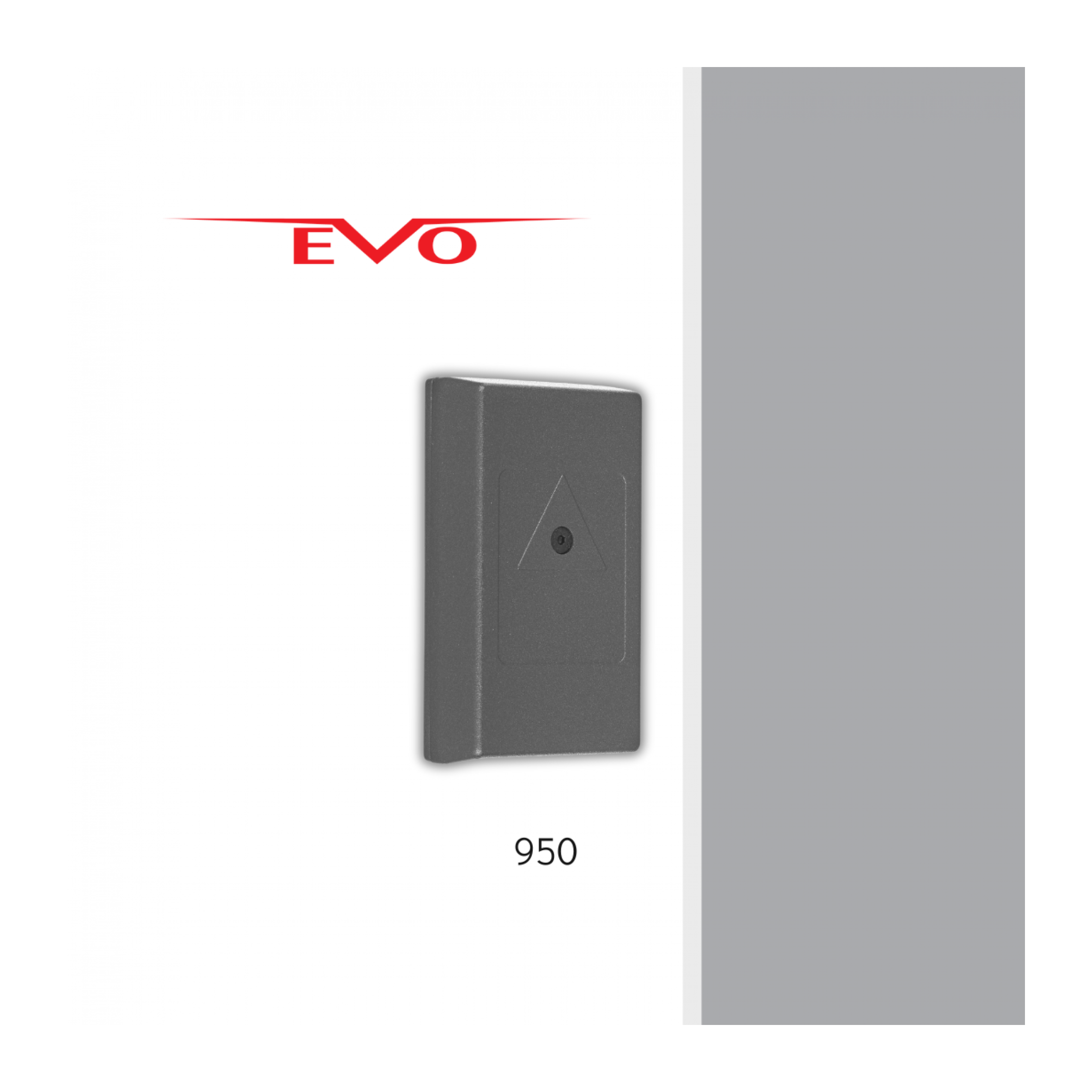

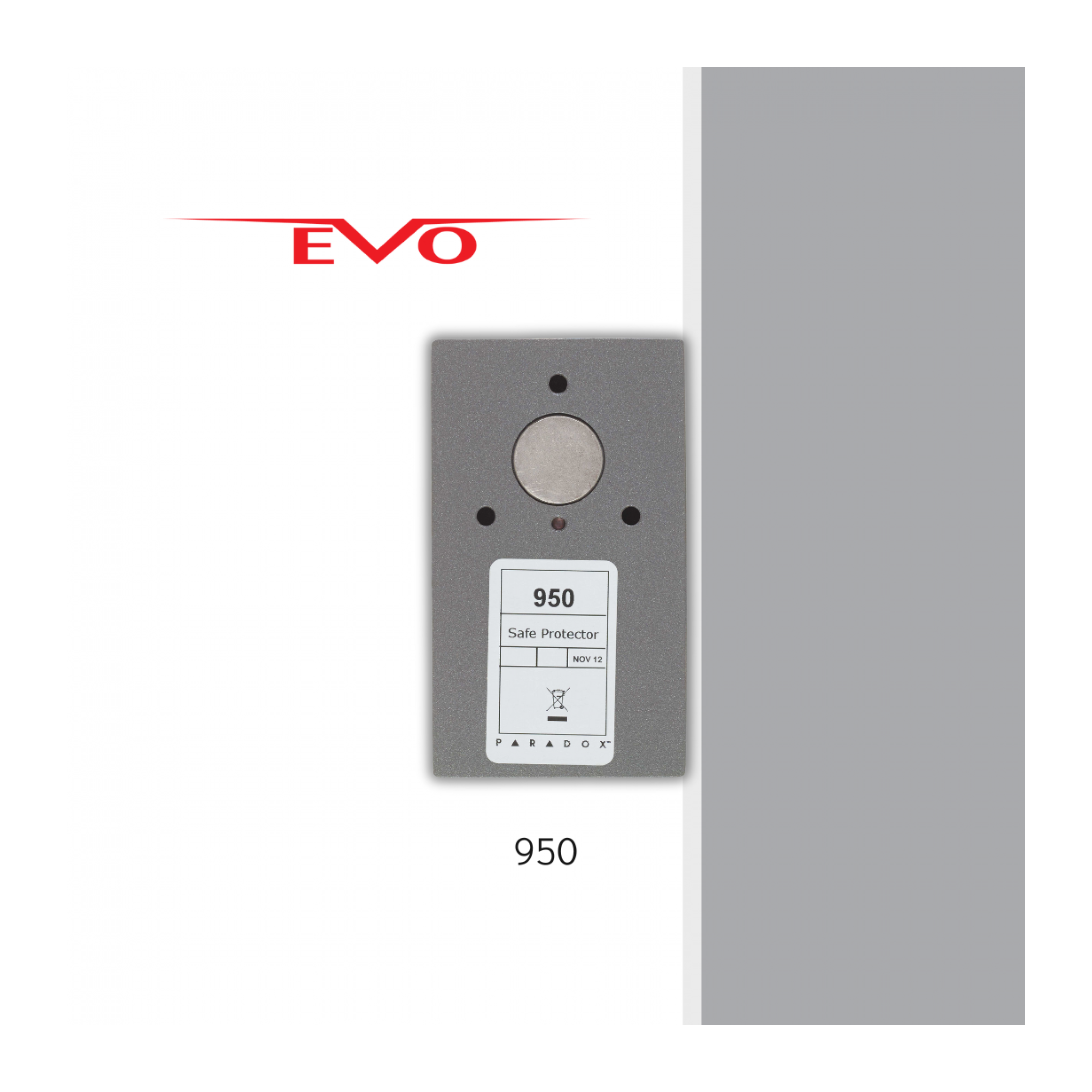

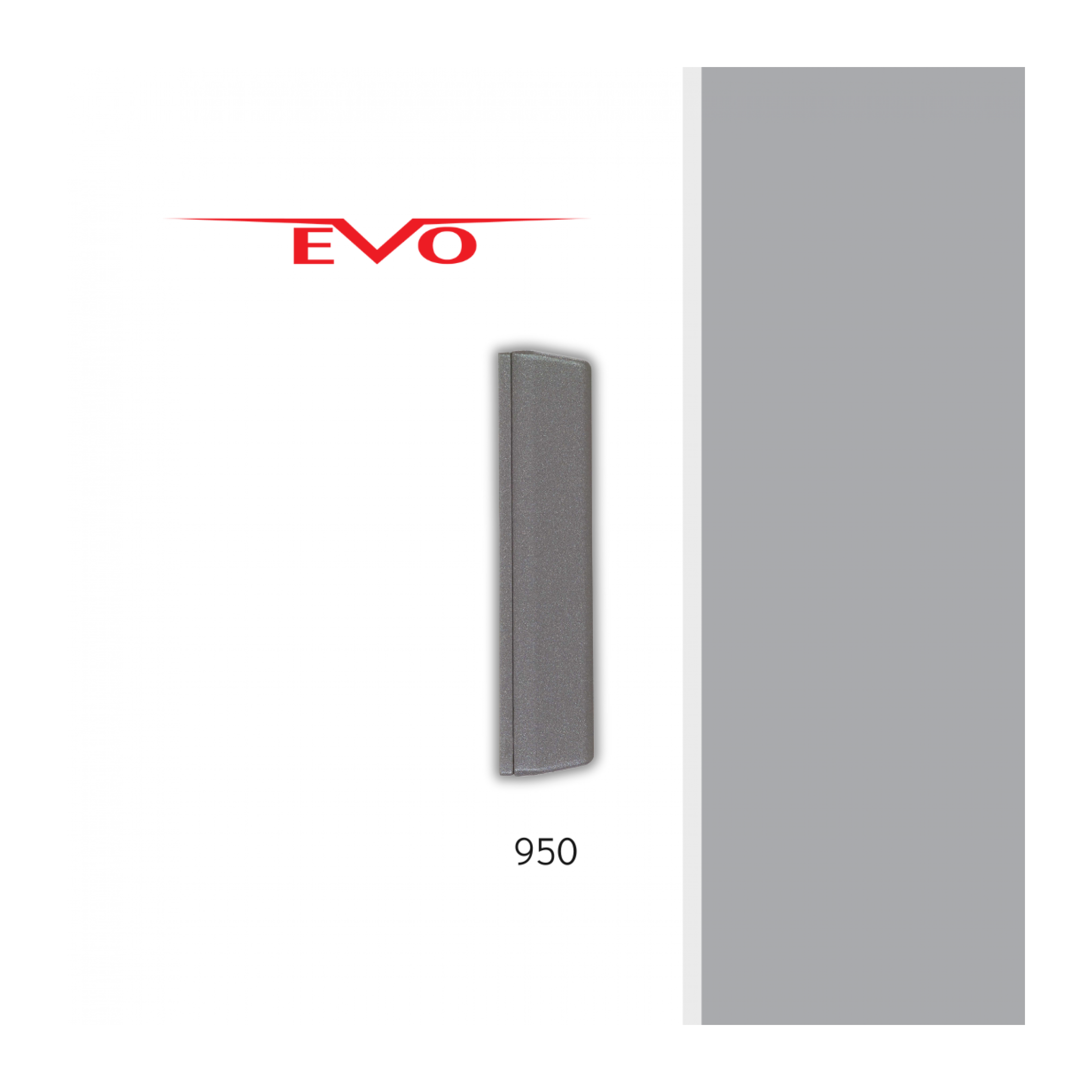

SAFE PROTECTOR

The Paradox Safe Protector is designed for security applications on metallic cabinets, cash-boxes, safe and metallic doors. It can also be applied successfully to protect concrete walls of bank depositories and other premises requiring high security protection level. The Paradox Safe Protector is installed directly on the protected surface and reacts to the frequency spectrum of vibrations caused by surface breaking, cutting, and heavy knocking by grinders, electric arc welders, and oxyacetylene torches. It also reacts to knocking, filing and drilling on the protected surface.

  • FEATURES:
    • High-sensitivity piezoelectric element

    • Anti-tamper switch

    • Five sensitivity settings

Model: 950


Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Supply Voltage

  • 10 - 16 Vdc

Current consumption

  • Standby: 16 mA (+/- 10%)

Alarm

  • 12 mA (+/- 10%)

Diameter of protected surface

  • 2.50m

Alarm relay

  • 28V/150 Ma

Temperature range

  • -20°C to +50°C

Maximum humidity

  • 95% at 25°C

Dimensions

  • 109 x 64 x 23 mm

Weight

  • 260 grams
