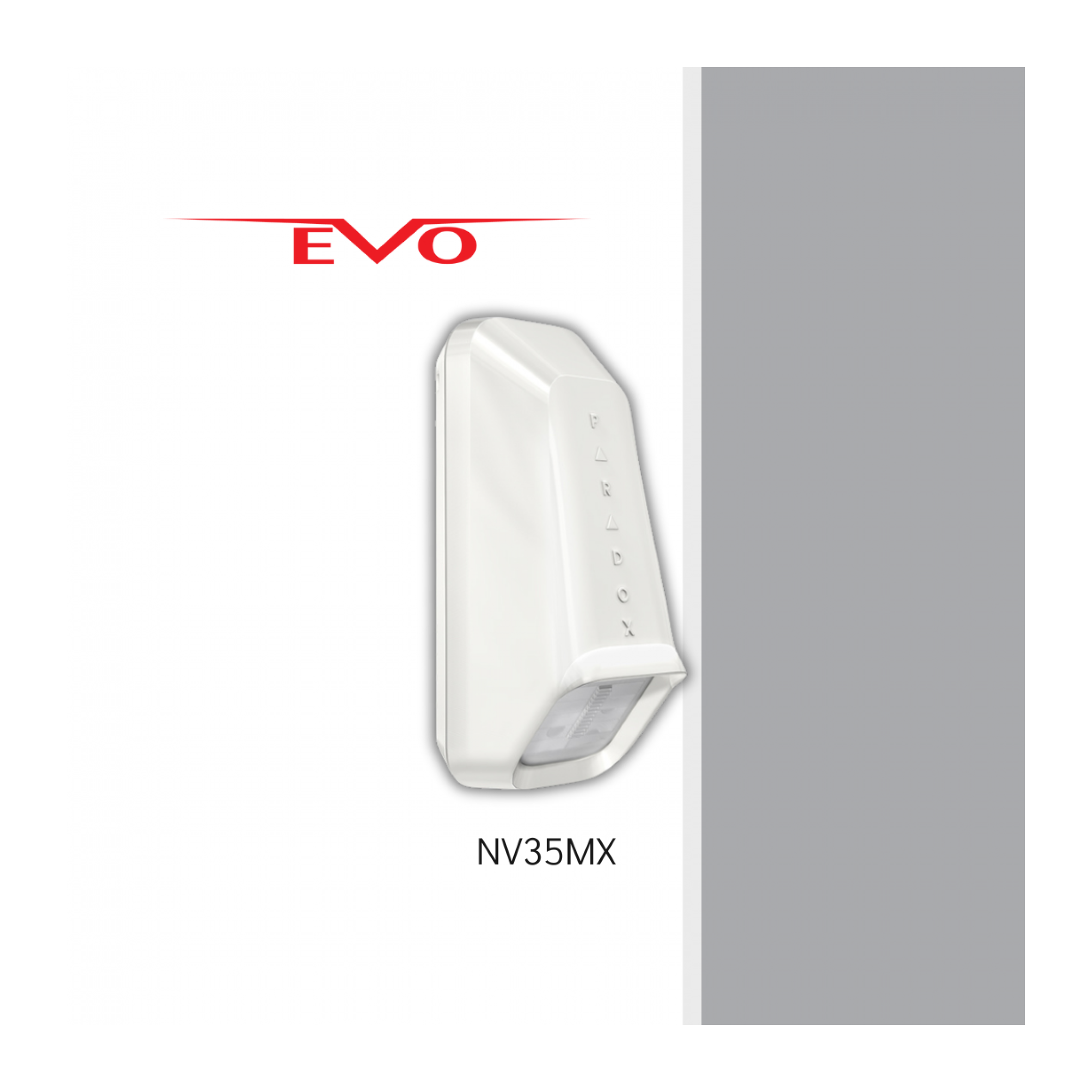

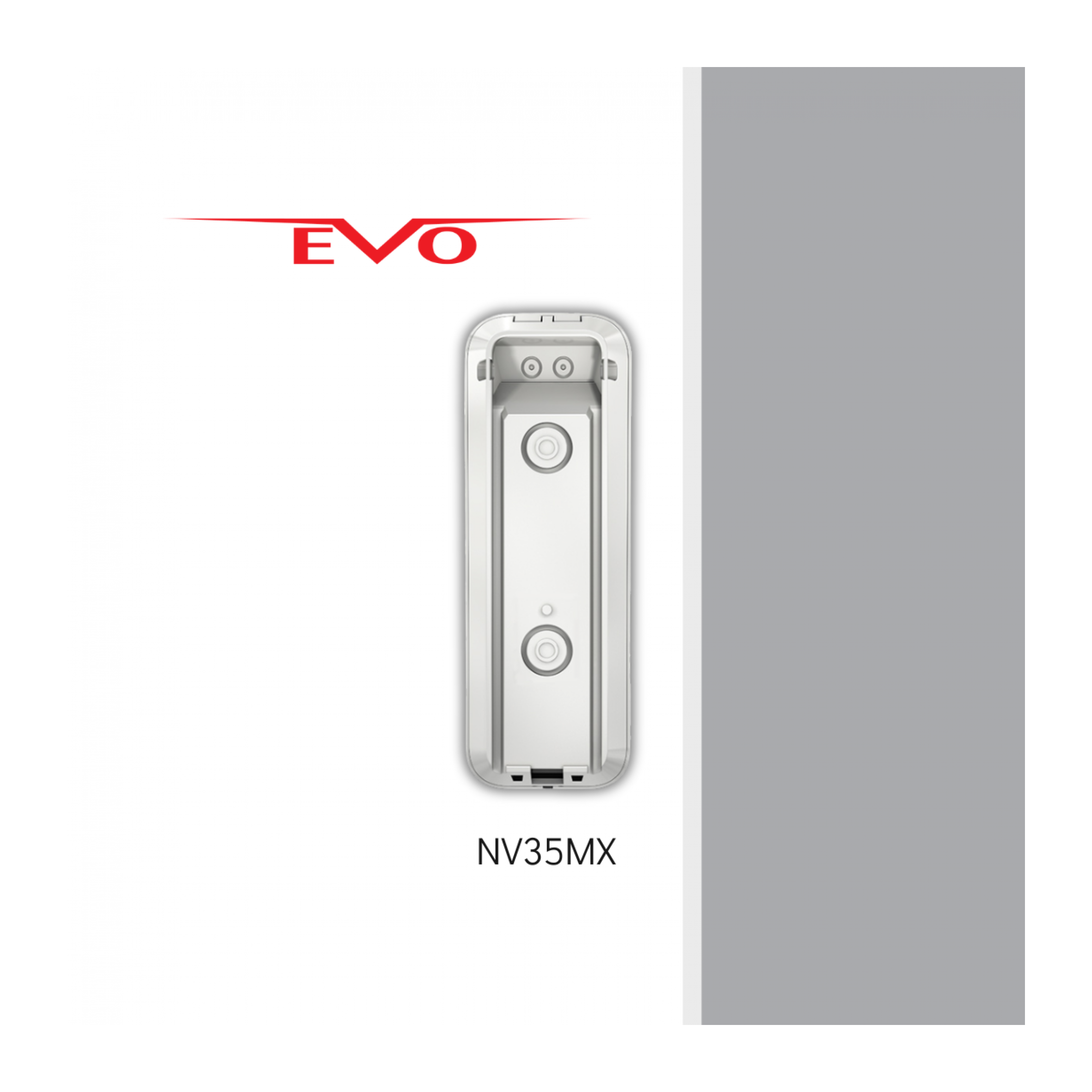

WIRED OUTDOOR / INDOOR WINDOW AND SLIDING DOOR DUAL DETECTOR

The NV35MX EVO version will provide you the most advanced window and sliding door protection either in Pet Immune or Sharp mode, while programming can be done remotely via EVO bus connection. The NV35MX has been designed to be installed within the frame of windows and doors when installed outdoors. This will ensure the best performance against false alarms when random pets such as birds, cats and small dogs access the window sill. Other installation methods can be used with the NV35MX such as wall beam protection but if installed outside of the frame its pet immunity may be compromised.

  • FEATURES:
    • Outdoor / indoor protection solution for windows and sliding doors

    • Advanced Optical and Digital Technology

    • Dual detectors, managed by Full Authority Digital Electronics Control (FADEC)

    • Patented Auto Pulse Signal Processing with Automatic Temperature Compensation

    • Digital EMI / RFI interference rejection

    • Optical Pet discrimination geometry to support super Pet Immunity

    • Anti-Masking: Unique active IR detection for both blocking items up to 30 cm front of the detector and sprayed liquids

    • Dual tamper detection (removal of cover or unit)

Model: NV35MX


Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Detection Range

  • Super Pet Immunity Mode: 7.5 x 2m (25 x 7ft)
  • Sharp Mode (Pet Immunity off): 10 x 2m (33 x 7ft)

Pet Immunity

  • 50 cm (20 in.)

Input Voltage

  • 10 to 15 Vdc

Current Consumption

  • Typical: 15 mA, Maximum: 19.2 Ma

IP Rating

  • IP54

Operating Temperature

  • -35 to 60º C (-31 to 140º F)

Dimensions

  • 12.3 x 6.1 x 4.3 cm (4.8 x 2.4 x 1.7 in.)
