FIRERAY® 3000 EXD FLAMEPROOF OPTICAL BEAM SMOKE DETECTOR

The Fireray® 3000 Exd is ideally suited for the protection of large areas, with potentially explosive atmospheres, against smoking fires.Fireray® 3000 Exd comprises an infrared transmitter and a receiver, both of which are ATEX-certified for use in Group 2 hazardous areas. There is a separate, safe area, wall-mounted remote/low level control unit to allow adjustment and testing from a convenient non-hazardous location. The product is designed for large enclosures within oil rigs, refineries, ordnance stores and similar premises. It provides an early warning of smoldering or strongly smoke-generative fires, which may not be picked up by flame detectors installed in many hazardous areas.

  • FEATURES:

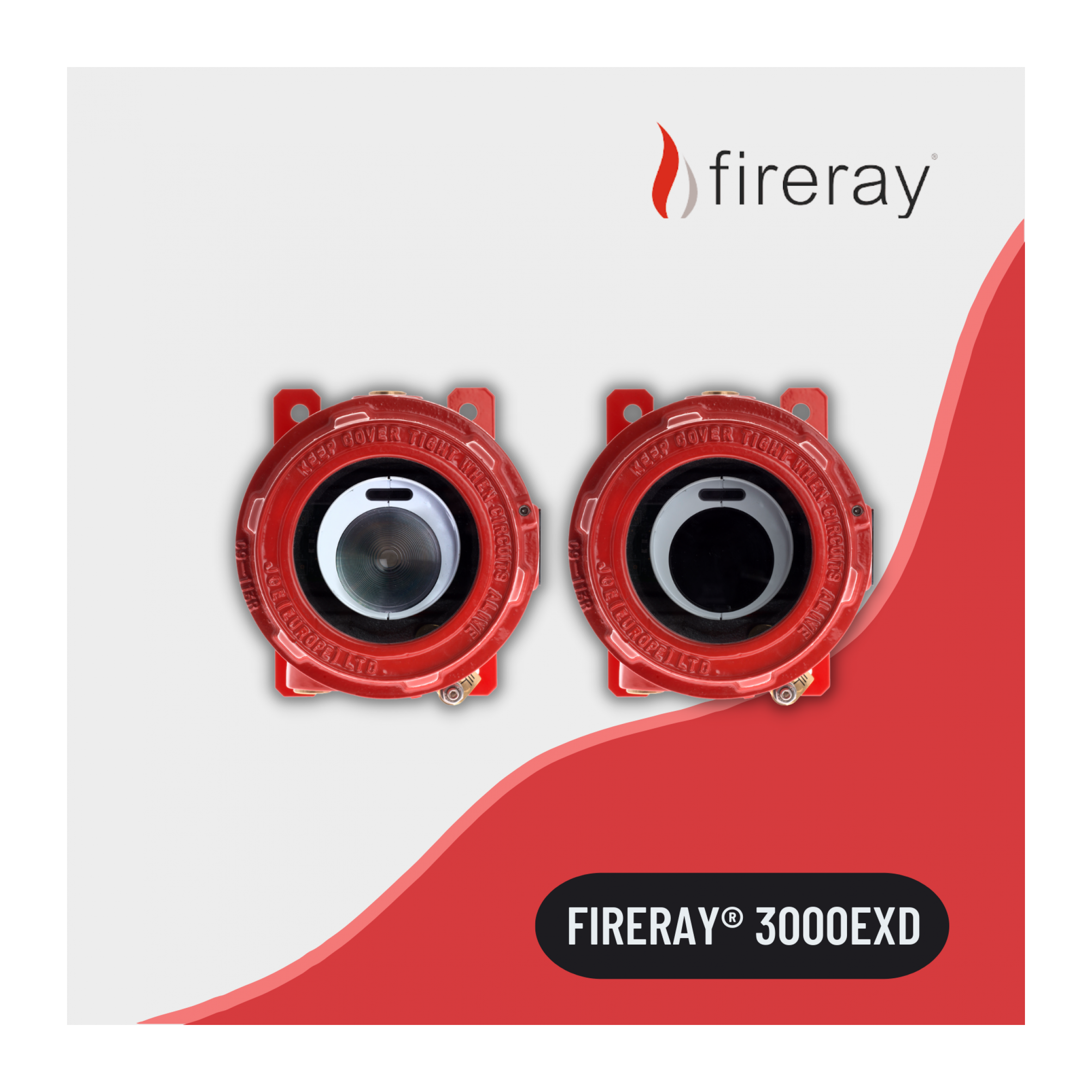

    • Separate transmitter and receiver unit certified to Exd

    • Allows for 2 Detectors per System Controller

    • Range 33ft to 262ft, (10 to 80 meters) configurable per set of Detectors

    • Integral Laser Alignment in Receiver

    • 2-wire Interface between Controller and Receiver

    • Separate Alarm and Trouble Relays per Detector

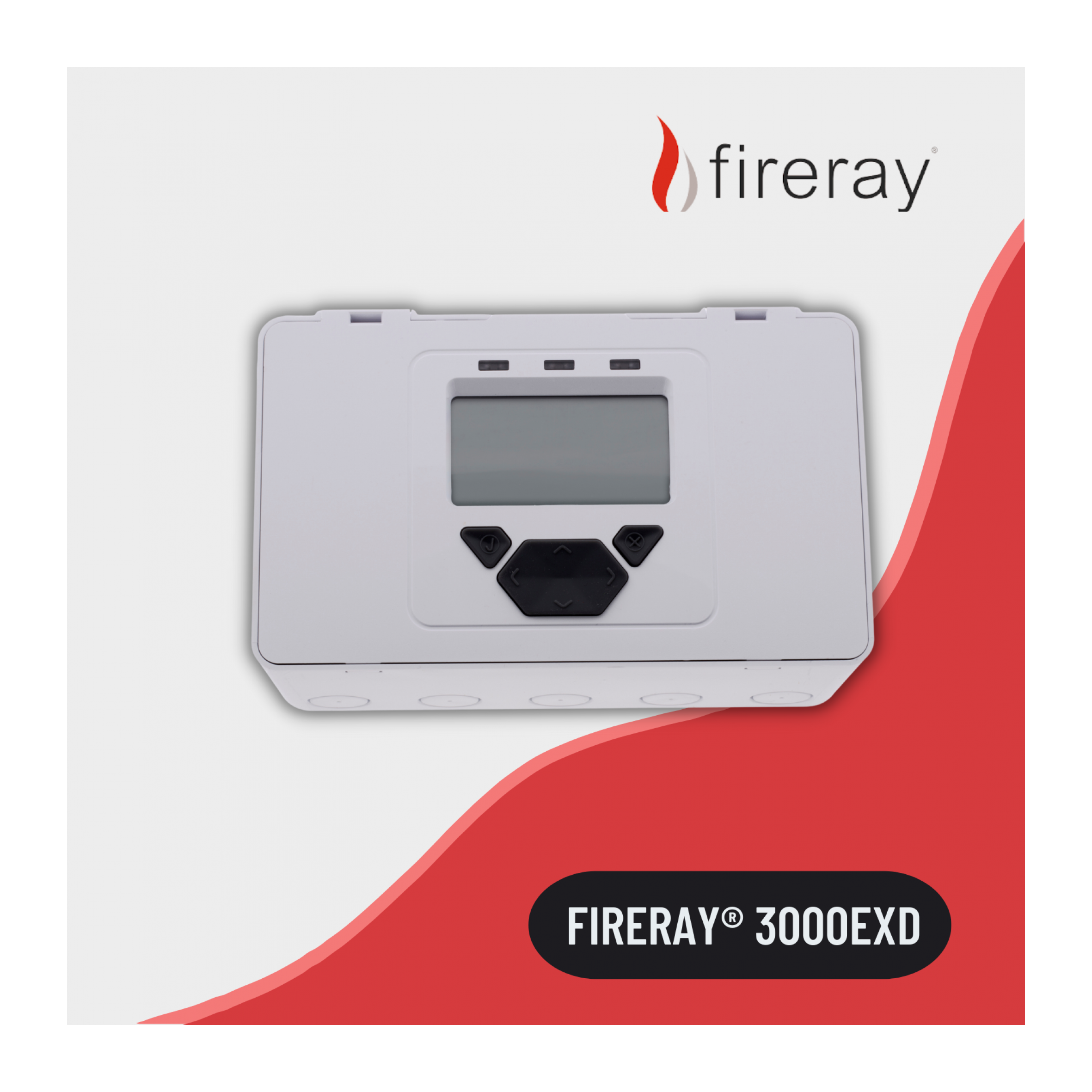

    • Remote/low Level Controller with LCD display (Safe Area)

    • Programmable Sensitivity and Fire/Fault delay

    • Automatic Gain Control (AGC) for drift compensation

    • First Fix concept for transmitter, receiver and controller

    • Multiple cable gland knockouts for ease of wiring

    • Transmitter can be powered from Controller

    • Complies with ATEX

    • Light Cancellation Technology

Model: 3000-115


Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Operating Range

  • 33ft to 262ft, (10 to 80 meters)

Operating Voltage Range

  • 12 to 36V DC ±10%

Operating Controller Current (with 1 or 2 Receivers)

  • 14mA (constant)

Operating Transmitter Current

  • 8mA (per Transmitter)

Power Down Reset Time

  • >20 seconds

Fire and Fault Relay Contacts

  • VFCO 2A @ 30 Volts DC resistive

Operating Temp. (non-condensing)

  • -10°C to +55°C, (14°f to131°f)

Optical Wavelength

  • 850nm

LED Indications

  • CONTROL UNIT : Red = Fire Amber = Fault Green = System OK
  • RECEIVER: Alignment LEDs for single person alignment

IP Rating

  • IP54 (Controller) IP66 (Transmitter/Receiver)

Relative Humidity (non-condensing)

  • 93%

Parts List (System)

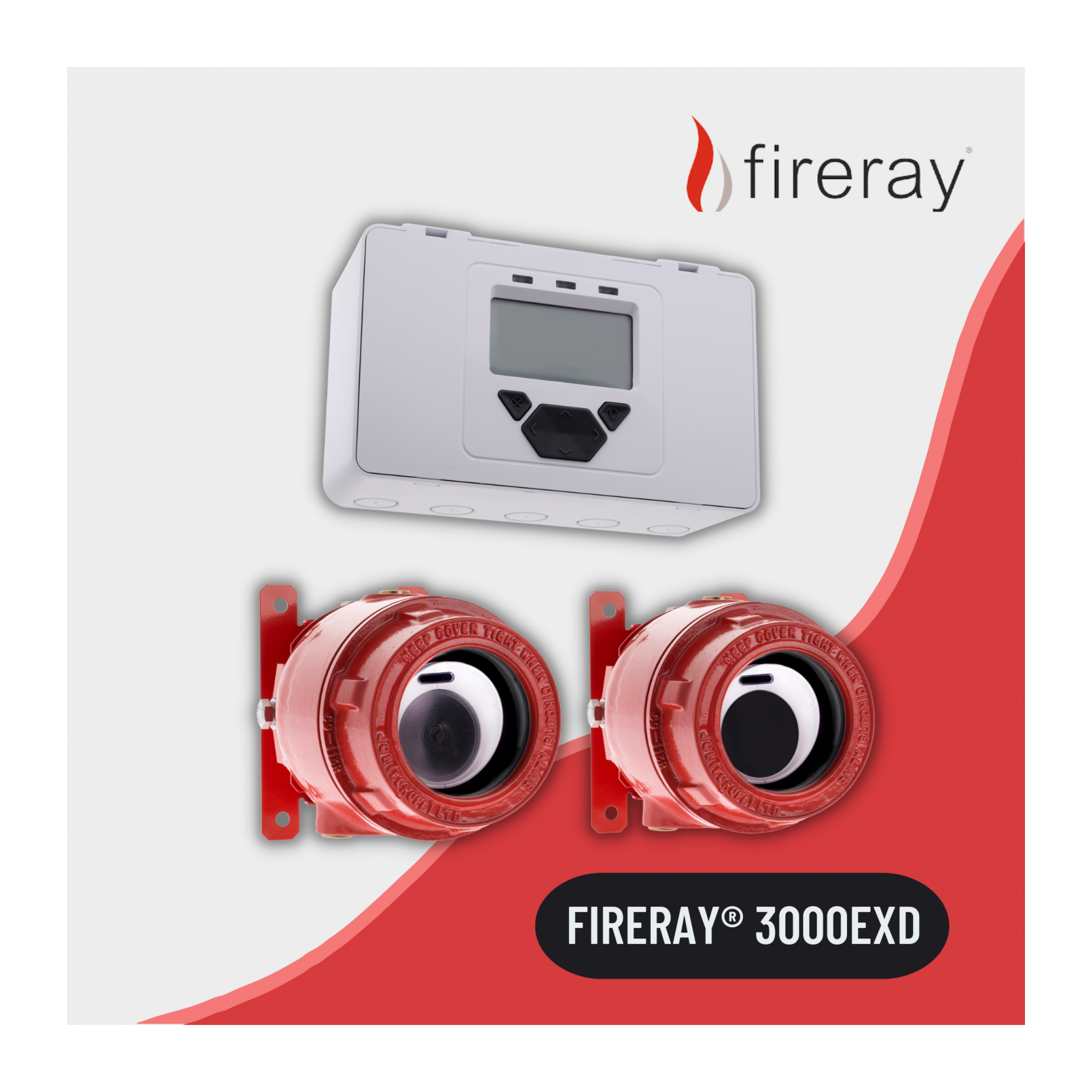

  • 1 x Transmitter (clear lens) 1 x Receiver (dark lens) 1 x Control Unit 1 x Fixing Kit 2 x Brackets

Parts List (Additional Detector)

  • 1 x Transmitter (clear lens) 1 x Receiver (dark lens) 1 x Fixing Kit 2 x Brackets

Housing Material

  • CONTROLLER: UL94 V2 PC
  • TRANSMITTER/RECEIVER: Copper Free, Aluminum Alloy LM25, Red

Weight

  • CONTROLLER (mm) : 124mm (H) x 203mm (L) x 73.50mm (W)
  • TRANSMITTER/RECEIVER (mm) : 172mm (H) x 149mm (L) x 190mm (W)
Brochure

FIRERAY® 300 EXD FLAMEPROOF OPTICAL BEAM SMOKE DETECTOR DATA SHEET

3000-115
