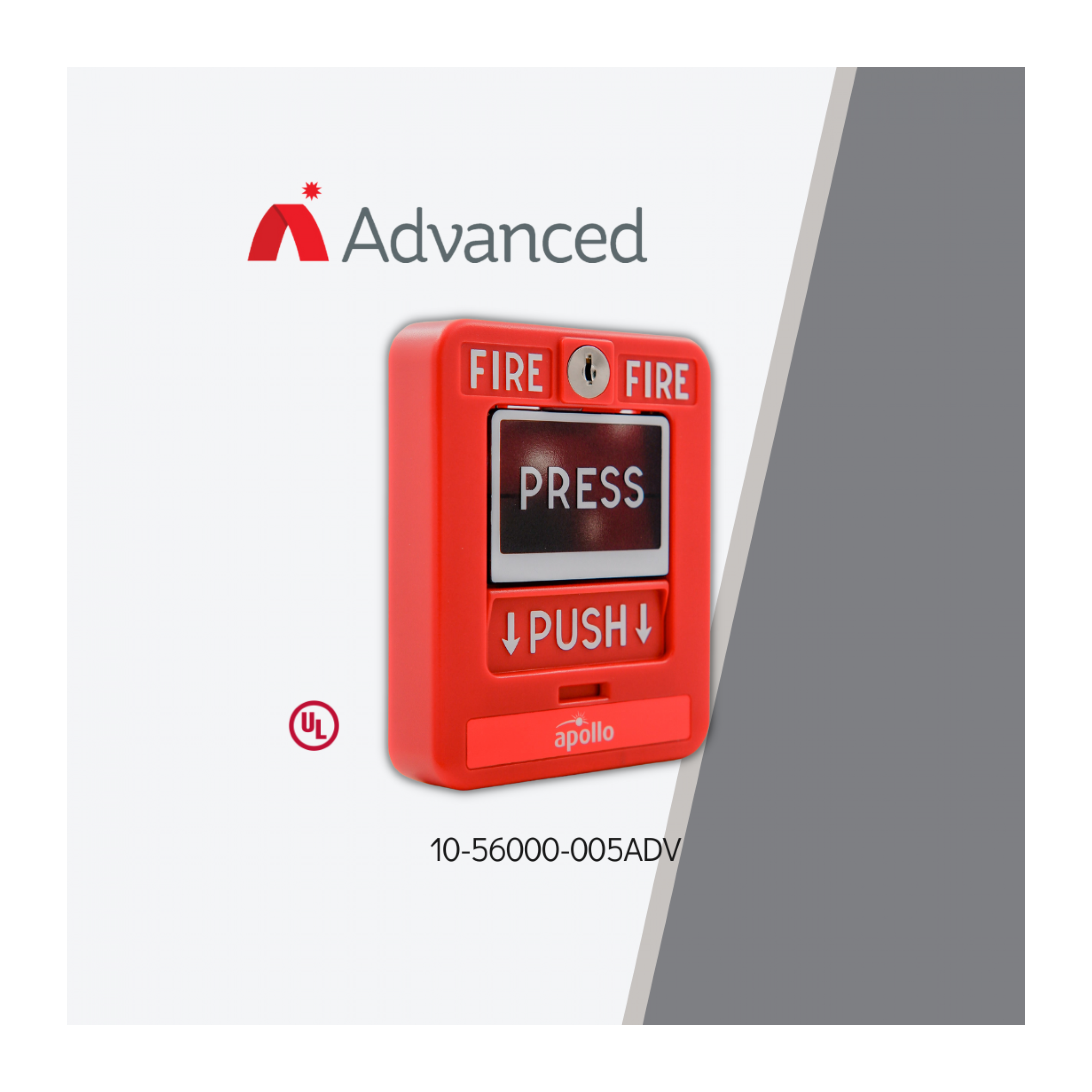

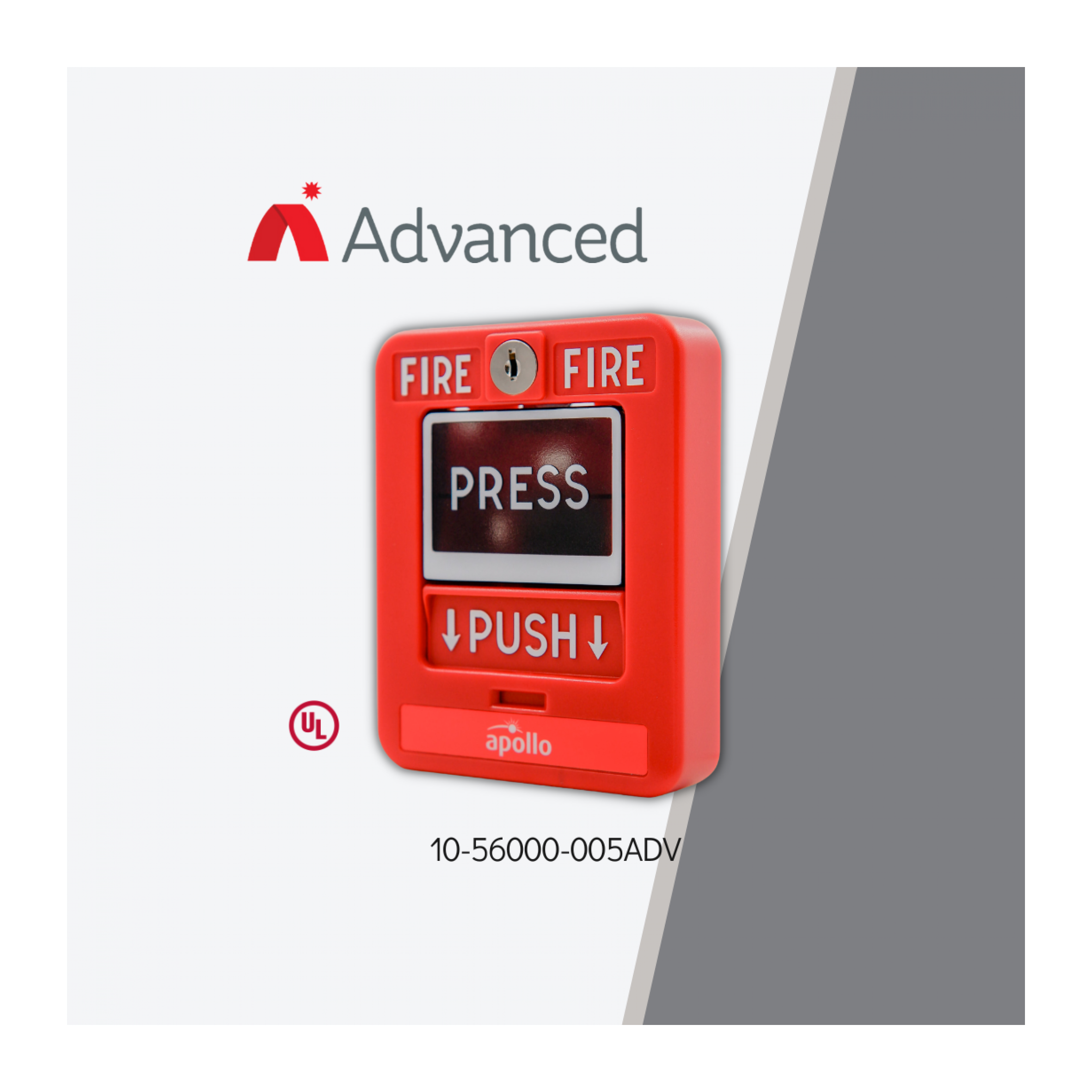

The Advanced Intelligent Dual Action Polycarbonate Pull Station (56000-005ADV) is a low profile, high quality addressable manual pull station. Easily recognizable during a fire situation, the 56000-005ADV station is constructed of rugged polycarbonate for long life and reliability, with a red finish and raised white “FIRE” lettering. A red LED visible through the face of the station flashes during polling and turns on steady in alarm. Each station includes a key-lock for resetting (CAT B / CAT 30) which is common with the Axis AX Series Intelligent Fire Alarm Control Panels. The 56000-005ADV stations are UL 38 Listed, meet the ADAAG controls and operating guidelines, and the ADA requirements for five pound maximum activation force. The 56000-005ADV, Intelligent Dual Action Polycarbonate Pull Station, can be mounted semi-flush onto a standard single-gang electrical outlet box. If installations require surface mounting, an optional polycarbonate surface back box (56000-006ADV) is available.
-
FEATURES:
-
ADA and ADAAG Compliant
-
Dual Action Design
-
Rugged Polycarbonate Construction
-
Red Status LED
-
Easy Key-Lock Reset
-
Yellow Activation Stripe
-
-
LISTINGS AND APPROVALS:
-
UL 38 Listed: UNIU.S24867 / ML File: S25235
-
ETL ANSI/UL 864 Listed: 101564744NYM-001
-
NYCFD COA: #6105A2
-
Model: 10-56000-005
| SPECIFICATIONS SPECIFICATIONS | DESCRIPTION DESCRIPTION |
|---|---|
|
Operating Voltage |
|
|
Operating Current |
|
|
Operating Temperature |
|
|
Relative Humidity |
|
|
Dimensions |
|
|
Weight |
|
|
Analog Value |
|
|
Address Range |
|
|
Color |
|
