AXIS AX INTELLIGENT MANUAL PULL STATIONS

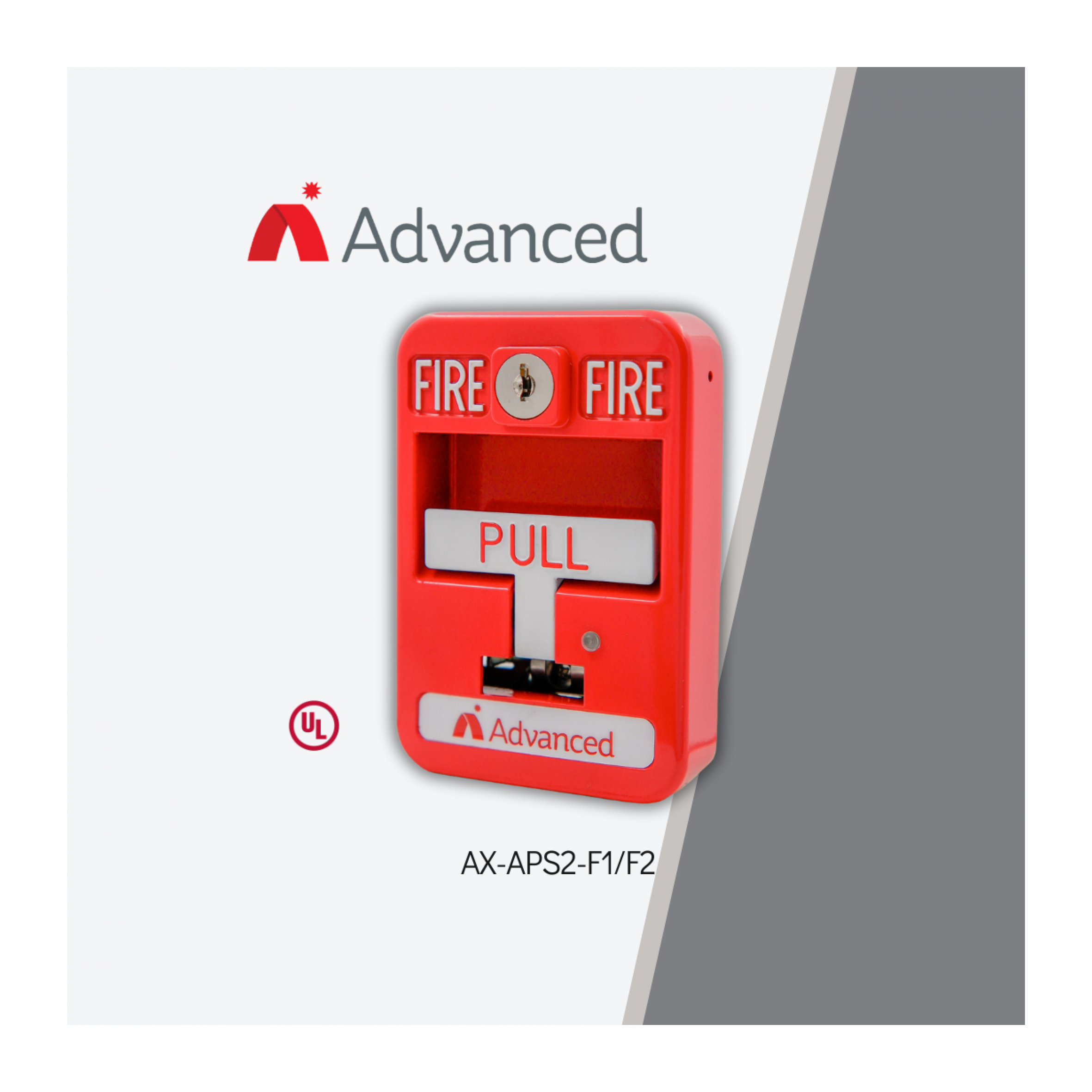

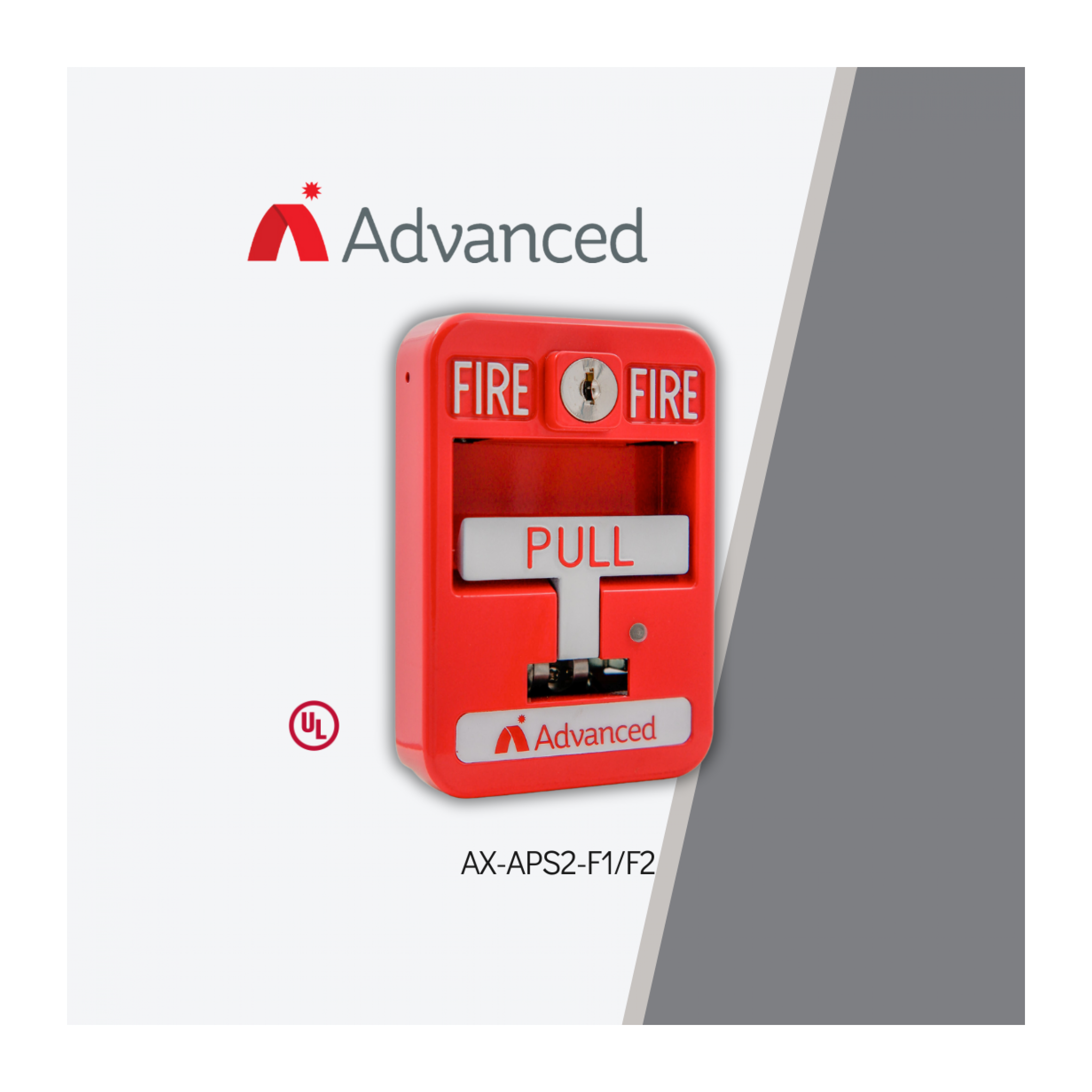

Advanced Intelligent Manual Pull Stations (AX-APS2) consist of a family of versatile, low profile, and high quality addressable manual pull stations. Easily recognizable during a fire situation, the AX-APS2 stations are constructed of rugged die-cast metal for long life and reliability, with a high gloss red finish and raised white “FIRE” lettering. A red LED on the front of the station flashes during polling and turns on steady in alarm. Integrated into the station is a Form C relay output that activates when in alarm. All models are fitted with a common key-lock for resetting (CAT B / CAT 30) which is common with the panel key. The AX-APS2 stations are ETL Listed to the ANSI/UL- 38 Standard and have been found to be in compliance with the latest requirements of the Americans with Disabilities Act (ADA). Activation of the pull station meets the requirements for five pound maximum pull force, and the single hand activation. Available in either single (AX-APS2-F1) or dual (AXAPS2-F2) action configuration, the AX-APS2 stations are designed to prevent false alarms when bumped, jarred or shaken. The dual action AX-APS2-F2 further deters malicious false alarms by requiring a two-process function for activation; first push the “PUSH” bar inwards which then allows the “PULL” bar to be grasped and pulled outward.

  • FEATURES:
    • ADA Compliant

    • Single or Dual Action

    • Rugged Die-Cast Metal Construction

    • Red Status LED

    • Integrated Form C Relay Contact

    • Low Profile, High Visibility Design

    • Visual Indication of Activation including Red Status LED

    • Surface or Semi-Flush Mount

    • Available in Special Application Colors

    • Key-Lock Reset

  • LISTINGS AND APPROVALS:
    • ETL ANSI/UL 38 Listed: 3186781NYM-001

    • ETL ANSI/UL 864 Listed: 101564744NYM-001

    • CSFM Approved: 7165-1713:0101

    • NYCFD COA #6105A2

Model: AX-APS2-F1/F2


Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Operating Voltage

  • Operating Voltage 17-28 VDC, with Communication Pulses 5-9 VDC

Operating Current

  • Quiescent : 1.7 mA
  • Alarm : 2.7 mA

Operating Temperature

  • 32 º F (0 º C) to 120 º F (49 º C), for Indoor Use Only

Dimensions

  • 4 3/4 ” H x 3 1/4 ” W x 1.1” D
  • With Surface Mount Backbox : 4 3/4 ” H x 3 1/4 ” W x 2 1/4 ” D (Cast or Sheet Metal)

Weight

  • 1.1 lb

Analog Value

  • 16 = Normal, 64 = Alarm, 4 = Trouble

Address Range

  • 1 - 126 (DIP Switch Programmable)

Color

  • Red with Raised White Letters, White “PULL” Bar with Raised Red Letters
Brochure

AXIS AX INTELLIGENT MANUAL PULL STATIONS

AX-APS2-F1/F2 DATA SHEET
