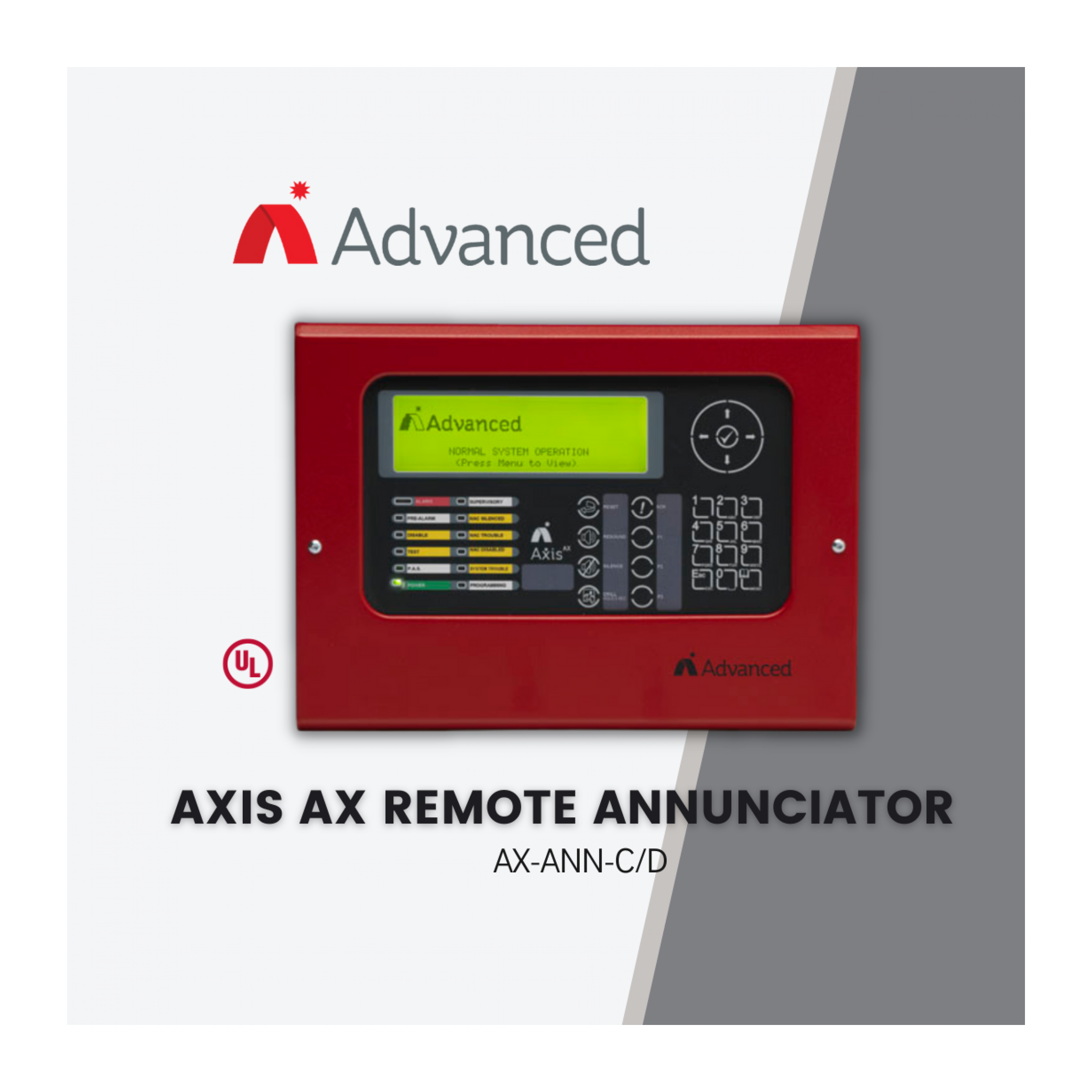

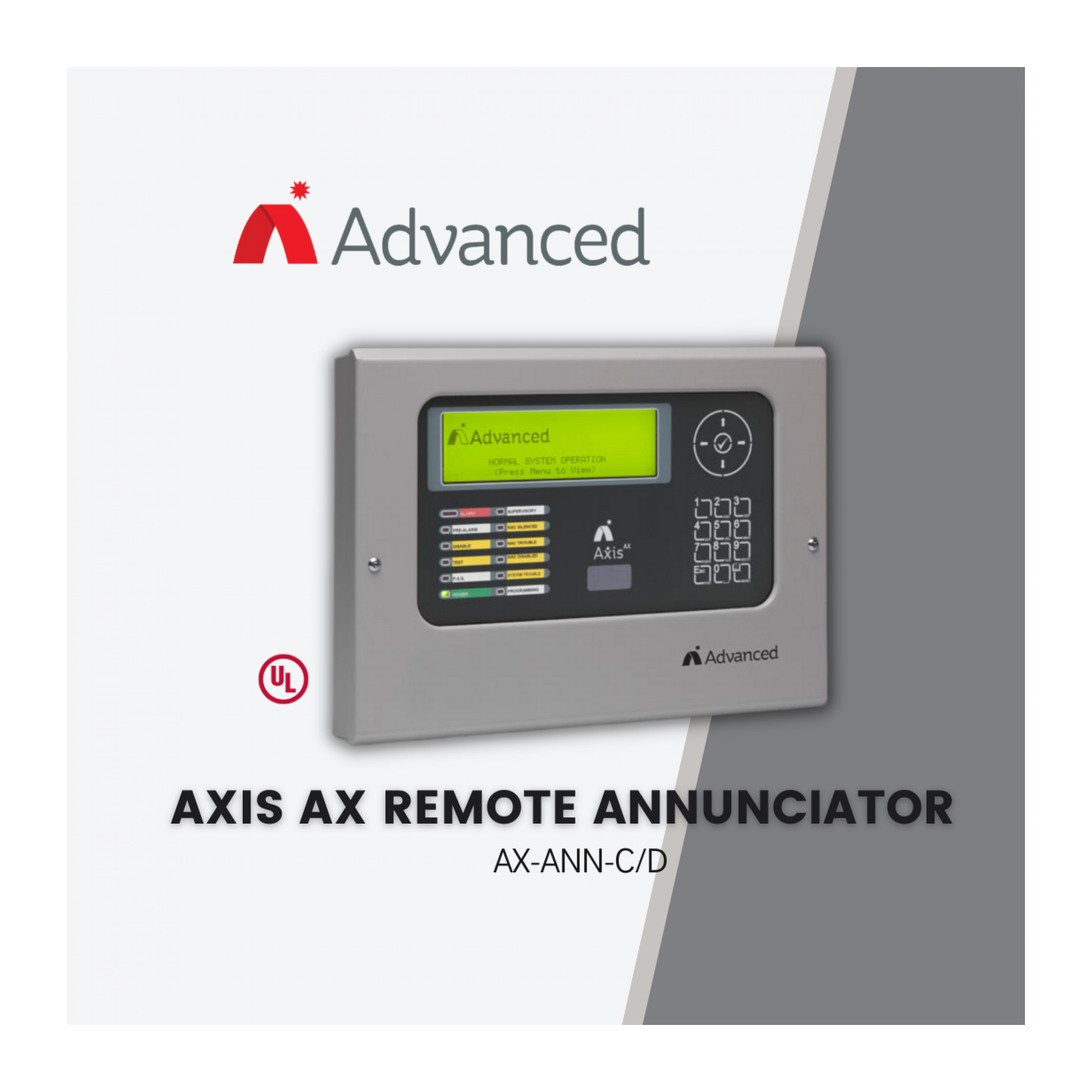

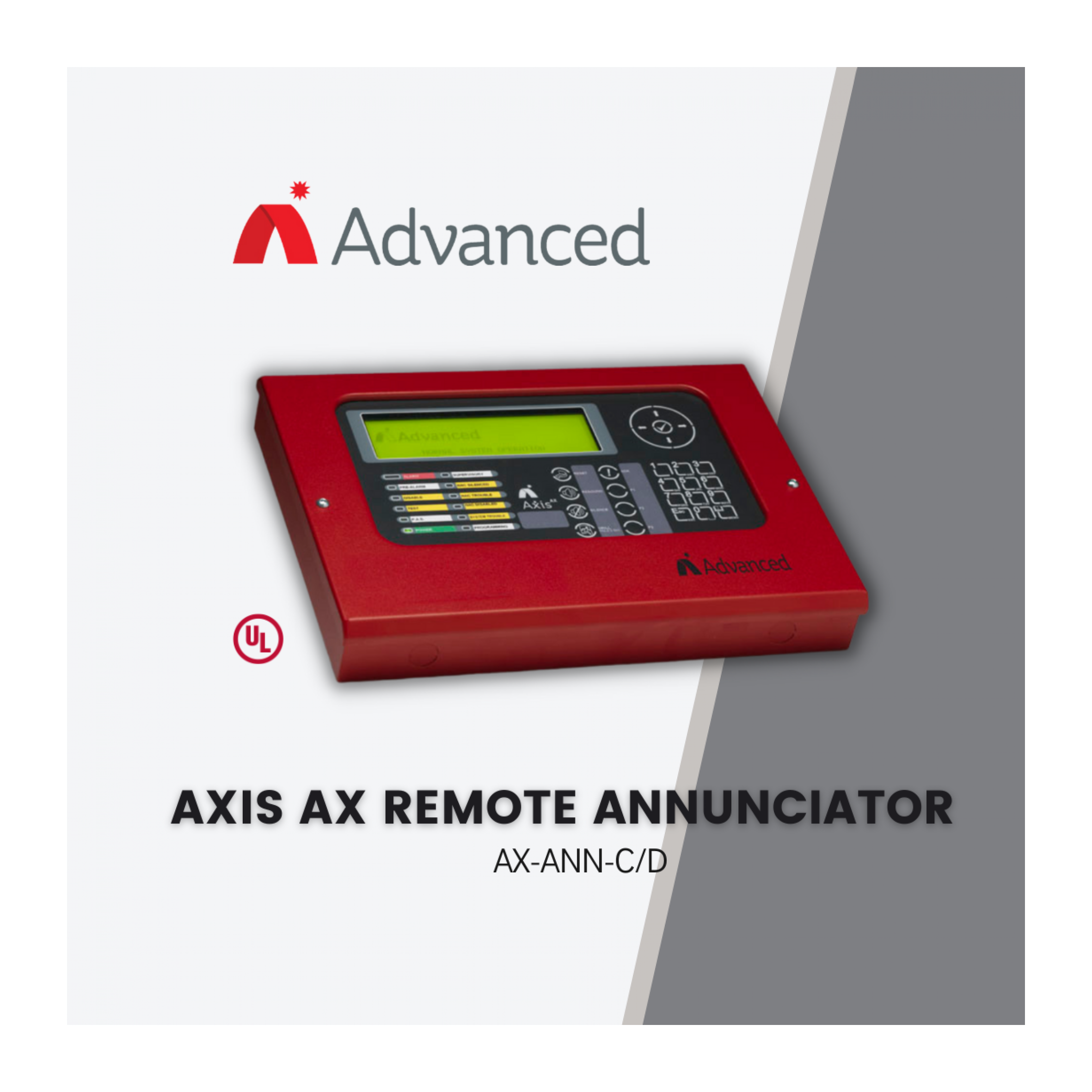

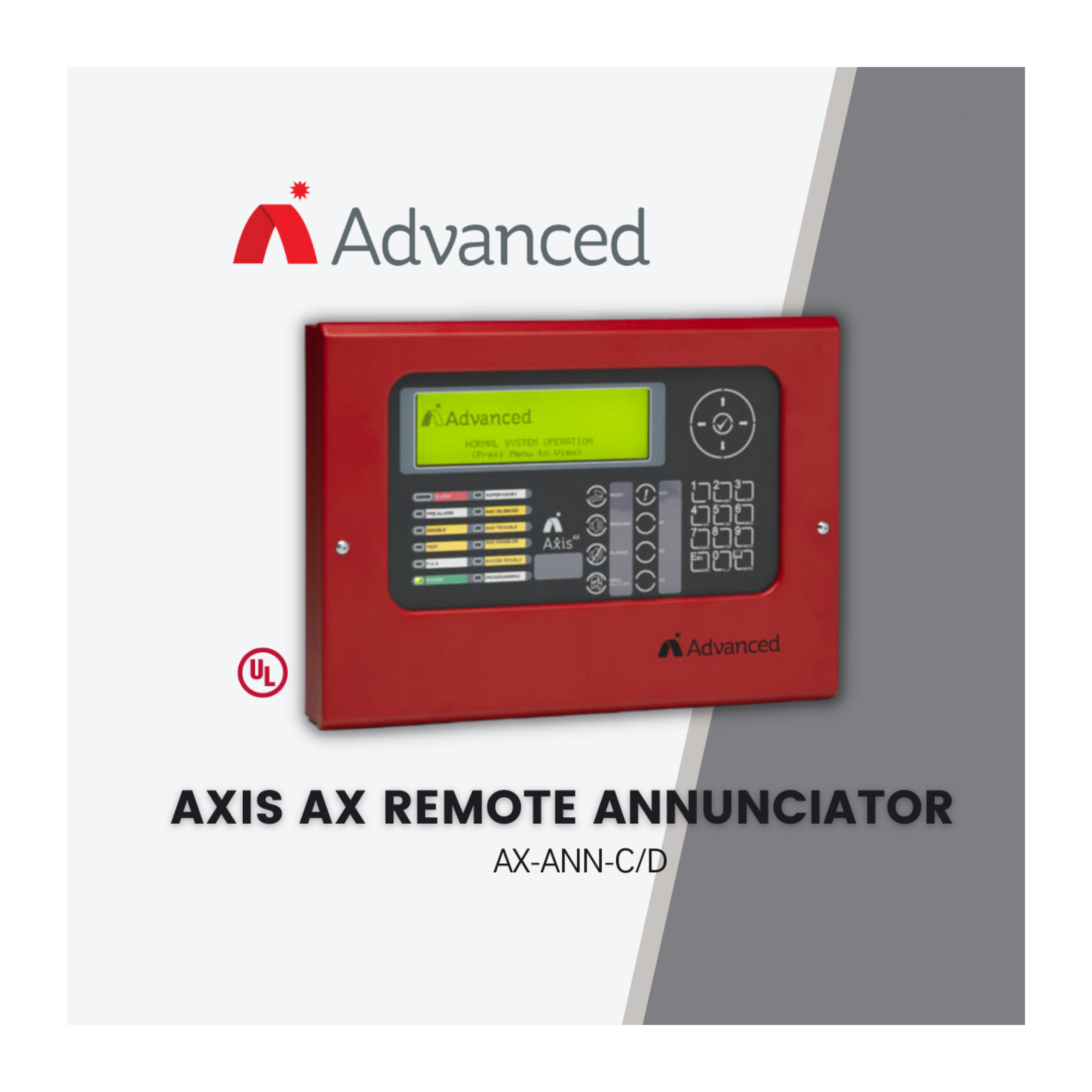

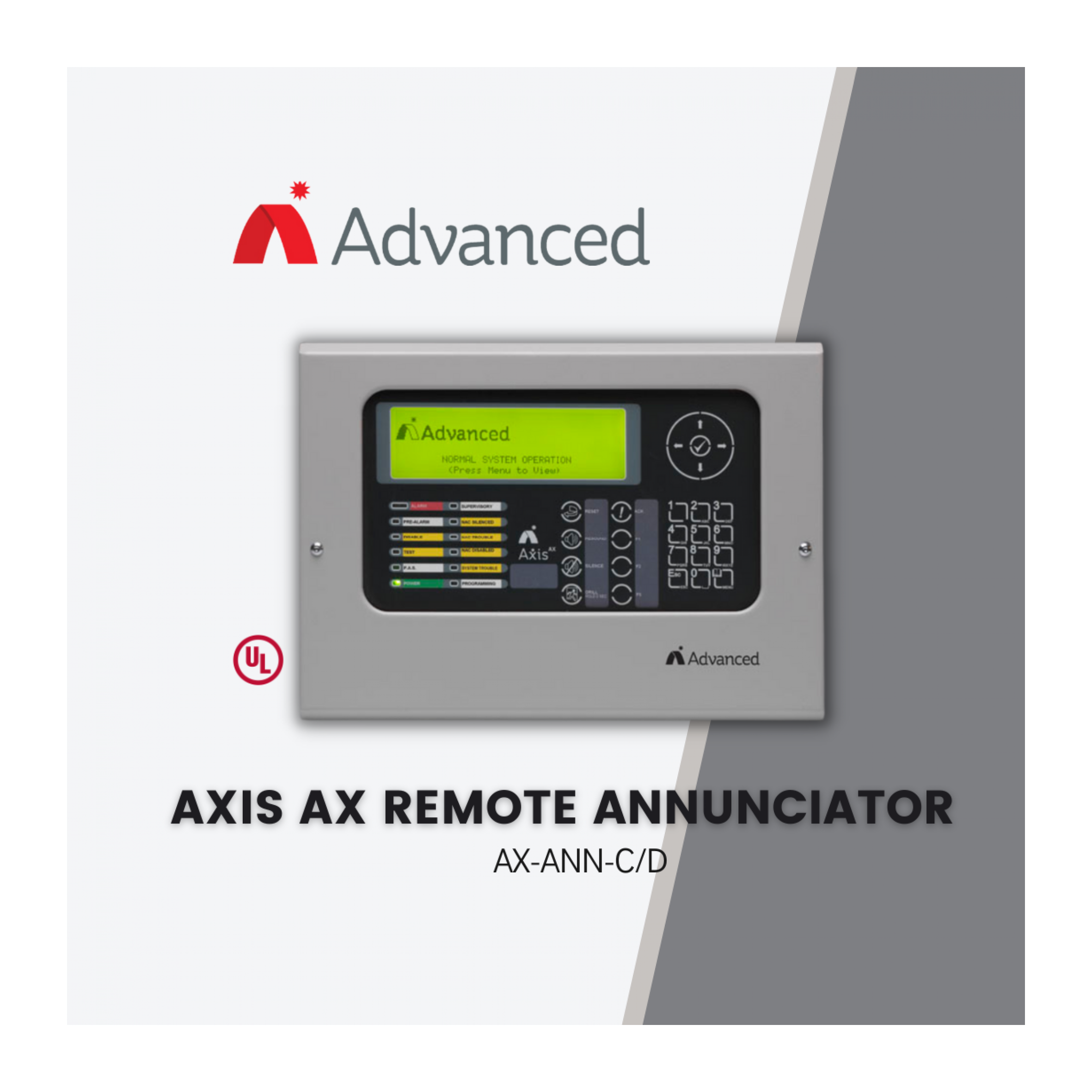

Providing superior flexibility and customization to an Axis AX Series Intelligent Fire Alarm Control Panel installation, the Axis AX Series Remote Graphical LCD Annunciators are available in two (2) models, the AX-ANN-C and AX-ANN-D. The AX-ANN-C provides annunciation and programmable peer-to-peer system controls while the AX-ANN-D provides annunciation only. To prevent unauthorized access to the AXANN-C, the unit can be set to password required access for all controls, or an optional access enable keyswitch (p/n: AX-KSW) can be installed, thereby restricting access to the Reset, Silence, Resound and Drill functions without first activating the keyswitch. Designed to adapt to any installation the graphical annunciators are compact and attractive.
-
FEATURES:
-
Advanced User Interface with Graphical LCD
-
Vector Reporting of Events
-
Full System Control or Annunciation Only
-
Dedicated System & Navigation Keys
-
AD-NeT-PluS Peer-to-Peer Network Compatible
-
Compact, Attractive Appearance
-
Backlit 240 x 64 Graphical LCD Display
-
Style 4 or 7 Network Communications
-
Multiple Language Adaptability
-
Optional Access Enable Key-Switch
-
5000ft Maximum Cable Length
-
Supervised External Trouble Input
-
-
LISTINGS AND APPROVALS:
-
ETL ANSI/UL 864 Listed: 101564744NYM-001
-
CSFM Approved: 7120-1713:0100
-
NYCFD COA #6105
-
Model: AX-ANN-C/D
| SPECIFICATIONS SPECIFICATIONS | DESCRIPTION DESCRIPTION |
|---|---|
|
Display Backlit |
|
|
Input Voltage (DC) |
|
|
Standby Current |
|
|
Operating Current |
|
|
LED Indicators |
|
|
Keypad |
|
|
Controls (AX-ANN-C Only) |
|
|
External Monitoring Input |
|
|
Serial Port |
|
|
Enclosure |
|
|
Color |
|
|
Dimensions (inches) |
|
|
Weight |
|
