AX INTEGRATED AUDIO INTELLIGENT FIRE ALARM CONTROL PANELS

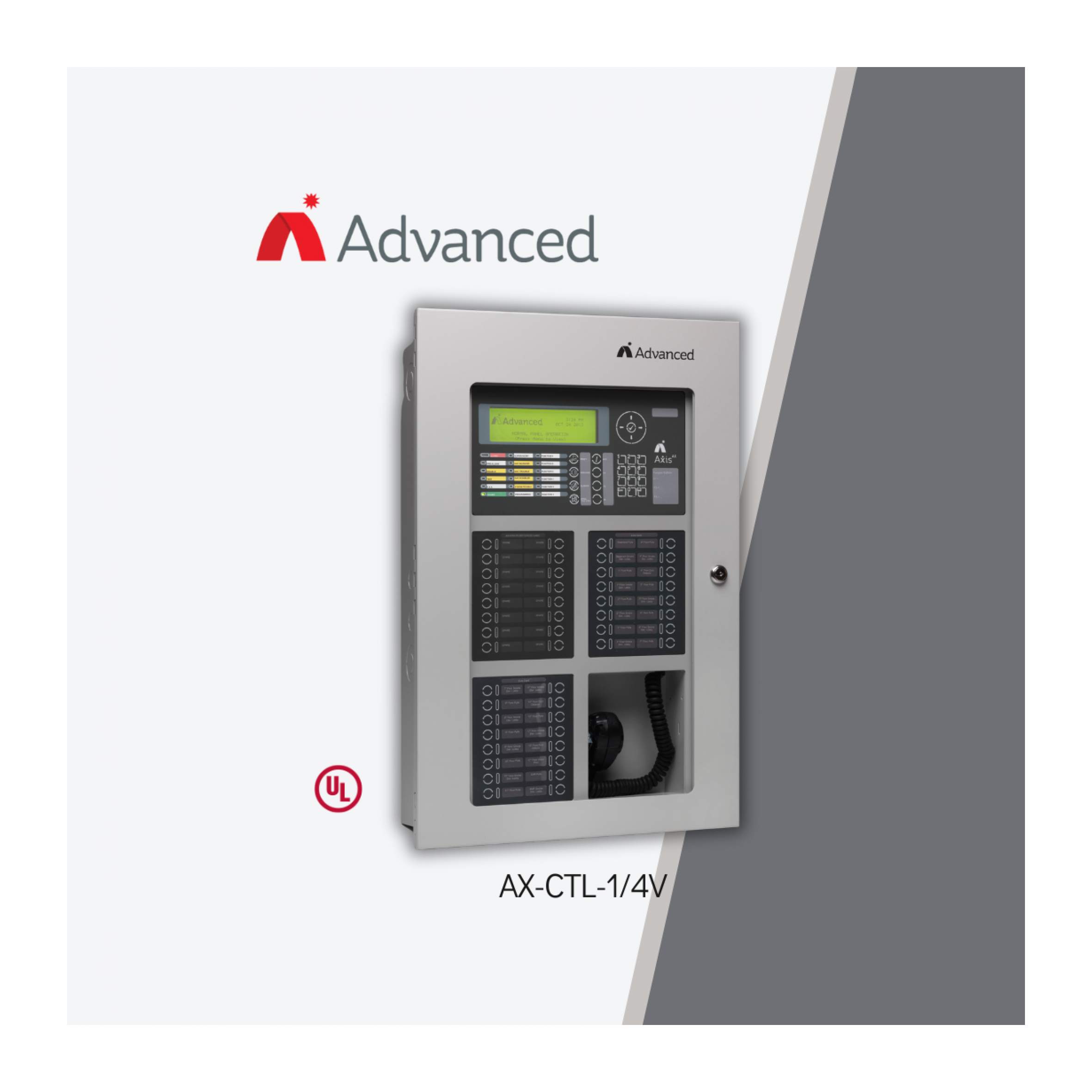

The models in the “V” Series include the AX-CTL-1V (single SLCloop), AX-CTL-2V (two SLC loops) and the AX-CTL-4V (four SLC loops). In addition to providing 80 Watts of audio power, each panel comes equipped with an AV-MIC (microphone) for live voice paging. Paging overrides any pre-recorded audio messages that are being generated. By installing one or more optional AX-ASW-16, Switch LED Modules selective zone or area paging can be performed. Modular construction permits field configuration of a panel(s) to suit specific installation requirements. Additional modules including, the AX-ASW-16, Switch LED Module, and the AX-012, Thermal Strip Printer, may by mounted to the inner door of the panel. A secure outer door with plexiglass permits viewing of these modules as well as the microphone. The AV-AMP-80, Audio Amplifier Module, provides two Class A or B, 40-Watt Audio Notification Appliance Circuits (ANACs). Sixteen programmable, flash-based, digital messages are freely programmable along with message repeat cycles and selection/activation of either or both output channels. Trouble conditions such as speaker wiring faults and amplifier malfunction are annunciated at the fire control panel per industry codes and standards.

  • FEATURES:

    • Standalone or Networked Integrated Audio

    • Fully Scalable, up to 200 Intelligent Panels

    • AV-VB Audio Booster w/Synchronized Audio

    • Remote Microphone Channel

    • IP Interface – Monitoring/Control/Email Notification

    • Powerful yet Simple I/O Relationship Programming

    • Mass Notification Programming Options

    • AV-VB Boosters expand audio wattage (16 per panel)

    • Integrated 80 Watt Digital Audio Features include: - 2 Class A or B, 40 Watt, 25 Volt RMS Outputs - Programmable 16 Channel Message Generator - Automatic one-to-one Backup Capability

    • Local internally mounted Microphone and Switches provide: - All Call, Alert and Selective Messaging and Paging by Zone or Area - Up to 504 Analog Addressable Points - Synchronized Audio and Visual Control (Panel or network wide.

  • LISTINGS AND APPROVALS:

    • ETL ANSI/UL 864/1711/1481 Listed: 101564744NYM-001,100027836NYM-001c

    • CSFM Approved: 7165-1713:0101

    • NYCFD COA #6105A2

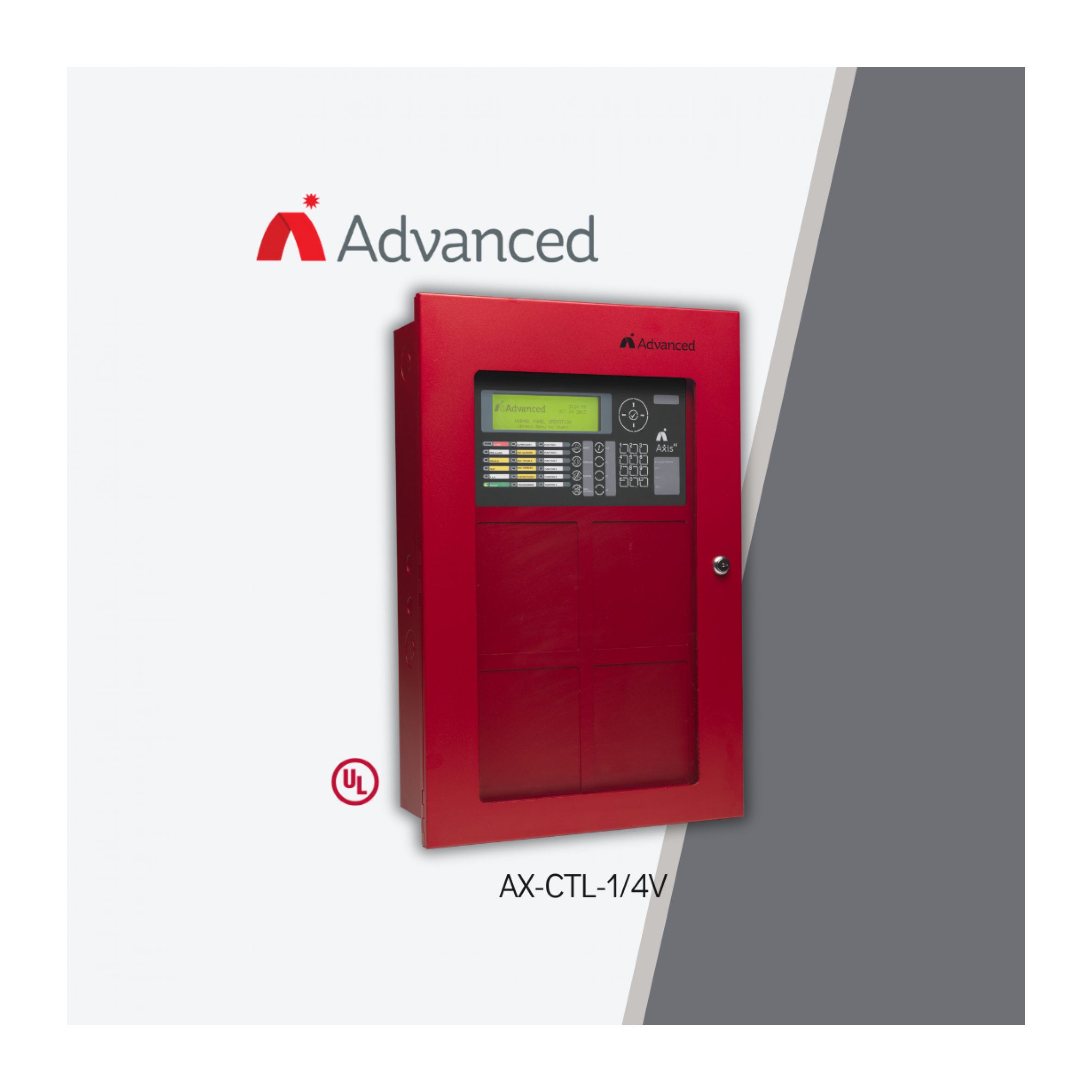

Model: AX-CTL-1/4V

Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Operating Voltage
  • 120 VAC (1.4A) - 240 VAC (0.7A), 50/60Hz

System-Brown-Out
  • 98 VAC nominal

Battery Circuit
  • Charging Voltage : 27.4 VDC nominal
  • Temp. Compensated Charging Current : 2 Amp
  • Battery Derating Factor : 0.83A
  • Battery Capacity : 7 Ah (minimum), 48 Ah (maximum)
  • Battery Fuse: 5A @ 240 VAC, Time Delayed, Ceramic, High Breaking (In-line Wire Link)

Fire, Supervisory, and Trouble Relays (Power Limited - When utilizing system power)
  • Type: Form “C”
  • Rating : 1A @ 30 VDC/VAC
  • Trouble Relay: Normally Active (Fail-safe operation)

Auxiliary Power Outputs
  • RESETTABLE (Power Limited) Voltage: 24 VDC Current: 5A Reset Time: 10 - 15 Seconds
  • NON-RESETTABLE Voltage : 24 VDC Current: .5A

Humidity
  • 85% RH

Temperatures
  • Operating : 32 o F - 120 o F (0 o C - 49 o C)
  • Recommended Room : 60 o F - 86 o F (15 o C - 27 o C)

Enclosure Dimensions
  • Back Box: 22.6”H x 14.5”W x 5.5”D
  • Housing : 24.1”H x 16”W x 6.3”D

SLC Loop (Power Limited)
  • Class (Style) : Class A or B (Style 4, 6 or 7)
  • Voltage : 24 VDC
  • Minimum Return Voltage : 17 VDC
  • Current: .5A

NAC Circuits (Power Limited)
  • Class (Style) : Class A or B (Class B end-of-line = 10K)
  • Voltage : 24 VDC (Filtered and regulated)
  • Minimum Return Voltage : 16 VDC
  • Current : 2A (Each)
  • Maximum Voltage Drop : 3 VDC
  • Maximum Line Impedance : 1.5 Ω

RS232
  • Supervised, Optically Isolated
  • Baud Rate : 9600
  • Parity : None
  • Data Bits: 8
  • Stop Bits: 1

Base Card Operating Current
  • QUIESCENT / ALARM
  • AX-CTL-1 : 110 mA 195 mA
  • AX-CTL-2 : 110 mA 195 mA
  • AX-CTL-4 : 175 mA 260 mA

AV-AMP-80
  • Input Voltage/Current: 24 VDC (Operating range 15-30 VDC), Quiescent .035A / Alarm .220A plus speaker load
  • Amplifier #1 Output : 40 Watts @ 25 Vrms, Class A or B (Class B end-of-line = 4.7K)
  • Amplifier #2 Output : 40 Watts @ 25 Vrms, Class A or B (Class B end-of-line = 4.7K)
  • Activation : RS-485 (PBus) or Contact Closure
  • AV-MIC : Supervised Microphone Input
Brochure

AX INTEGRATED AUDIO INTELLIGENT FIRE ALARM CONTROL PANELS

AX-CTL-1/4V DATA SHEET
