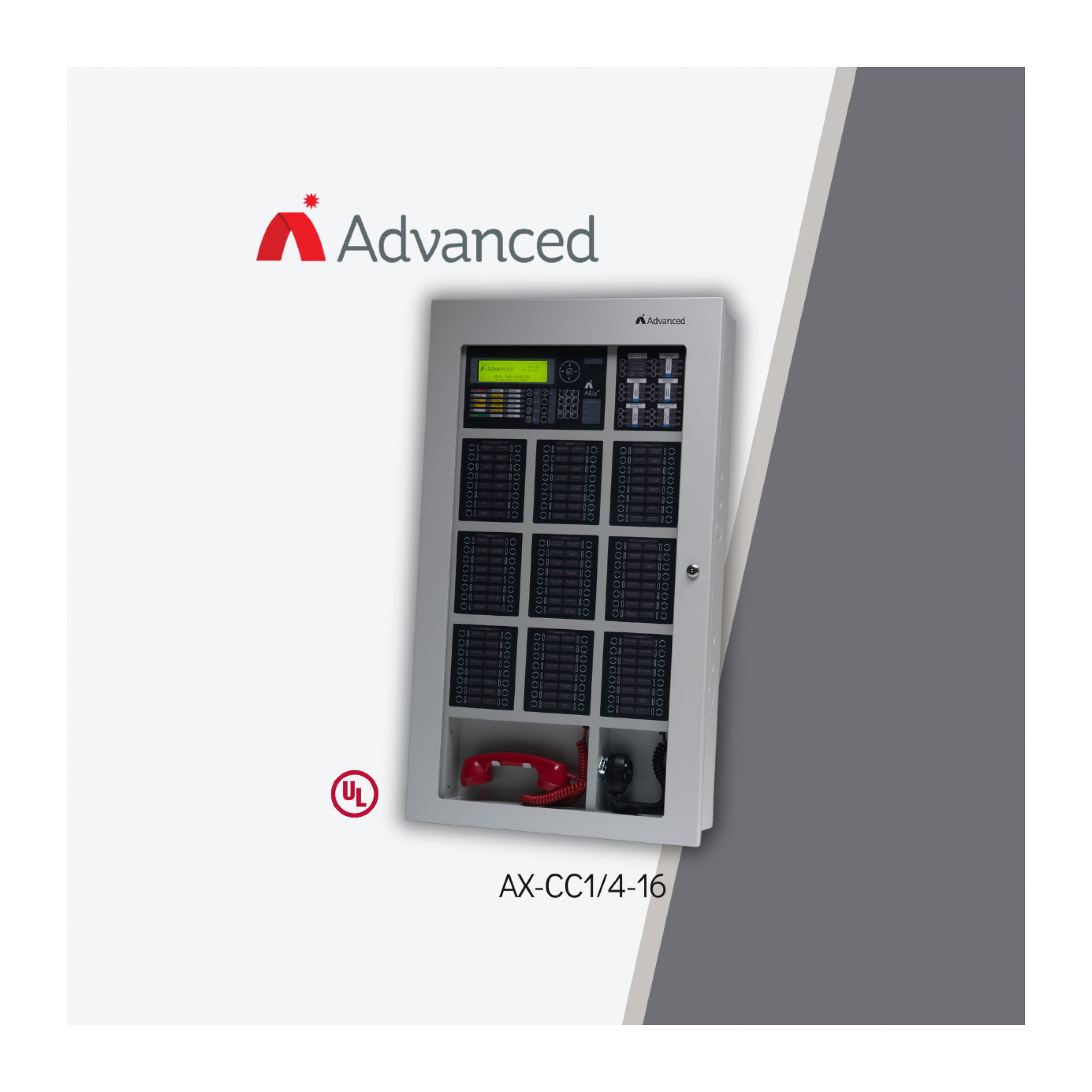

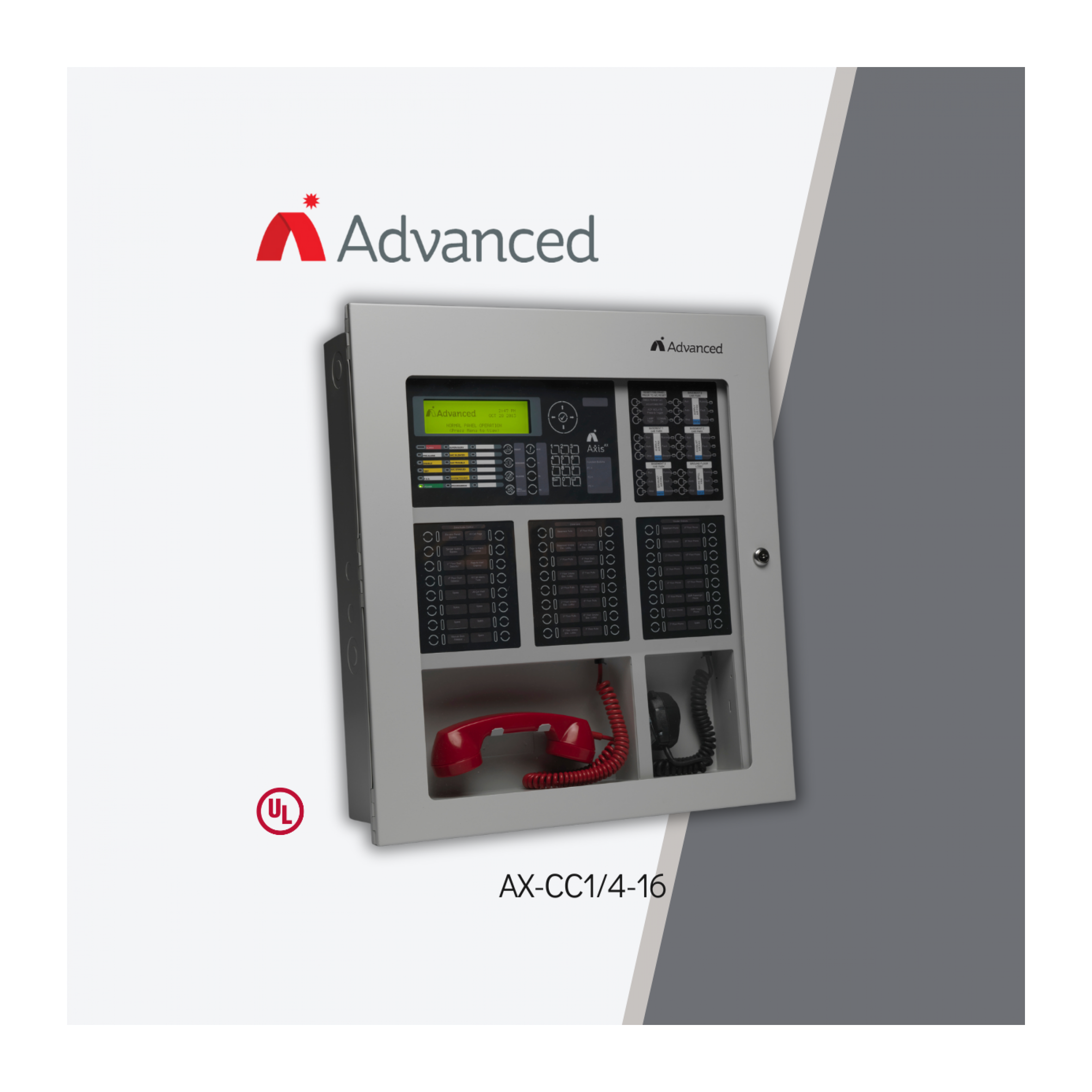

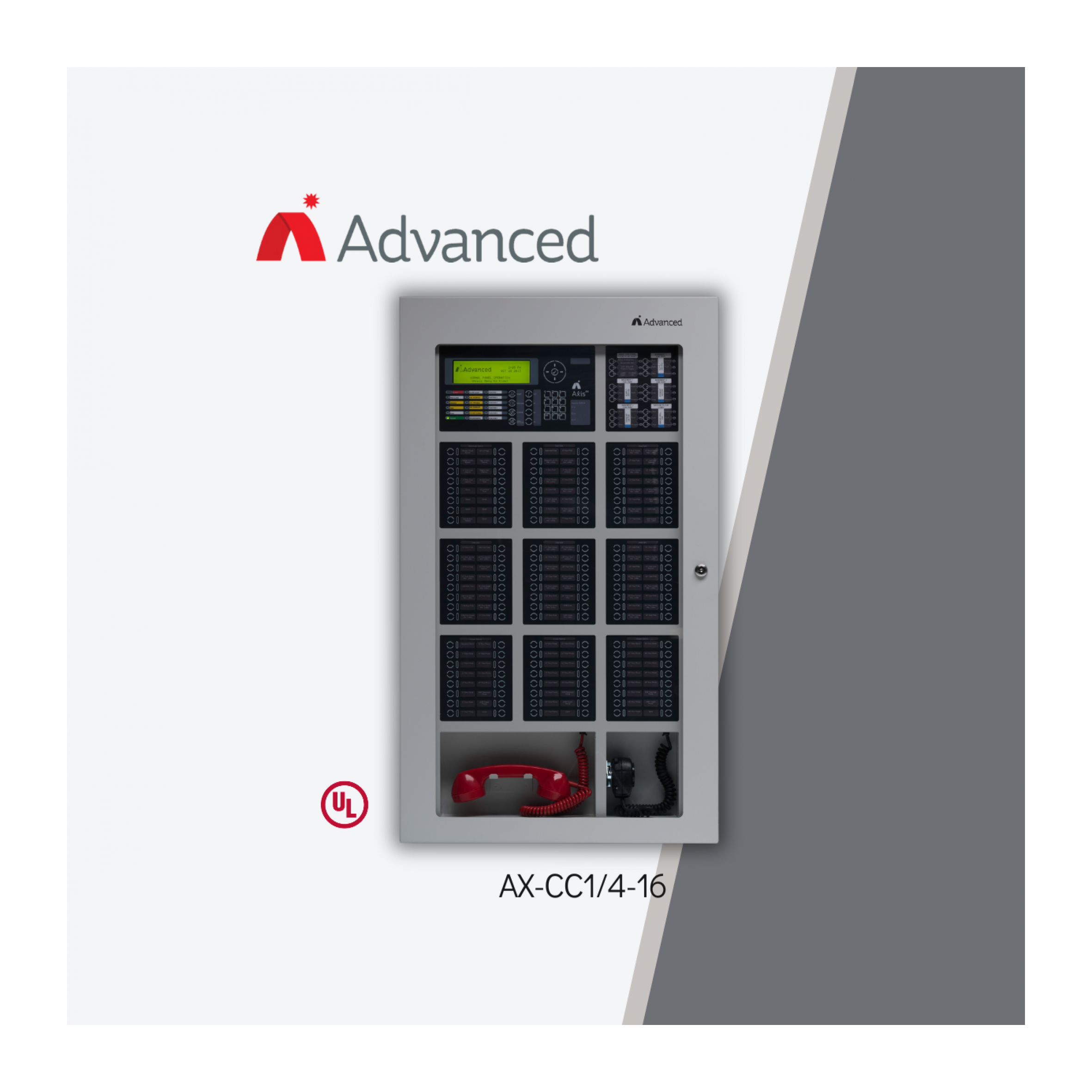

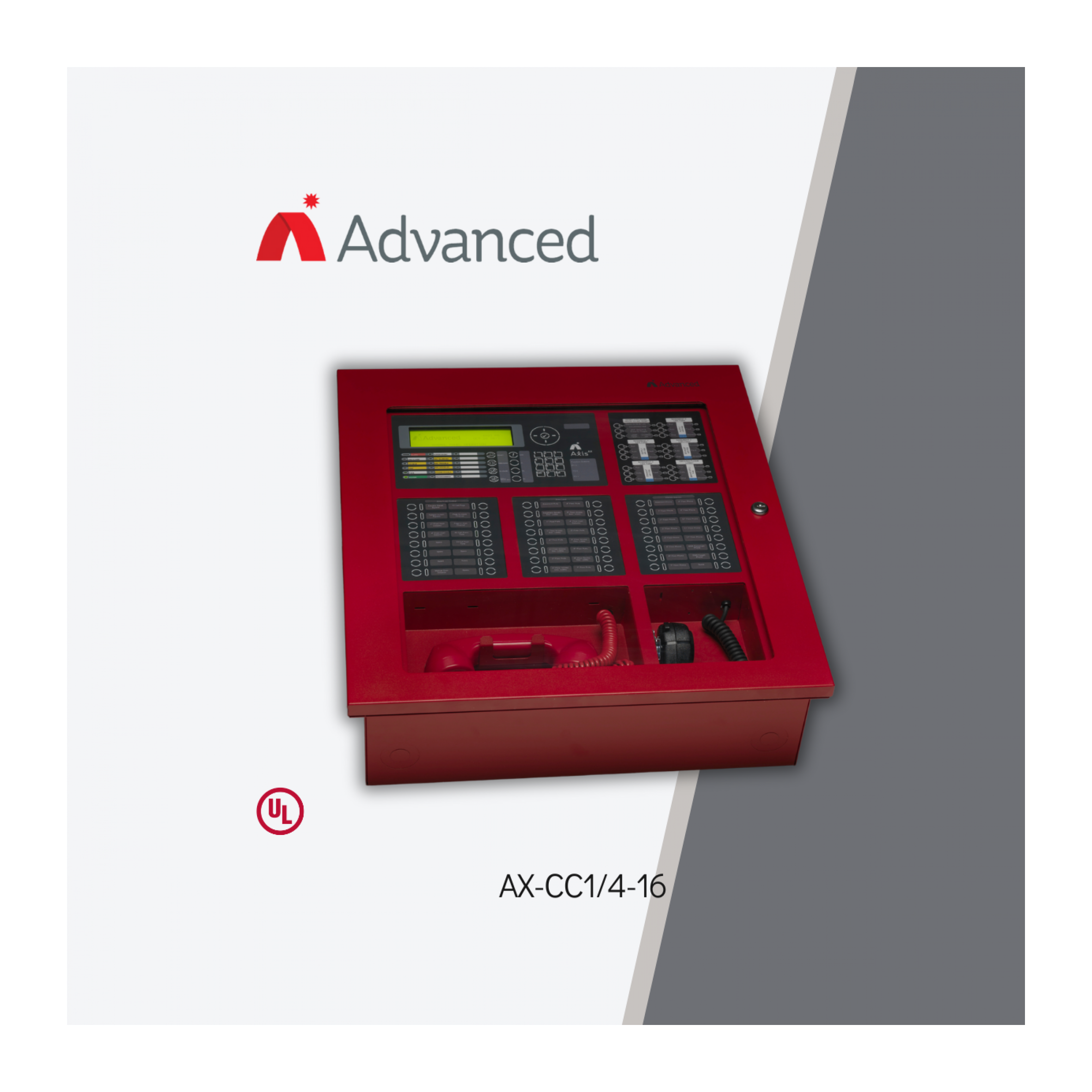

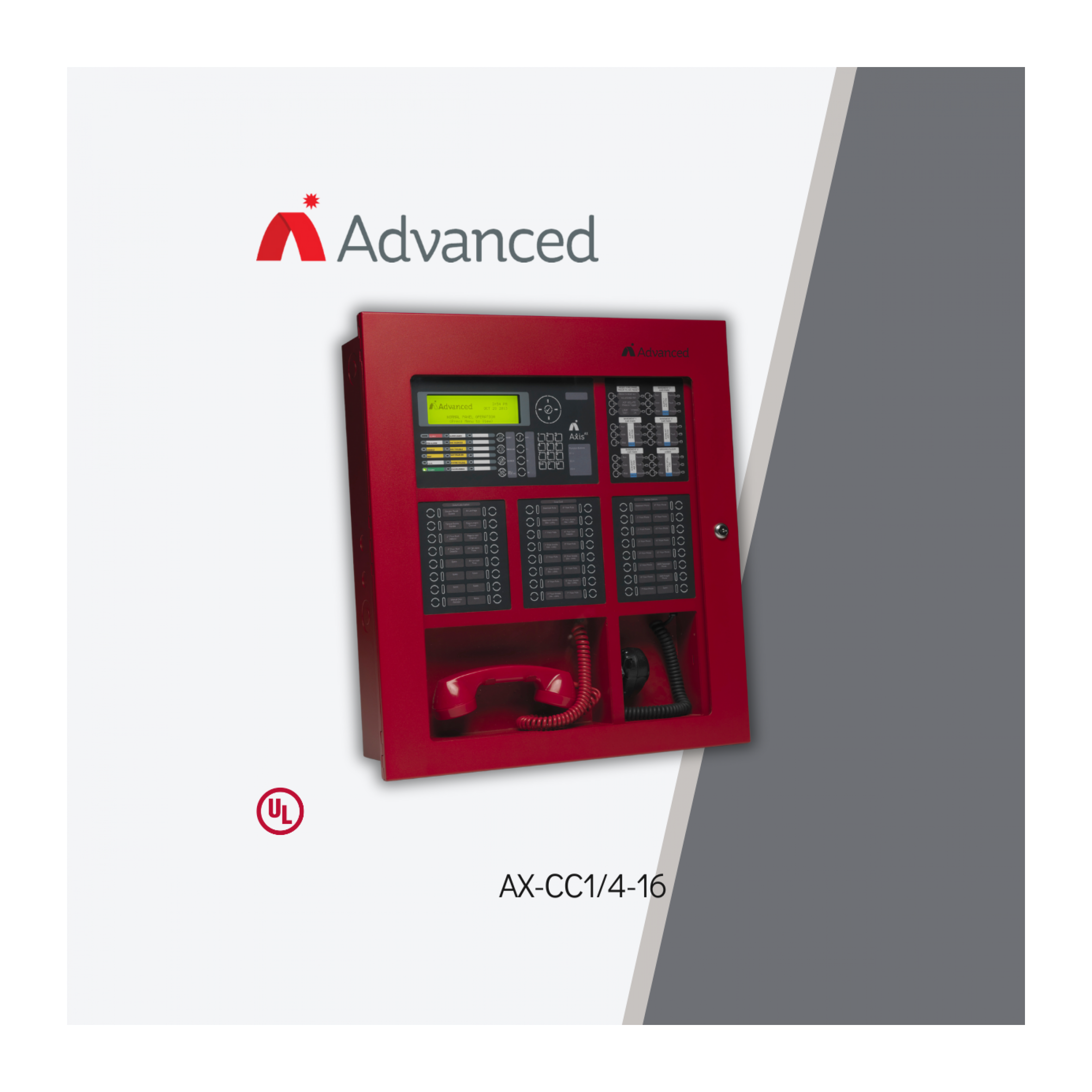

AXIS AX 1 TO 4 LOOP AXIS AX COMMAND CENTER

Axis AX Command Centers are built on the backbone of our Axis intelligent fire panels to support a wide variety of configurations and applications. Command Centers can be configured in the factory or, as all elements are individually approved, supplied in modular format for easy expansion and customization. All of our Command Centers are fully compatible with Axis AX audio and telephone options. Command centers can be configured for master control or peer-to-peer. Master control mode allows only one command center to manually operate audio and main system control functions. Advanced’s Riser 6 Audio Module can be mounted inside the command center or remotely for added security.

  • FEATURES:

    • 1, 2 and 4 SLC Loop Options

    • Integral 80 Watt Amplifier

    • Built-in Paging Microphone

    • Configured with One AX-ASW-16 Switch LED Module

    • Networkable – up to 200 Intelligent Panels

    • Integrated 80 Watt Digital Audio Features include: - 2 Class A or B, 40 Watt, 25 Vrms Outputs - Programmable 16 Channel Message Generator

    • Local internally mounted Microphone and Switches provide: All call, Alert and Selective Messaging and Paging by Zone or Area

    • Up to 504 Analog Addressable Points

    • Multiple Command Centers w/Control Options

    • Mass Notification Programming Options

    • Synchronized Audio and Visual Control (Panel or Network Wide)

    • AV-VB Boosters expand Audio Wattage (16 per panel)

  • LISTINGS AND APPROVALS:

    • ETL ANSI/UL 864/1711/1481 Listed: 101564744NYM-001, 100027836NYM-001c

    • CSFM Approved: 7165-1713:0101

    • NYCFD COA #6105A2

Model: AX-CC1/4-16

Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Operating Voltage
  • 120 VAC (1.4A) - 240 VAC (0.7A), 50/60Hz

System-Brown-Out:
  • 98 VAC nominal

Battery Circuit
  • Charging Voltage: 27.4 VDC nominal
  • Temp. Compensated Charging Current: 2 Amp
  • Battery Derating Factor: 0.83A
  • Battery Capacity: 7 Ah (minimum), 48 Ah (maximum)
  • Battery Fuse: 5A @ 240 VAC, Time Delayed, Ceramic, High Breaking (In-line Wire Link)

Fire Supervisory, and Trouble Relays (Power Limited - When utilizing system power)
  • Type : Form "C"
  • Rating: 1A @ 30 VDC/VAC
  • Trouble Relay : Normally Active (fail-safe operation)
  • Type : Form "C"
  • Rating: 1A @ 30 VDC/VAC
  • Trouble Relay : Normally Active (fail-safe operation)

Auxiliary Power Outputs (Power Limited)
  • RESETTABLE Voltage: 24 VDC Current: 0.5A Reset Time: 10-15 Seconds
  • NON-RESETTABLE Voltage : 24 VDC Current : 0.5A

Humidity
  • 85% RH

Temperatures
  • Operating: 32 o F - 120 o F (0 o C - 49 o C)
  • Recommended Room: 60 o F -86 o F (15 o C - 27 o C)

Enclosure Dimensions
  • Back Box : 22.6"H X 20.3"W X 5.5"D
  • Housing : 24.1"H X 21.5"W X 6.3"D

SLC Loop (Power Limited)
  • Class (Style) : Class A or B (Style 4, 6 or 7)
  • Voltage : 24 VDC
  • Minimum Return Voltage: 17 VDC
  • Current : 0.5A

NAC Circuits (Power Limited)
  • Class (Style) : Class A or B
  • Voltage : 24 VDC (filtered and regulated)
  • Minimum Return Voltage : 16 VDC
  • Current: 2A (each)
  • Maximum Voltage Drop : 3 VDC
  • Maximum Line Impedance : 1.5Ω

RS232 Supervised, Optically Isolate
  • Parity: None
  • Baud Rate: 9600
  • Data Bits:8
  • Stop Bits: 1

Base Card Operating Current
  • QUIESCENT / ALARM
  • AX-CTL-1PCB: 110 mA 195 mA
  • AX-CTL-2PCB : 110 mA 195 mA
  • AX-CTL-4PCB : 175 mA 260 mA

AV-AMP-80
  • Input Voltage (DC) : 24 VDC (operating range 15-30 VDC)
  • Amplifier #1 Output: 40 Watts @ 25 Vrms, Class A or B Wiring
  • Amplifier #2 Output : 40 Watts @ 25 Vrms, Class A or B Wiring
  • Activation: RS-485 (PBus) or Contact Closure
  • AV-MIC: Supervised Microphone Input
Brochure

AXIS 1 TO 4 LOOP AXIS AX COMMAND CENTER

AX-CC1/4-16 DATA SHEET
