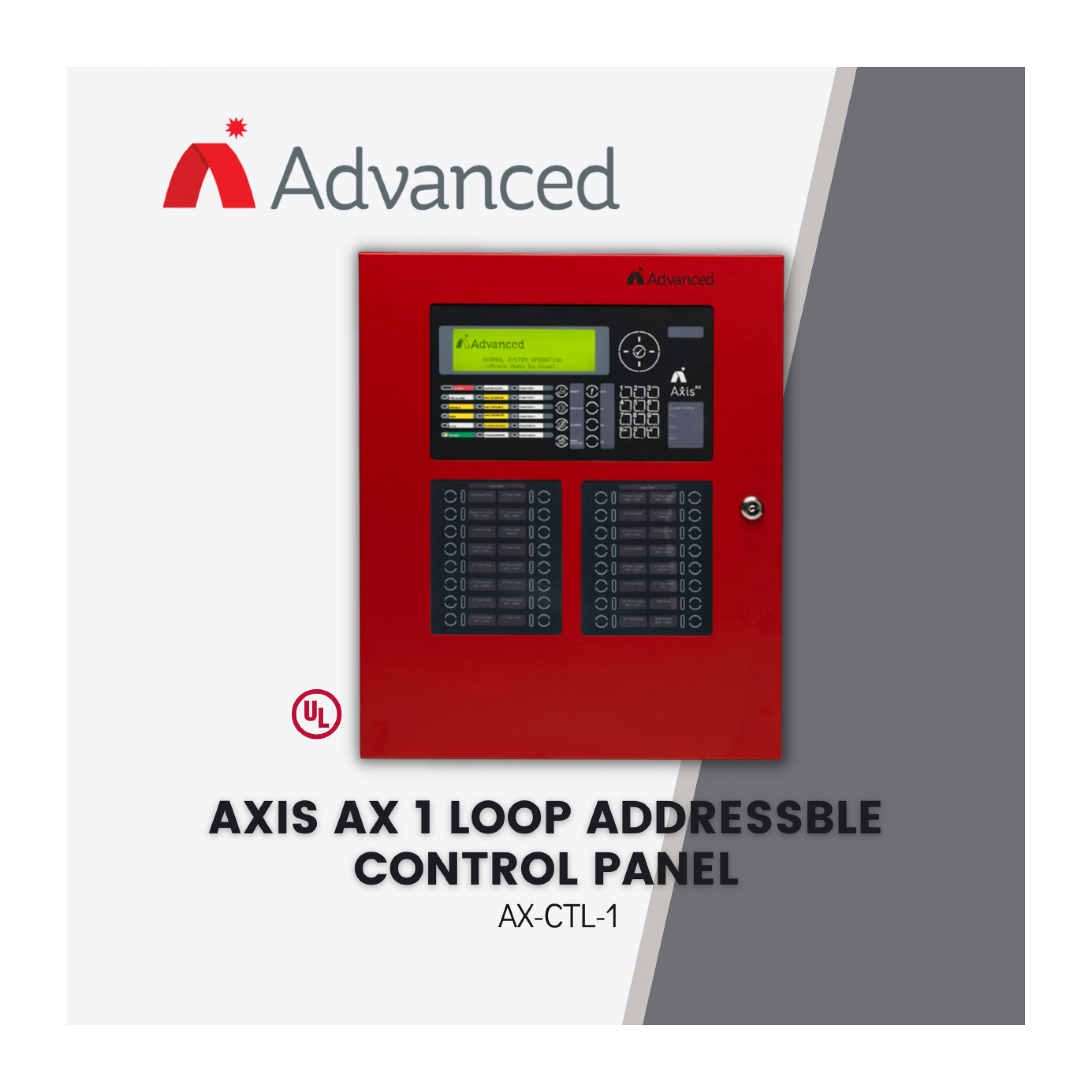

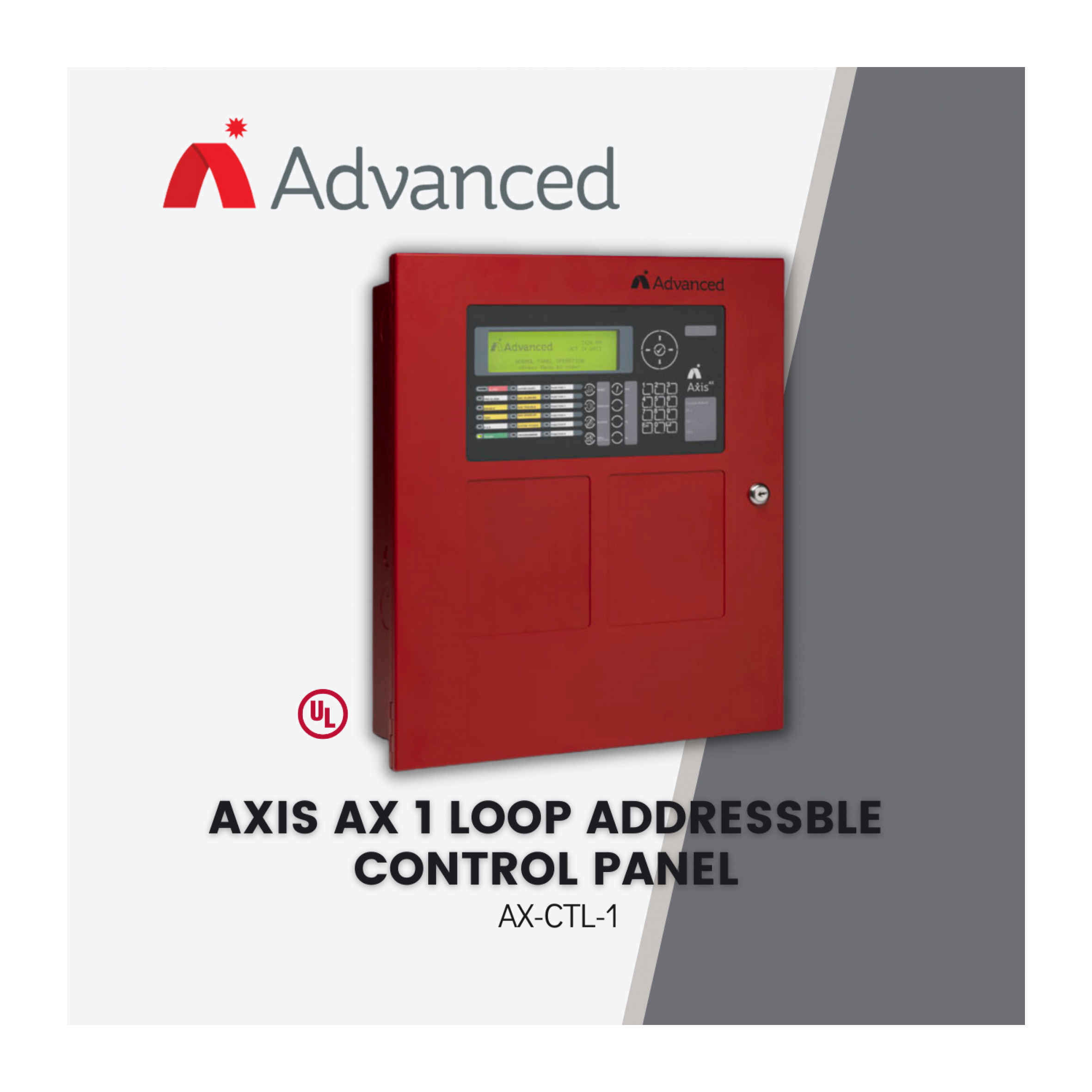

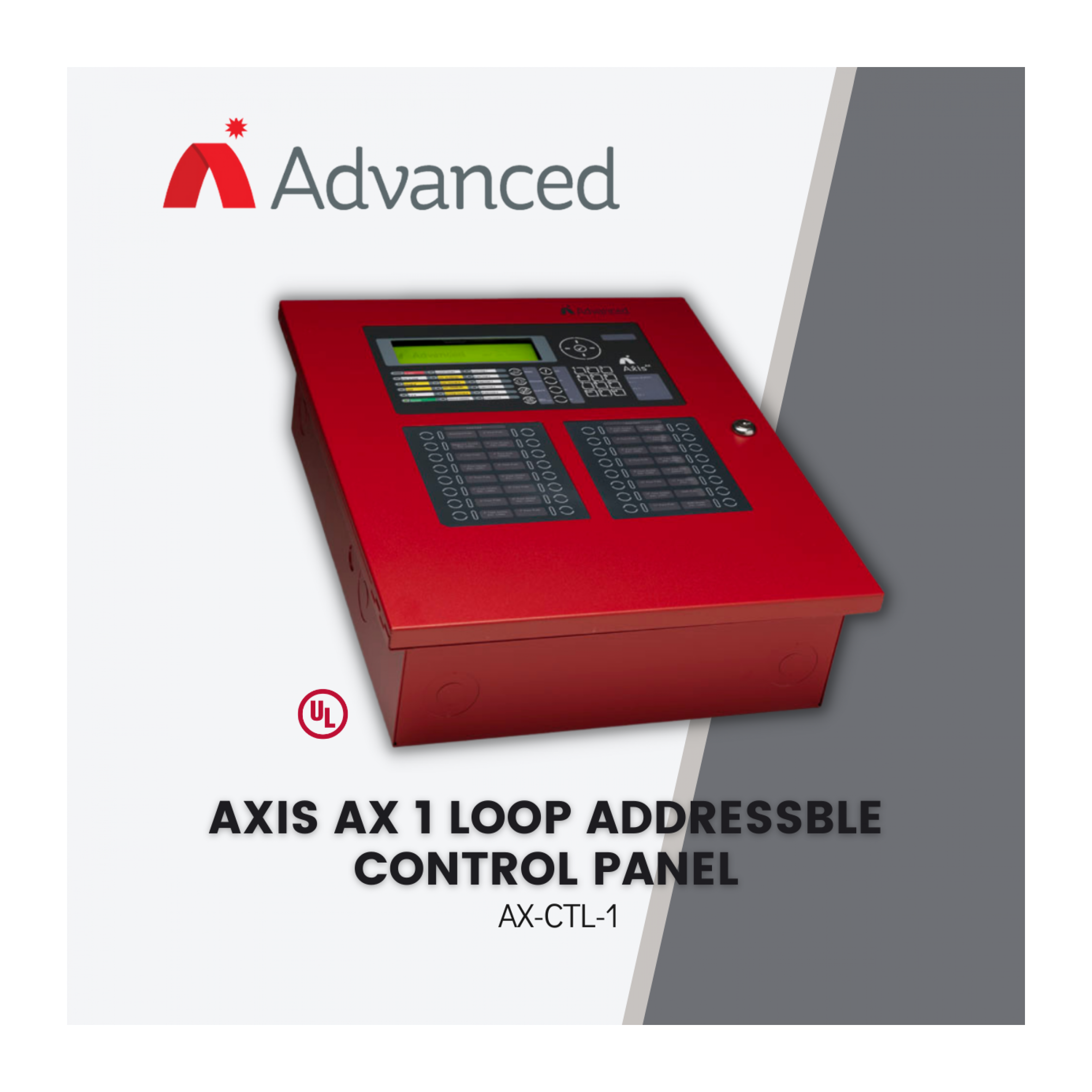

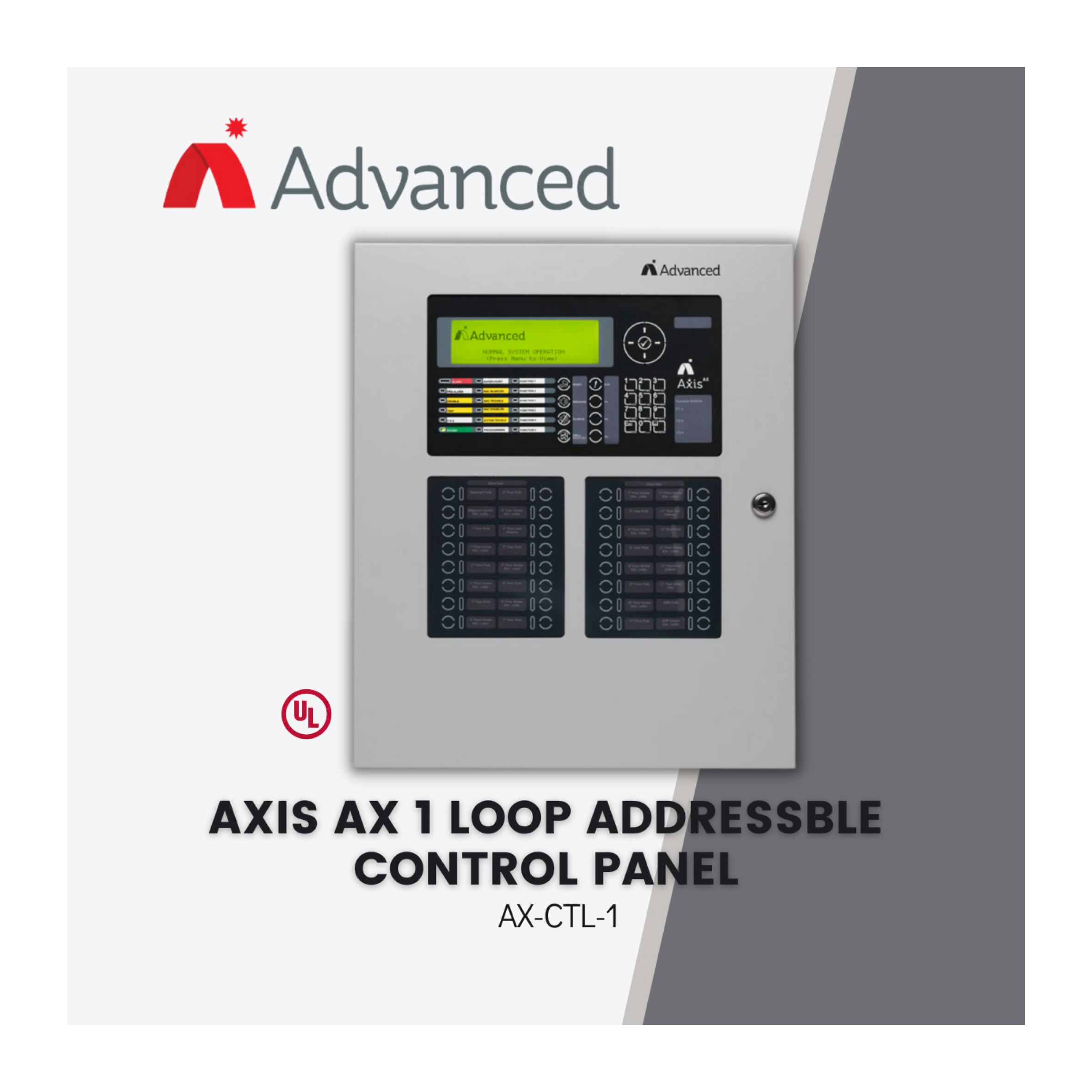

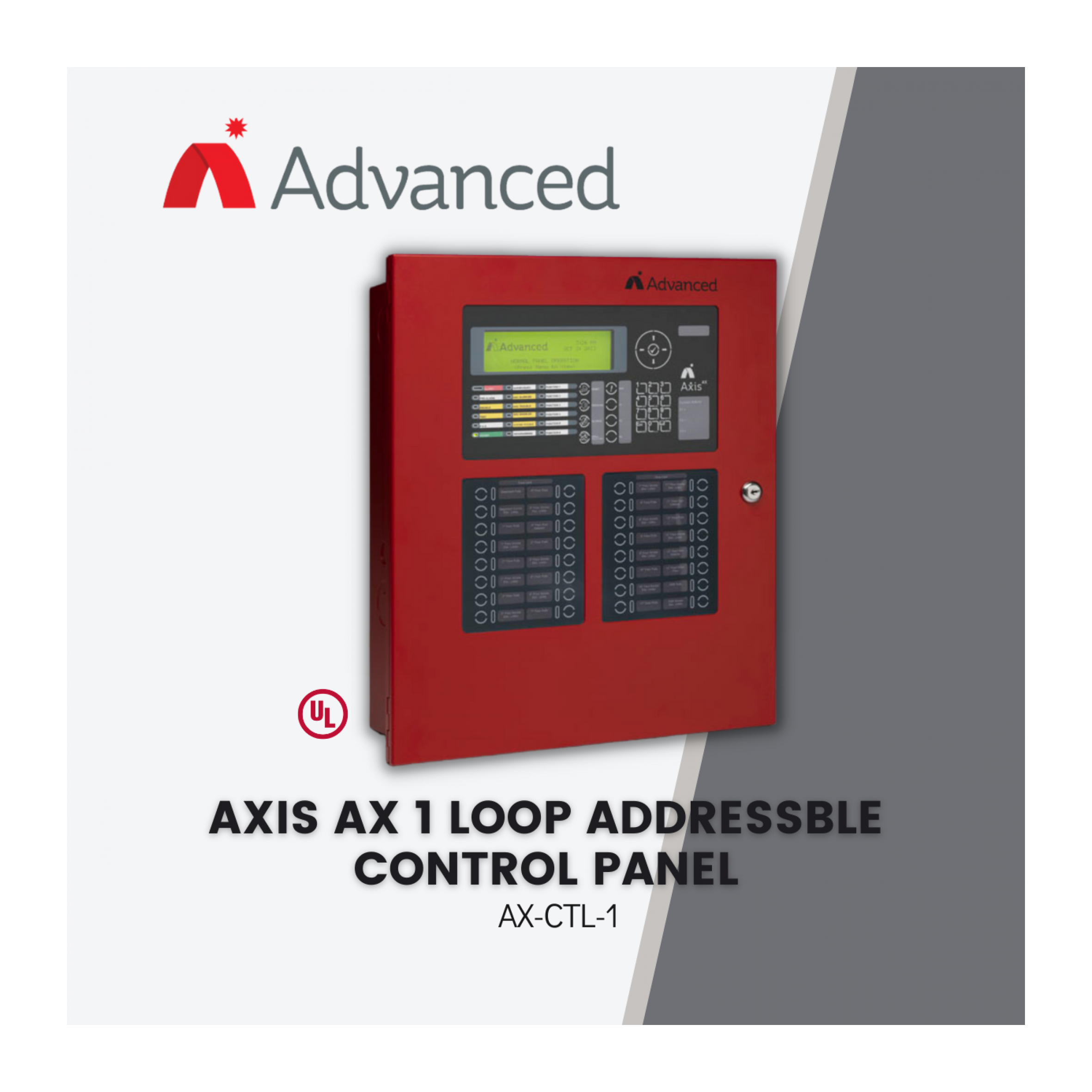

AXIS AX – 1 LOOP FIRE ALARM CONTROL PANEL

Available in two (2) configurations, AX-CTL-1 (small/compact enclosure) or AX-CTL-1L (standard Axis AX Series sized enclosure), the AX-CTL-1 (1L) Intelligent Single Loop Fire Alarm Control Panel is a member of the industry leading Axis AX Series Intelligent Alarm Control Panels by Advanced. The AX-CTL-1 (1L) contains the identical features as the Advanced AXCTL- 2 (2 loop) and AX-CTL-4 (4 loop) Intelligent Fire Alarm Control Panels, and is ideally suited to smaller applications. However, as a member of the Axis AX Series product line the AX-CTL-1 (1L) can easily be utilized in larger applications due to its integral peer-to peer networking capabilities. Designed with installation and service engineers in mind, the AX-CTL-1 (1L) intelligent panel is modularly packaged, using surface mount and dual flash microprocessor technology, with onboard real time clocks for ease of installation, troubleshooting, programming and maintenance.

  • FEATURES:

    • 126 Analog Addressable Points

    • Advanced User Interface w/Graphical LCD

    • “DynamiX” I/O Relationship Programming

    • Multi-Pattern & Two-Stage NAC Control

    • Remote Diagnostic Virtual Panel Simulator

    • AD-NeT-PluS Peer-to-Peer Networking

    • Automatic Drift Compensation per Detector

    • Automatic Detector Testing w/Maintenance Alert

    • Alarm Verification and PAS

    • Style 4, 6 & 7 SLC Operation (supports loop powered technology)

    • Class A or B NAC Circuits

    • Voltage Regulated NACs (compatible with most Listed NAC devices)

    • Synchronization of Audibles and Visuals (Panel or Network Wide)

    • “Auto-Learn/Loop Detection” Programming

    • Built-in Intelligent Multi-Meter

    • Optional ipGateway for text and email status notification

    • Optional Integral or Portable Printer

    • SLC Circuit Compatibility with Xtralis VLC-400

  • LISTINGS AND APPROVALS:

    • ETL ANSI/UL 864 Listed: 3118002NYM-001B

    • CSFM Approved: 7165-1713:0101

    • NYCFD COA #6080

Model: AX-CTL-1

Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Operating Voltage
  • 120 VAC (1.4A) - 240 VAC (0.7A), 50/60Hz

System-Brown-Out
  • 98 VAC nominal

Battery Circuit
  • Charging Voltage - 27.4 VDC nominal
  • Temp. Compensated Charging Current - 2 Amp
  • Battery Derating Factor - 0.83A
  • Battery Capacity - 7 Ah (minimum), 48 Ah (maximum)
  • Battery Fuse - 5A @ 240 VAC, Time Delayed, Ceramic, High Breaking (In-line Wire Link)

Fire, Supervisory, and Trouble Relays (Power Limited - when utilizing system power)
  • Type - Form “C”
  • Rating1A @ 30 VDC/VAC
  • Trouble Relay - Normally Active (fail-safe operation)

Auxiliary Power Outputs (Power Limited)
  • RESETTABLE Voltage - 24 VDC Current - .5A Reset Time - 10 - 15 Seconds
  • NON-RESETTABLE Voltage - 24 VDC Current - .5A

Humidity
  • 85% RH

Temperatures
  • Operating: 320F - 1200F (00C - 490C)
  • Recommended Room: 600F - 860F (150C - 270C)

Enclosure Dimensions
  • AX-CTL-1 - 19.1”H x 16”W x 5.3”D
  • AX-CTL-1L - 24.1”H x 16”W x 6.3”D

SLC Loop (Power Limited)
  • Class (Style) - Class A or B (Style 4, 6 or 7)
  • Voltage - 24 VDC
  • Minimum Return Voltage - 17 VDC
  • Current - .5A

NAC Circuits (Power Limited)
  • Class (Style) - Class A or B
  • Voltage - 24 VDC (filtered and regulated)
  • Minimum Return Voltage - 16 VDC
  • Current - 2A (each)
  • Maximum Voltage Drop - 3 VDC
  • Maximum Line Impedance-1.5Ω

RS232
  • Baud Rate - Supervised, Optically Isolated
  • Parity - 9600
  • Data Bits – None
  • Stop Bits - 81

Base Card Operating Current
  • Quiescent- 110 Ma / Alarm -195 mA
Brochure

AXIS AX – 1 LOOP FIRE ALARM CONTROL PANEL

AX-CTL-1 DATA SHEET
