The Evac-Go open-area conventional wall sounder can be used as either a standalone conventional device or as a loop-powered intelligent unit with the addition of our addressable sounder interface module (Axis-CWS). The device is capable of reproducing 32 tones with a high sound output capability and four volume settings. These can be selected by a DIP switch at the back of the sounder body. Standard and alternative tones are available for each setting which can be selected via the control panel programming when used with the intelligent interface (Axis-CWS)) or wiring connections if used as a conventional standalone unit. Low current consumption and compact design gives a wide-angle uniform sound distribution providing good audibility in all directions. The sounder is easy to install and incorporates built in short circuit loop isolation.
-
FEATURES:
-
Flexible modular design
-
Approved for outdoor use to EN54-3 (Type B)
-
32-tone settings
-
Wide angle uniform sound distribution
-
Weather proof to IP65
-
Easy to install
-
High sound-output capability
-
4 adjustable volume settings
-
Robust with high reliability
-
Available in red (Axis-CWS) or white (Axis-CWS/W)
-
.png)

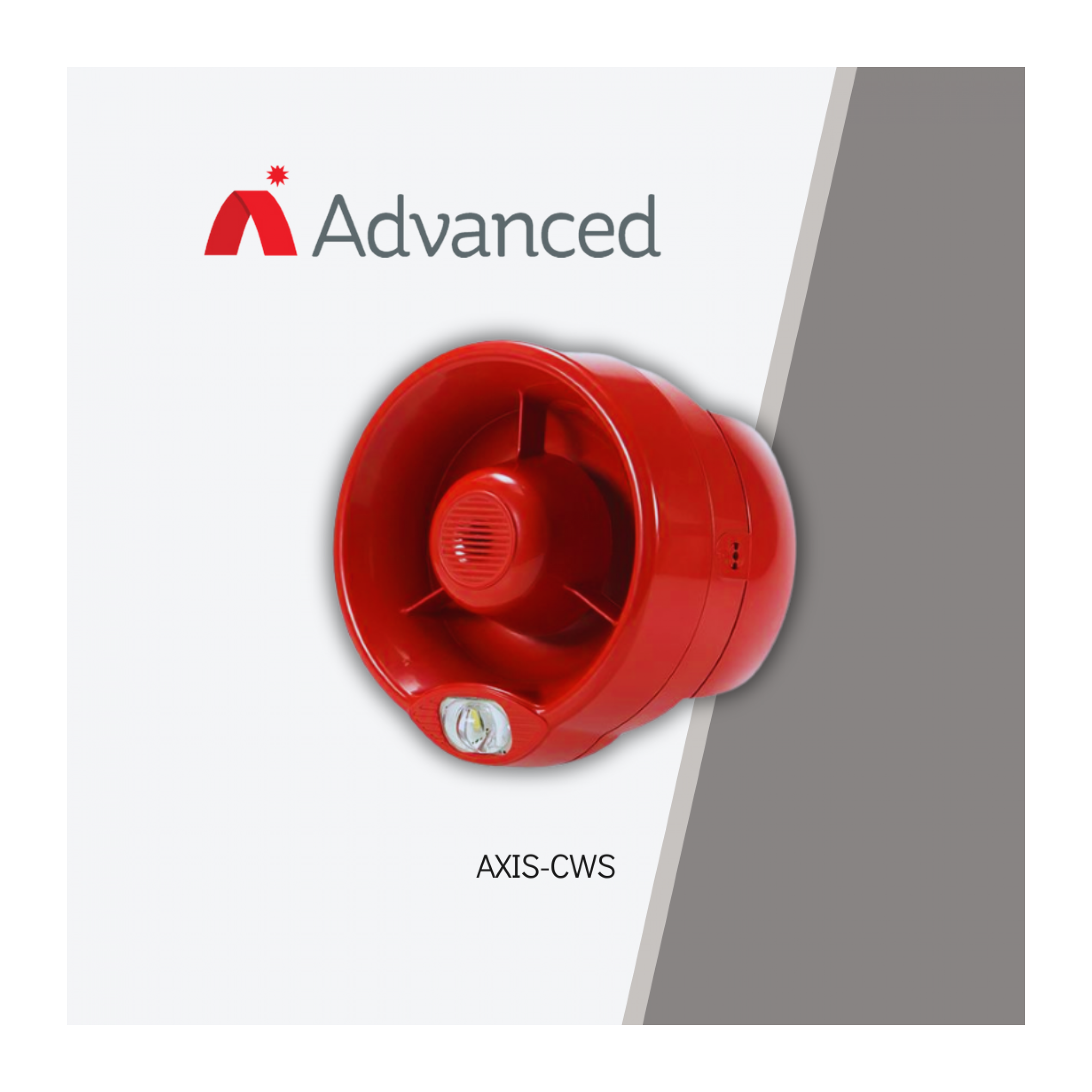

Model: AXIS-CWS
| SPECIFICATIONS SPECIFICATIONS | DESCRIPTION DESCRIPTION |
|---|---|
|
Power supply |
|
|
Alarm current consumption |
|
|
Audible frequency range (dependent upon tone selected) |
|
|
Maximum sound output (volume set to HIGH) |
|
|
Operating temperature range (no icing) |
|
|
Depth (base) |
|
|
Weight (base included) |
|
|
IP rating* 21 IP rating (not certified) |
|
