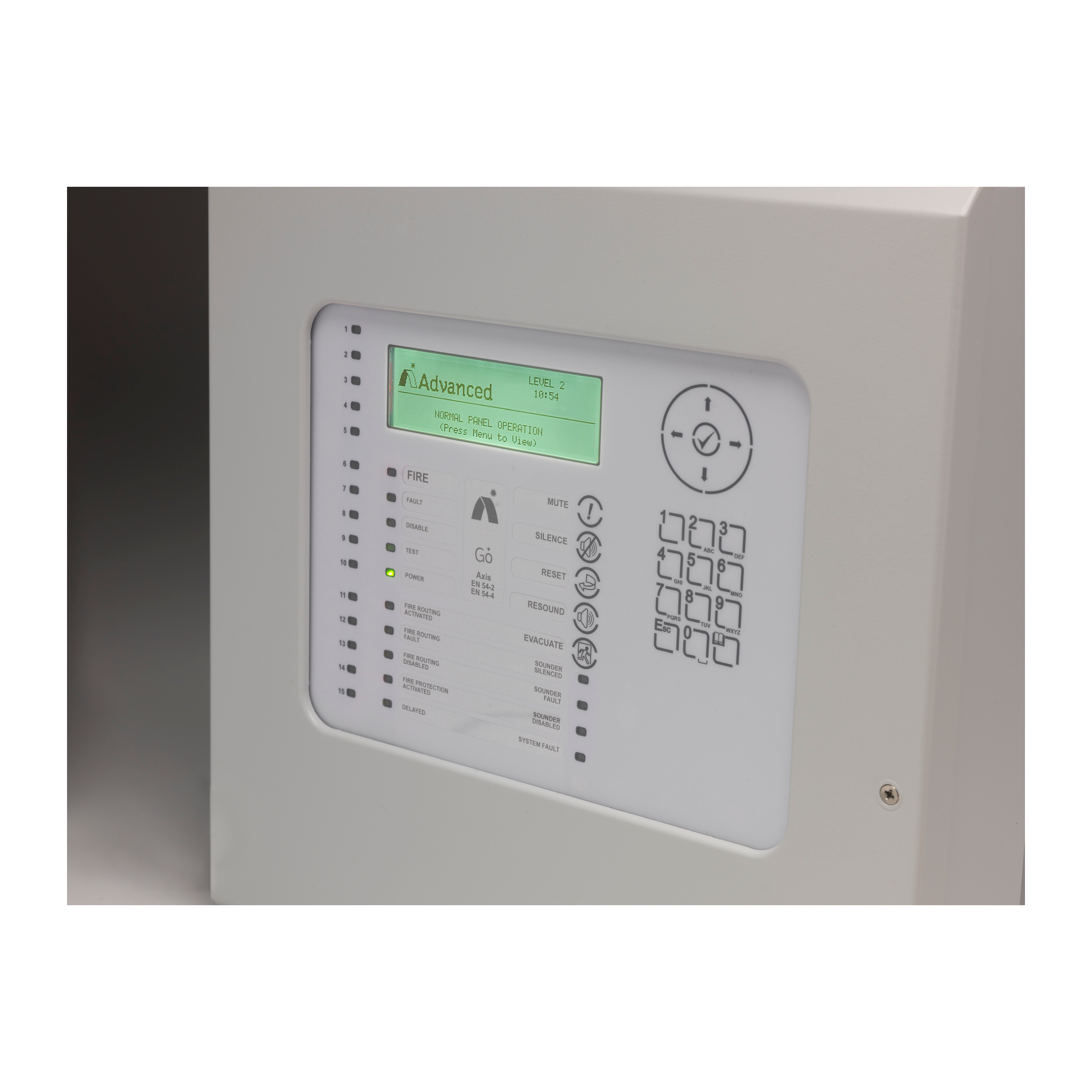

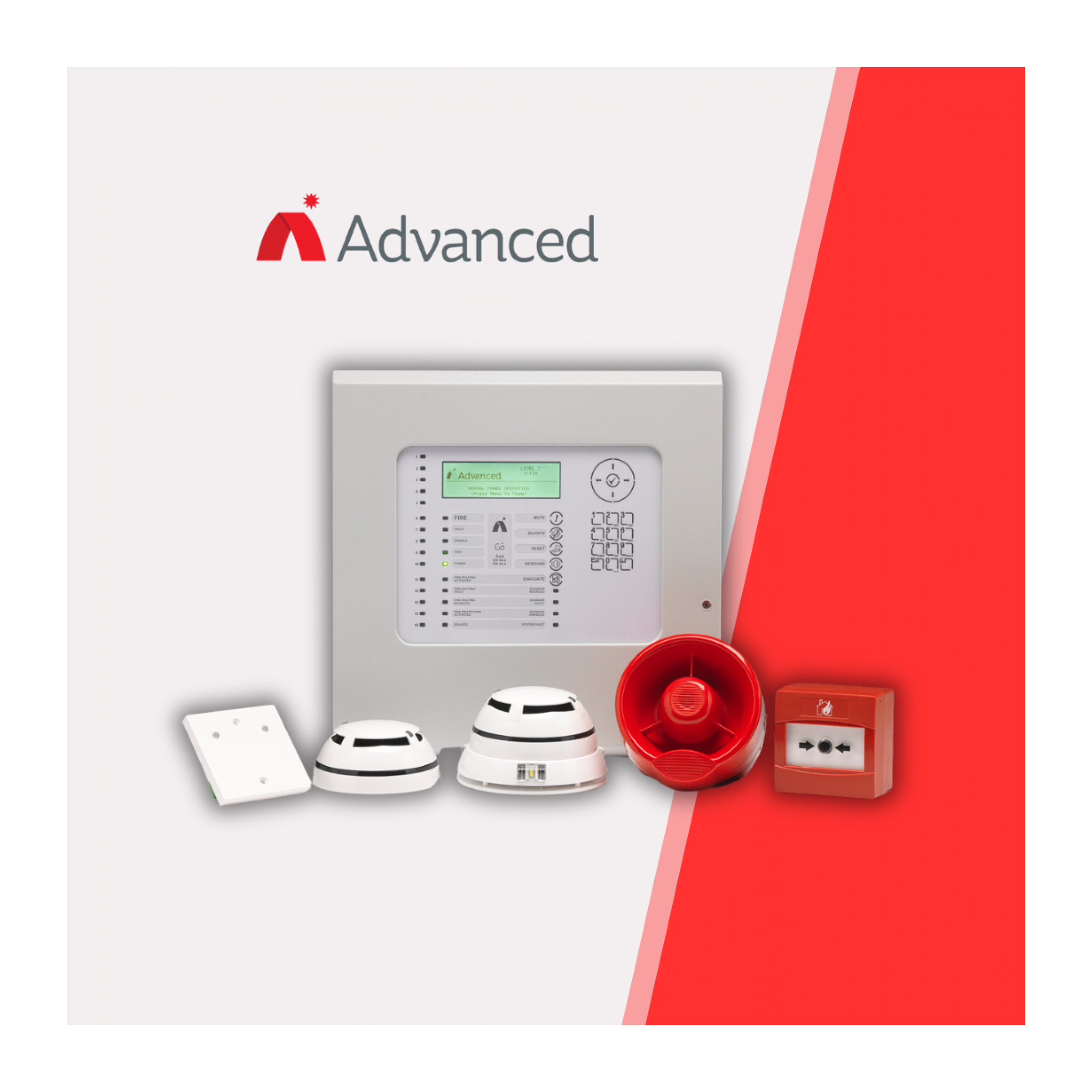

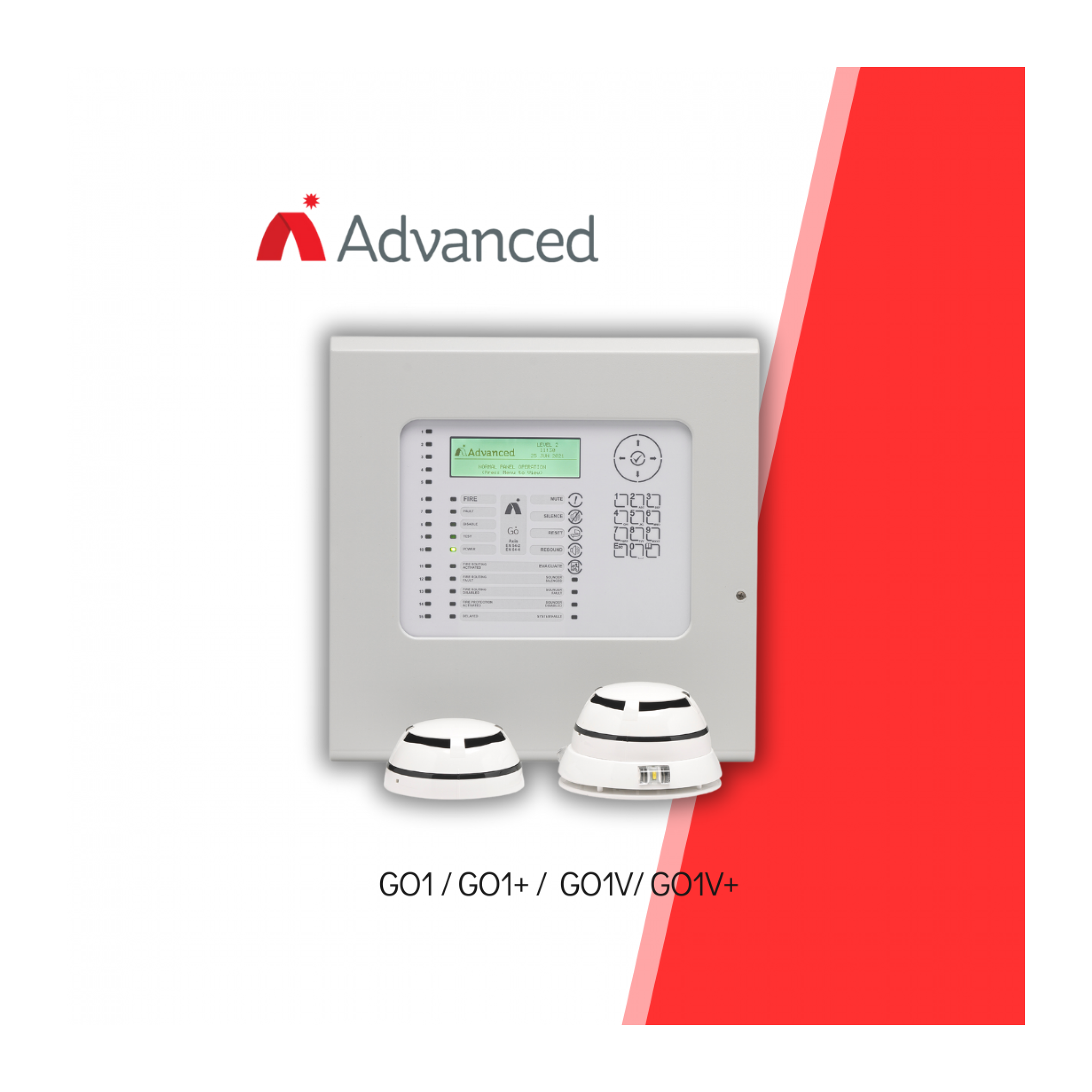

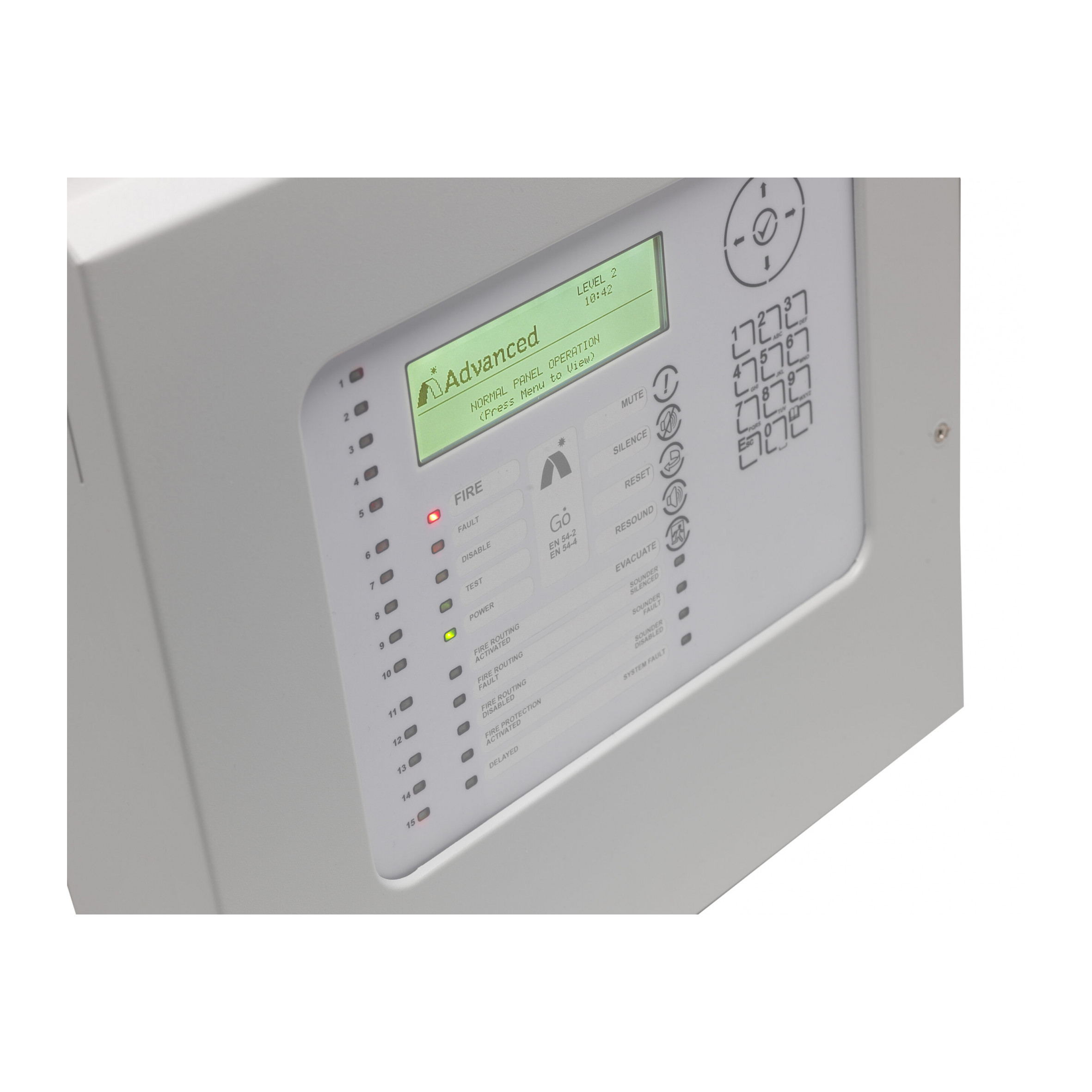

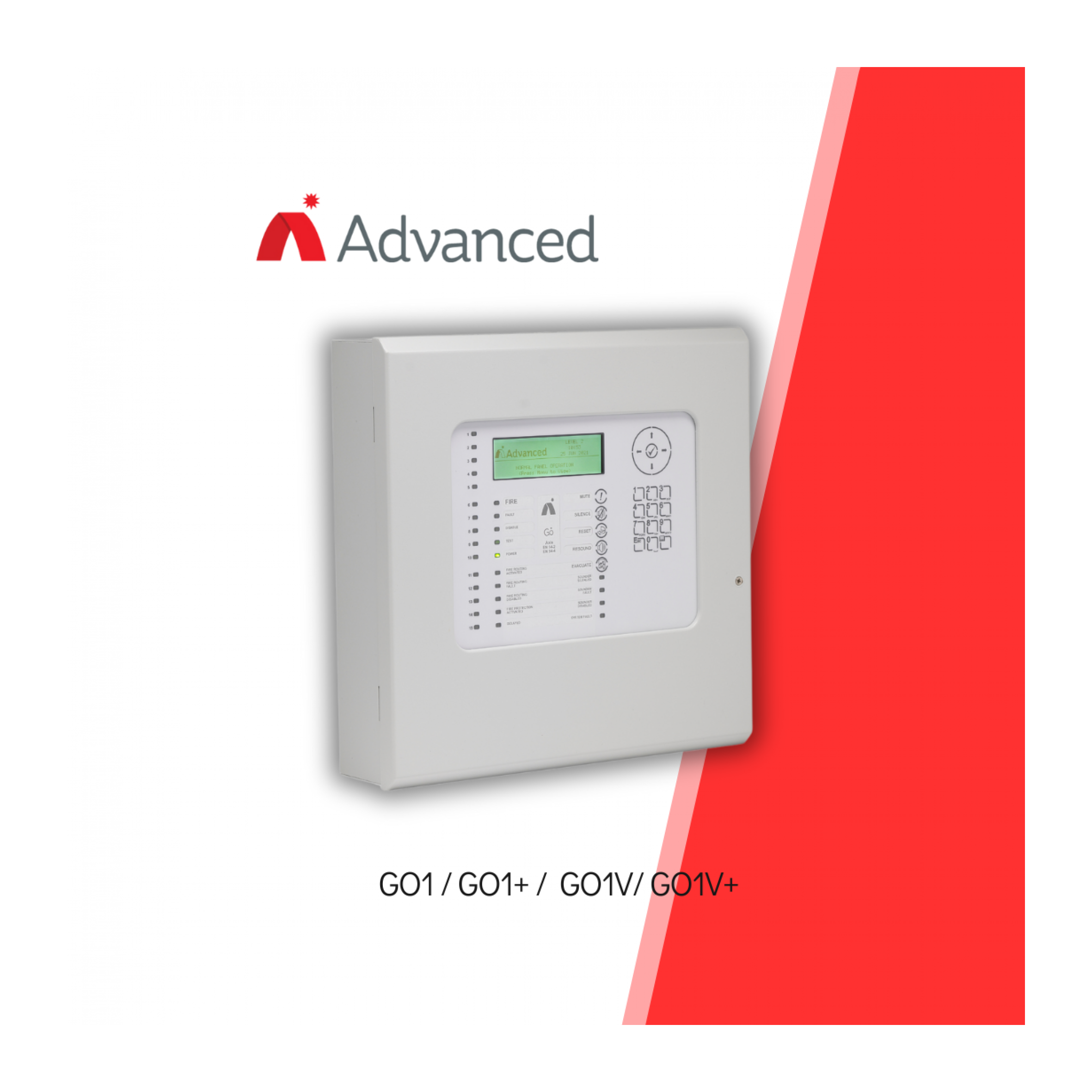

AXIS GO SINGLE LOOP FIRE ALARM CONTROL PANEL

Designed to be fast to fit, quick to configure and easy to use, Axis Go saves install time whilst bringing you complete peace of mind that your single panel site has the highest levels of fire protection. Offering cost-effective access to popular premium features from our Axis EN range in a simpler, non-networkable format, Axis Go provides powerful protection for a wide range of smaller sites. Packed with future-proof technology and flexible features – including false alarm management, built-in zonal LEDs and a handy service tool – Axis Go’s ready to become your Go-to!

  • FEATURES:
    • Versatile cause and effect In-depth control over alarm verification and investigation delays to outputs.

    • Customised management for any site Divide your building(s) into ‘building areas’, each with quick to apply unique or group false alarm management settings.

    • Unlimited points No restriction on the number of points in a building area and configurable by point.

    • Global acknowledgement Panel inputs can be programmed to manage verification and output delays.

    • Full event log all verification and output delays recorded in panel event logs.

    • Flexible verification Set verification by building area, day/night, on/off, change verification times, verification by second device or device mode change.

Model: GO1/GO1+/GO1V/GO1V+


Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Enclosure

  • Steel IP30 RAL7035

Weight (excluding batteries)

  • 4Kg

Dimensions H x W x D mm

  • 345 x 345 x 87

Temperature Range

  • -5 C to 40 C

Humidity (RH)

  • 95% max

Cable Entries

  • (20mm knockouts) 14x top

AC Supply

  • 220-240V, 50 – 60 Hz, 1.0A max

Safety

  • EN62368-1, Class 1, Pollution Degree 2, Overvoltage Category II

Battery Capacity

  • 2 x 12V 4Ah Internal (min) 2 x 12V 7Ah Internal (max)

Charging Current

  • 0.35A Temp Compensated

Power Supply

  • On-board 24V DC, 1.5A High Efficiency Off-Line Switched Mode

Display

  • LCD White backlit 240 x 64 Graphical LCD

Programmable Inputs

  • 1 x Key Switch, 1 x Monitored

USB

  • USB type B interface for PC connection

Ethernet

  • 10-Base-T, 100-Base-T

Event Log

  • 5000 Event and Diagnostic + 500 Fire
BROCHURE

GO1/GO1+/GO1V/GO1V+ BROCHURE
