SLIM DESIGN MULTI-FUNCTION READER

Elegant and slim design, suitable for installation in narrow place, metal housing enhances collision resistance. It has slim appearance that suitable for installation in narrow place and limited area. Flexible to integrate with SOYAL or other access control system.

  • FEATURES:

    • Invisible Keypad

    • Uniform Design

    • Dust and Waterproof

    • Dual Indicator

    • Slim Design

    • Metal Housing, fashion and the safety design

    • Built-in Watchdog to prevent system from hanging

    • Built-in Anti-Tamper functions

    • Keypad Reader, the access mode can increase the use of passwords

    • With an external keypad controller, to set the instruction in this controller

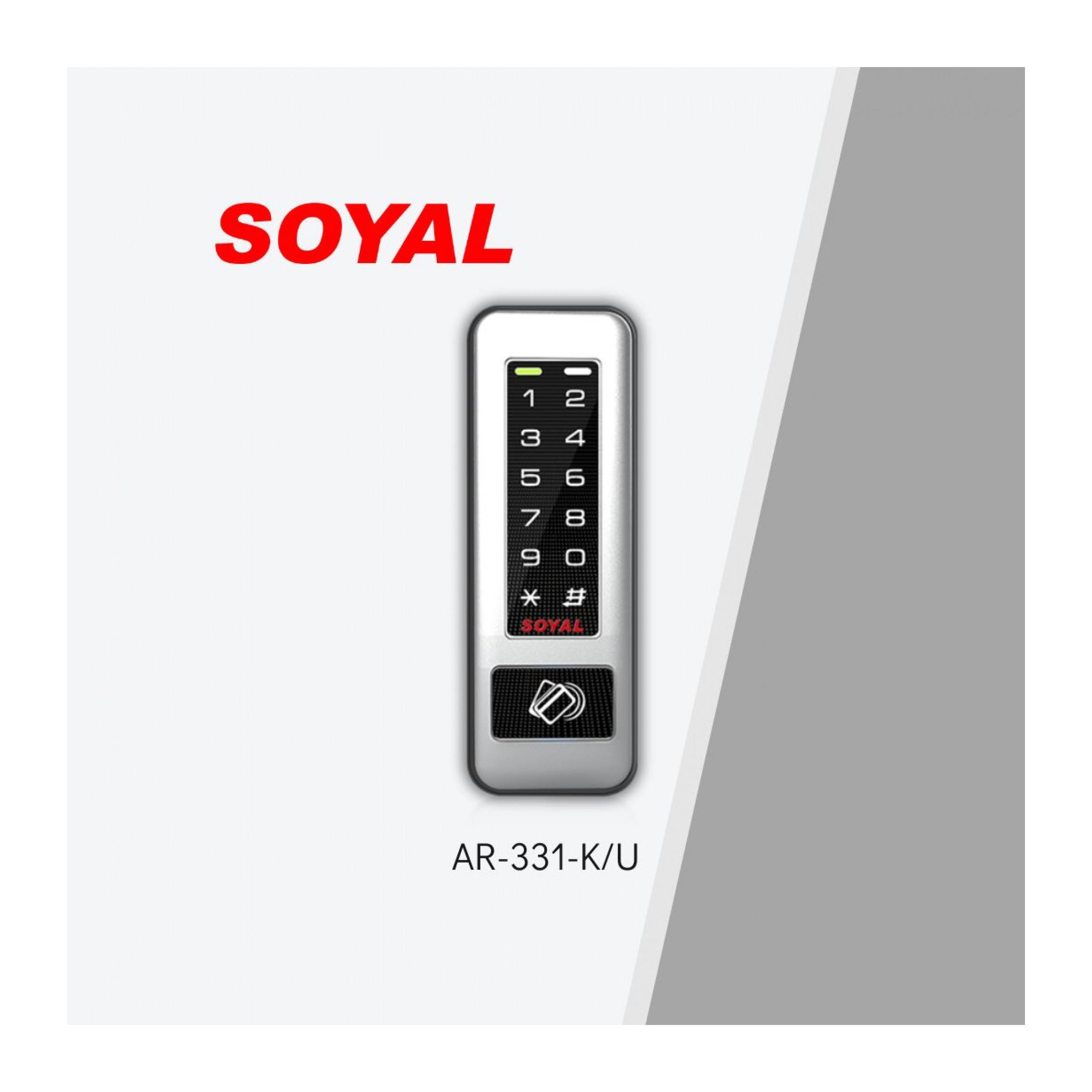

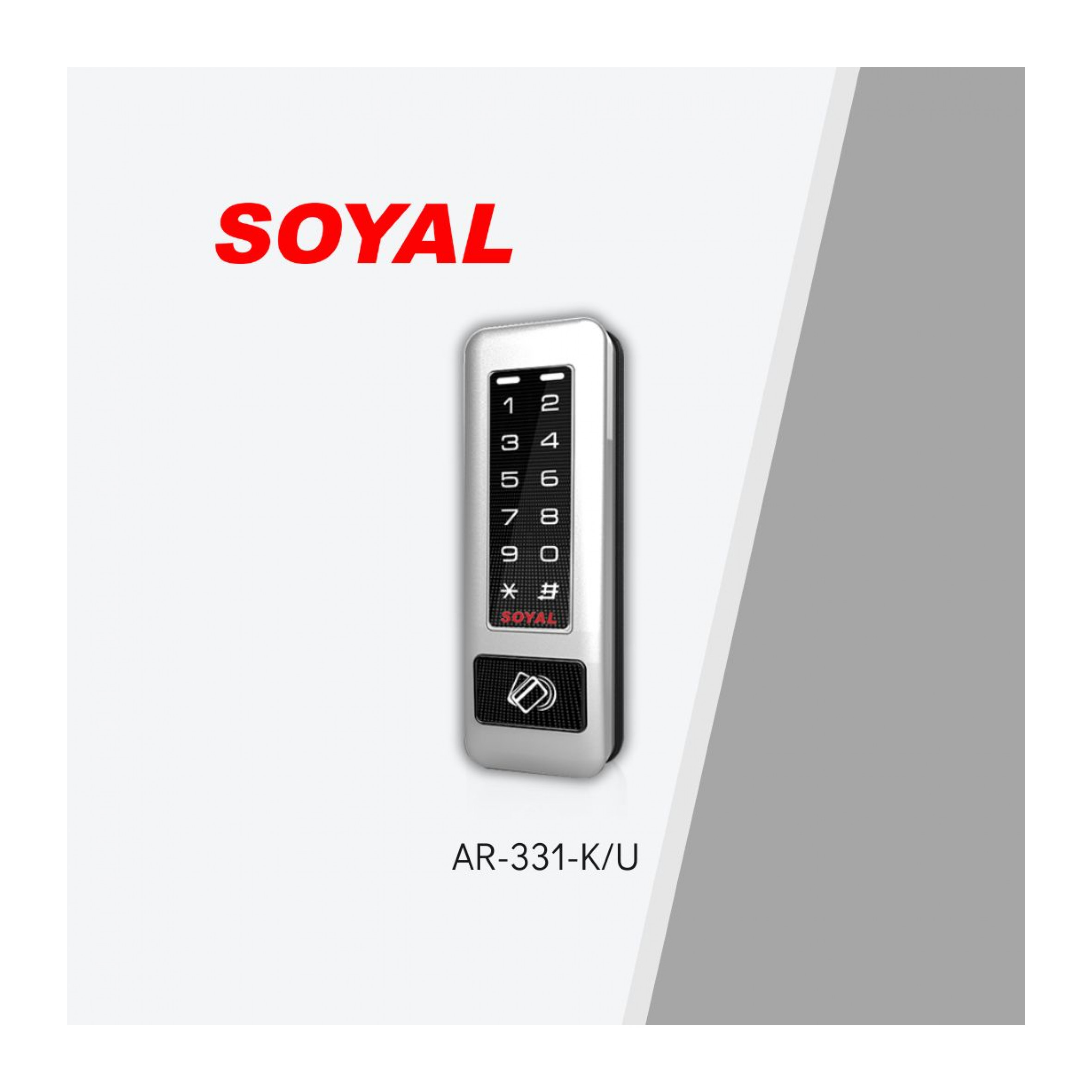

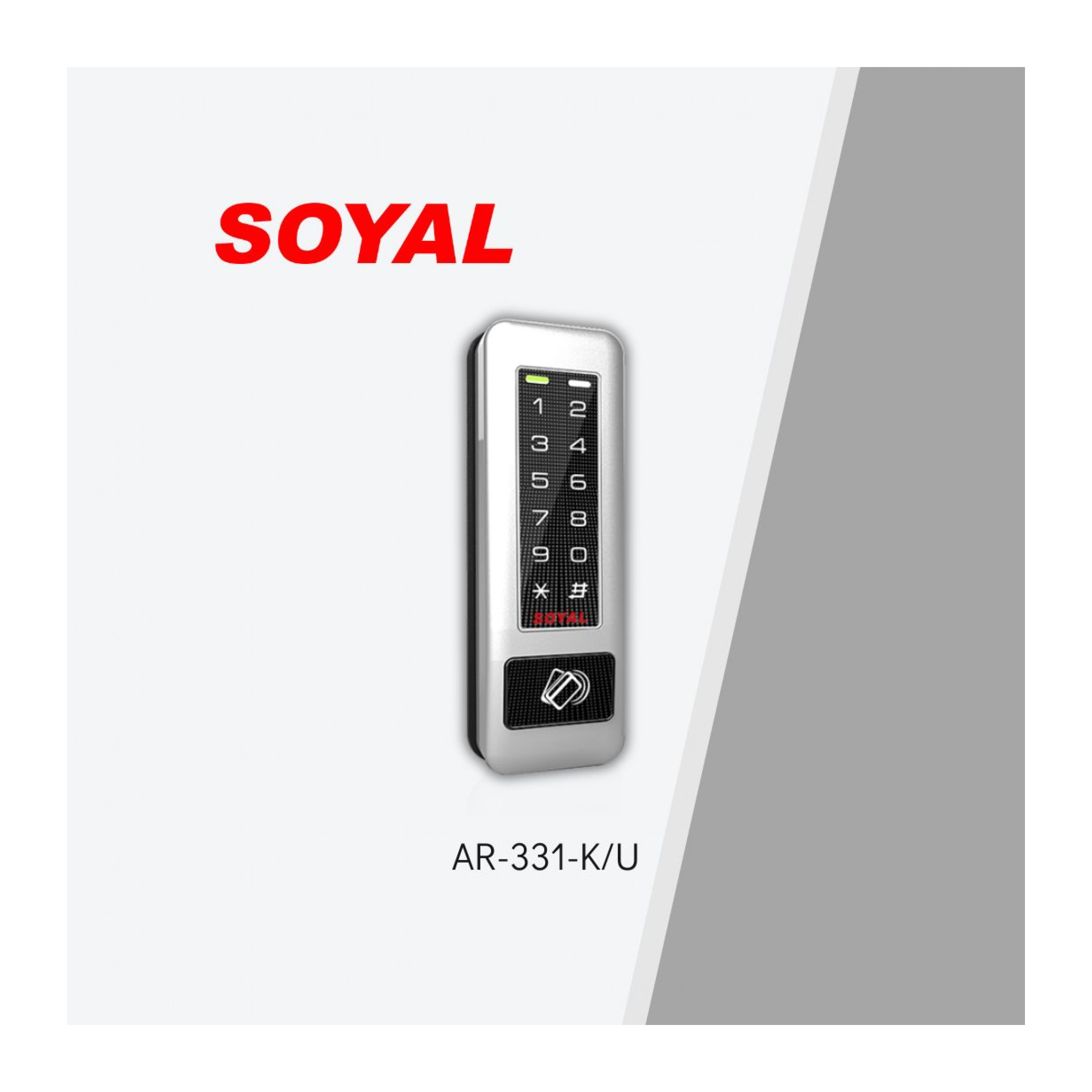

Model: AR-331-K/U

Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Proximity Reader
  • 125kHz : EM 13.56MHz:Mifare ISO14443A / NFC / DESFire / Felica / ISO15693

Controller
  • User Capacity: 1,024 /3,000/16,000 /32,000 / 65,000
  • DI/DO:Engress/ Door State /Arming input / Arming Output / Alarm Output /Duress Output /Security Output/ Door Bell

Push Button
  • Touch-less Infrared / Relay Output (COM/N.O./N.C.)

Dimension (mm)
  • 158(L) X 55(W) X 30(H)

Power Consumption
  • <1W

Ingress Protection
  • IP56

Operating Temperature
  • -20° C to +65° C

Storage Temperature
  • -25° C to +70° C
DATA SHEET

AR-331-K DATA SHEET
