KEYPAD WITH FINGERPRINT AND LCD ACCESS CONTROLLER

The most unique function of SOYAL control system is that the entire series of products are compatible with an expandable cascade structure. The hardware system can effortlessly add new equipment and scale up the system capacity and Improve system security level without replacing the existing equipment as the needs of the customer growth.

  • FEATURES:
    • Dual communication interfaces: RS485 and Ethernet (10/100M Base T)

    • Built-in watchdog, real time clock, anti-vandalism switch, ingress protection , alarm setting, holiday edit, auto open door time zone, door group, door status DI, anti-pass back function and duress code & output.

    • Support user capacity: 16,000/ 32,000/ 65,000 users

    • Support floor control: 64/ 32/ 16 floors

    • In case Ethernet disconnects, controller is still able to identify UID and record event log

    • Multiple access mode: card only, card or password, card and password

    • Standalone/Networking is switchable during working Support RS485 communication encryption, SSC (Soyal Security Communication)

    • Two doors control: Two sets of push button and door status, relay output for lick and WG output for reader.

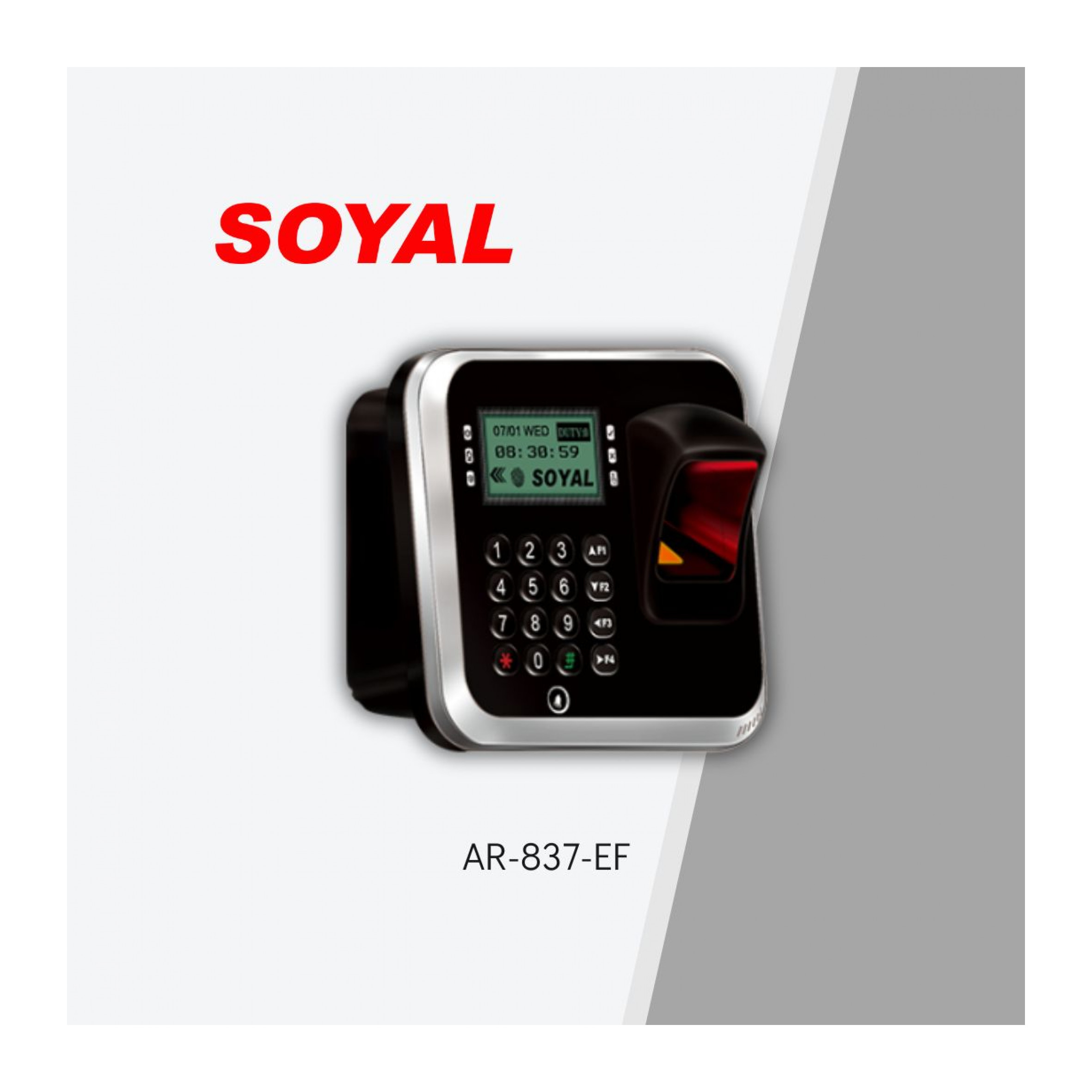

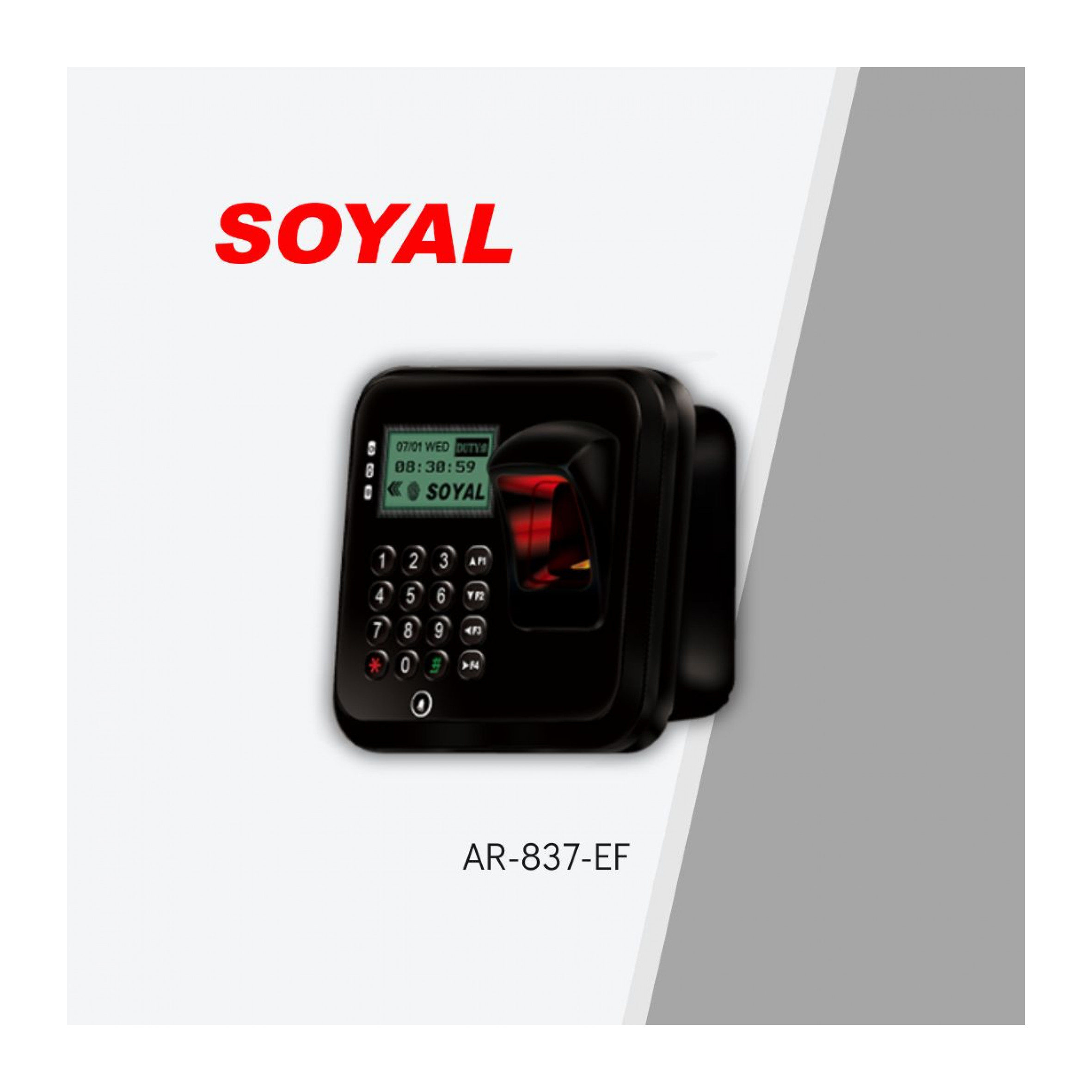

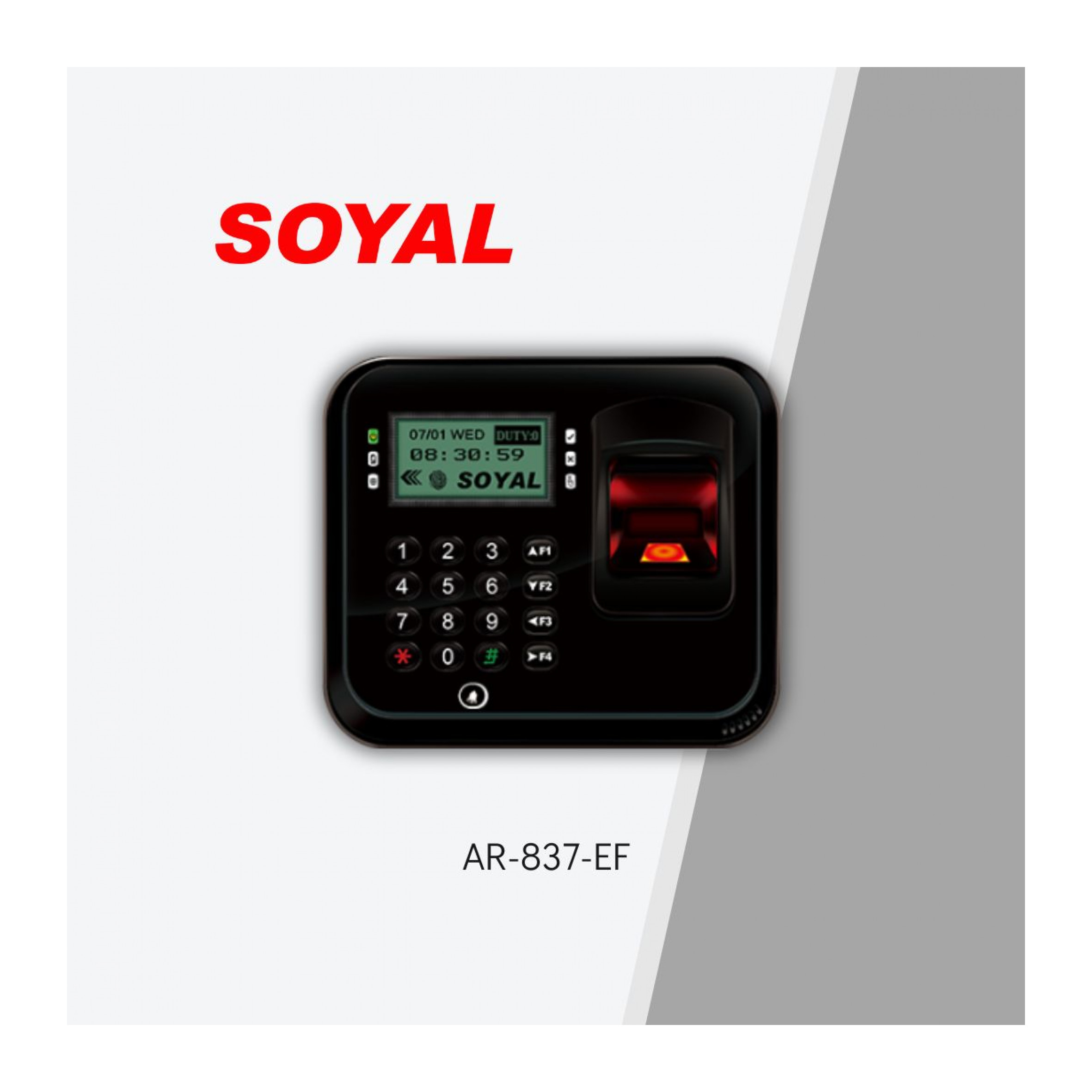

Model: AR-837-EF


Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Frequency

  • 125kHz/ 13.56MHZ/ Dual Band (125kHz&13.56MHz)

Power Consumption

  • <5w

Indicator

  • 6 LED (Green/Red)

Net Weight (g)

  • approx. 320

Power Voltage

  • 9-24 VDC

Image Resolution

  • 500dpi

Fingerprint Capacity

  • 9,000FP

Sensible Temperature

  • +30° C to +31° C
