SMART DIGITAL DOOR LOCK

Stay safe and easy with SOYAL Smart room management system, total solution that priorities safety and design. AR-323D provide anti-cloning and encryption for the whole system to tighten up the security. By this mean, only tags paired to AR-323D & AR-88-W can have access, other than that we don’t even recognize the tags. Each product manufactured by Soyal was made for total solution and to offer flexibility.

  • FEATURES:
    • Mechanical key override

    • Easily card registration by master card

    • Anti-Vandalism

    • Illuminated Touch Panel

    • Background Light

    • Standalone/Networking/Support Cascade Structure

    • Support RS485 communication encryption, SSC (Soyal Security Communication)

    • In-Field Firmware Upgrade

    • Auto Open Time Zone: Built in 2 time zones, with Control Panel up to 16 time zones

    • Assign user for Door Group (up to 254) and Time Zone (up to 11, with control panel up to 63)

    • Auto Relock for Anti-Trailing and Sneaking

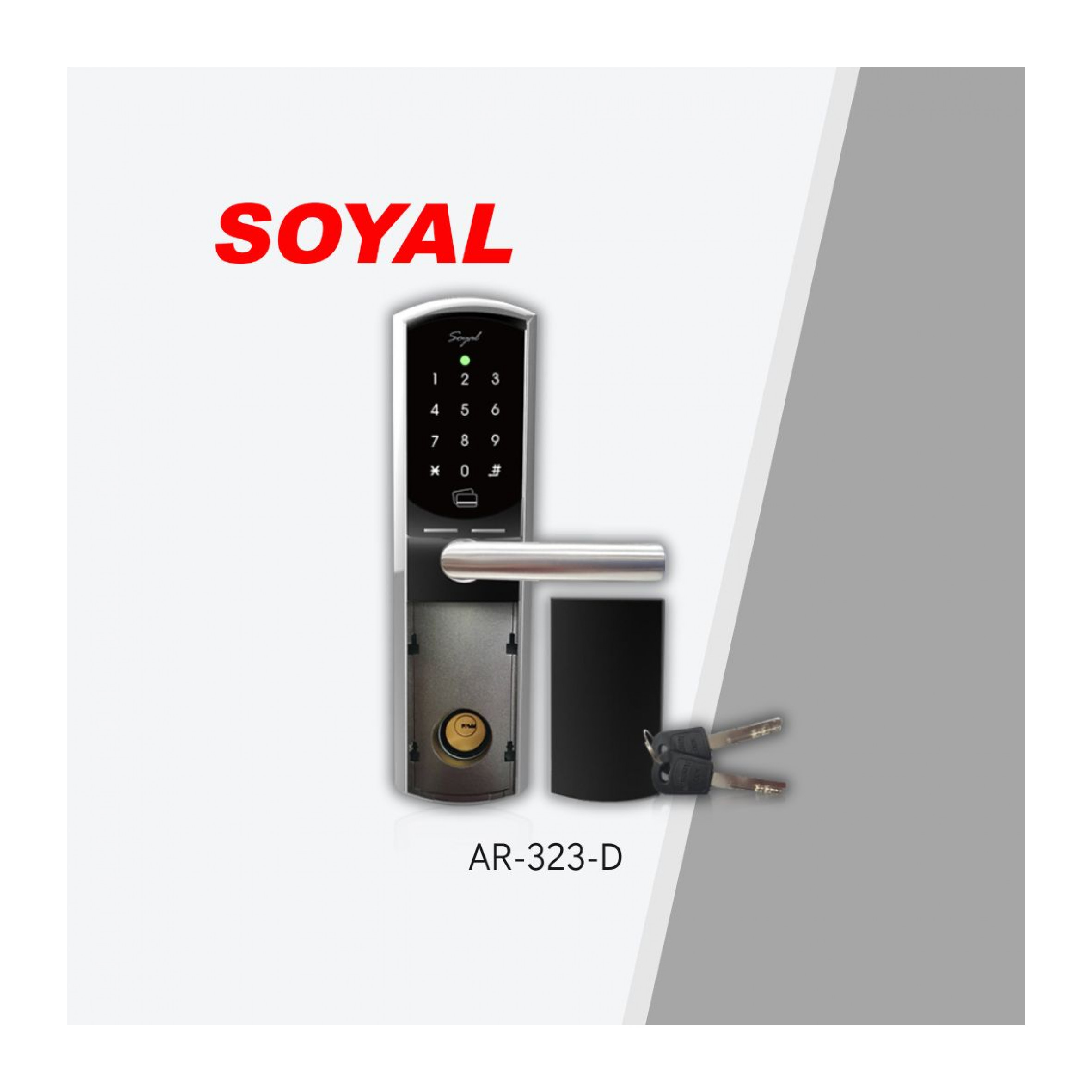

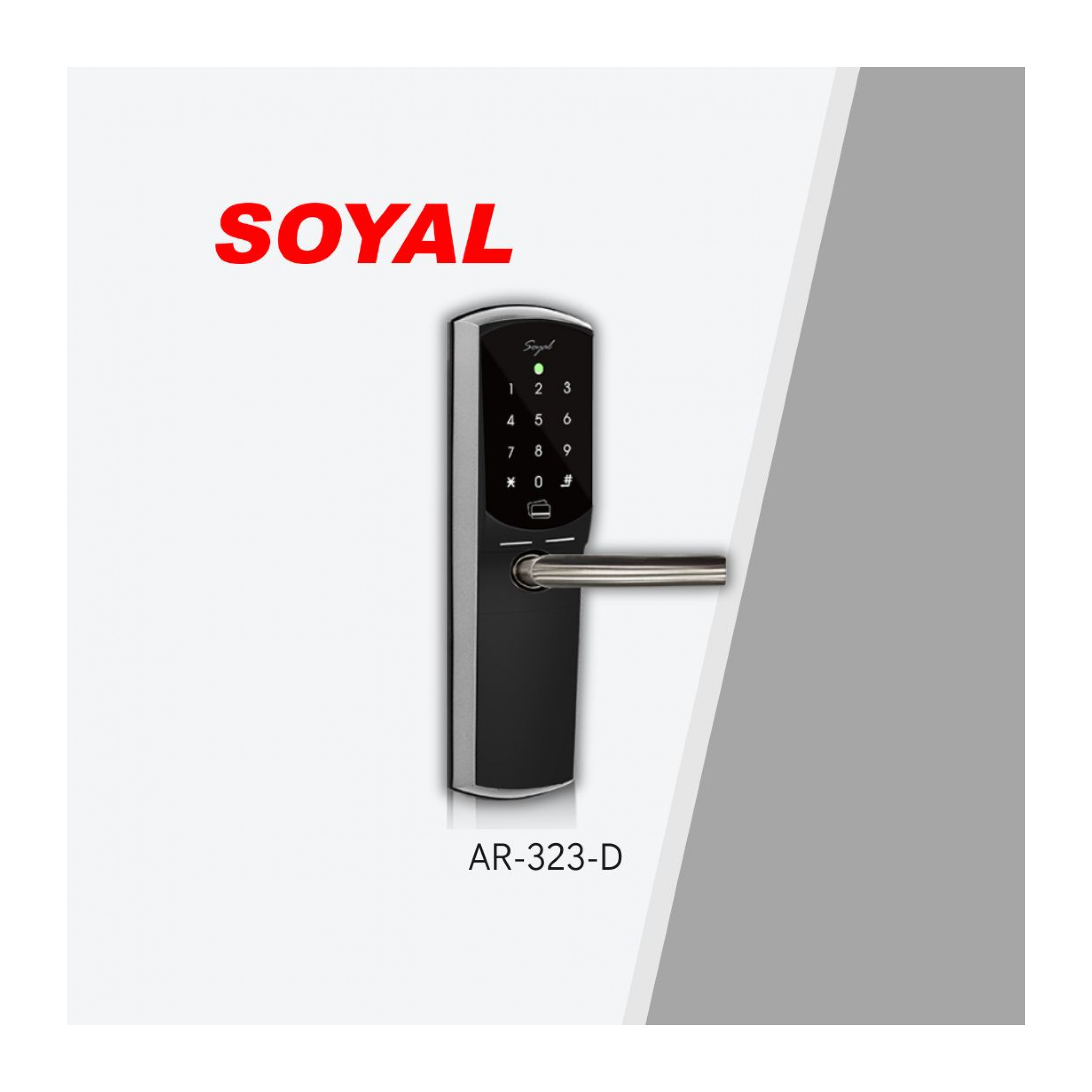

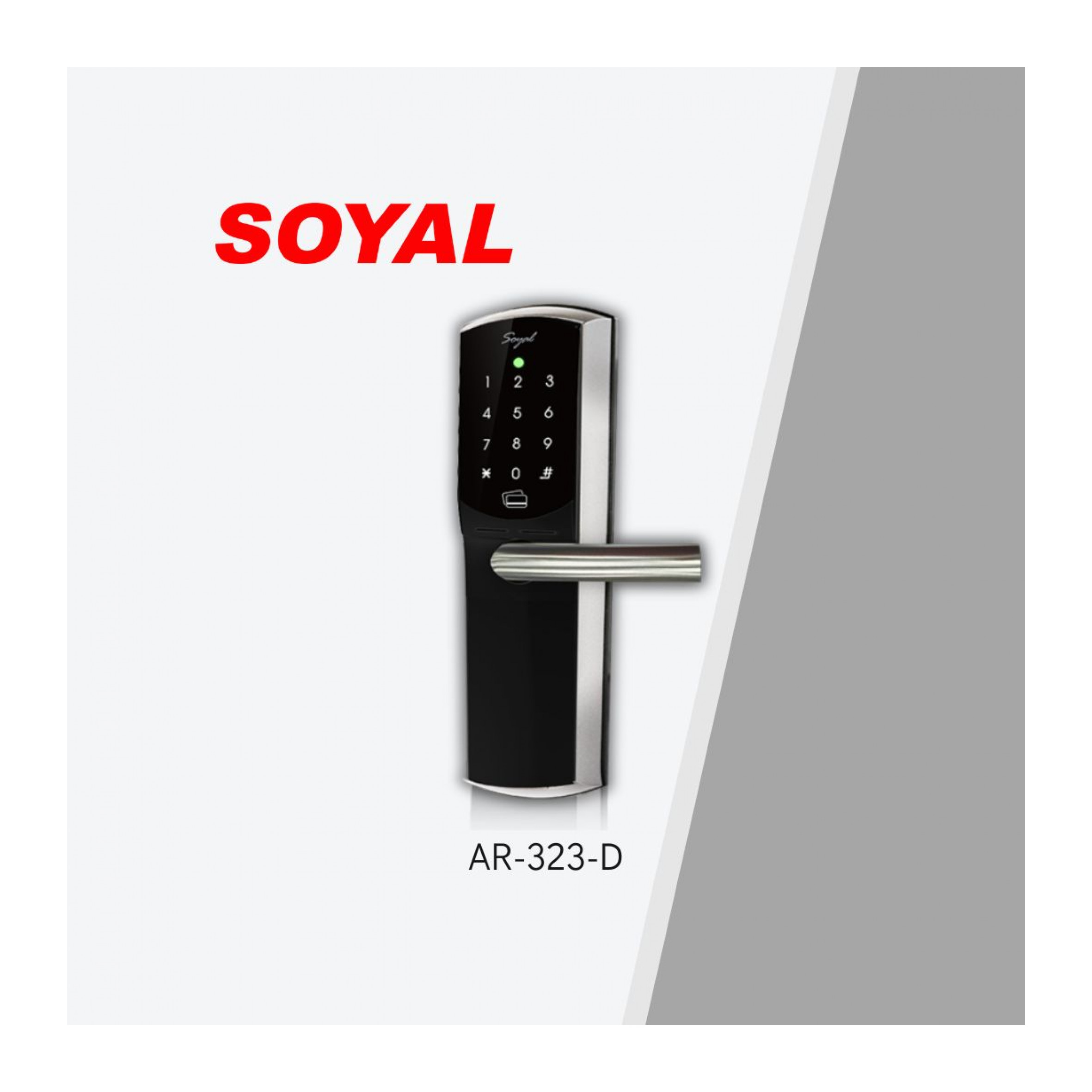

Model: AR-323D


Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Dimension (mm)

  • 276(L) X 75(W) X 53(H)

RF Reading Range

  • 0-2cm

Power Consumption

  • <50UA

Door Thickness

  • 40mm~80mm option

Weight (g)

  • 3900 ± 50

Storage Temperature

  • -25°C to +70°C
DATA SHEET

AR-323D DATA SHEET
