MODULE I/O (16 RELAY OUTPUT)

Automatic scheduling of community building atrium lighting based on some scenarios with the lights automatically turning off during the day and turning on at night. Wide applications in IoT monitoring Factory Automation or remote monitoring equipment.

  • FEATURES:

    • Serial Buffer

    • Modbus/RTU Protocol

    • Fire Alarm broadcast

    • Watchdog timer

    • Surge protection

    • Multi-signal conversion

    • Compatible with Modular DIN Rail Mounting Base (AR-701B)

    • N.O./ N.C. selectable via Jumper

    • 16 Form C Relay Output

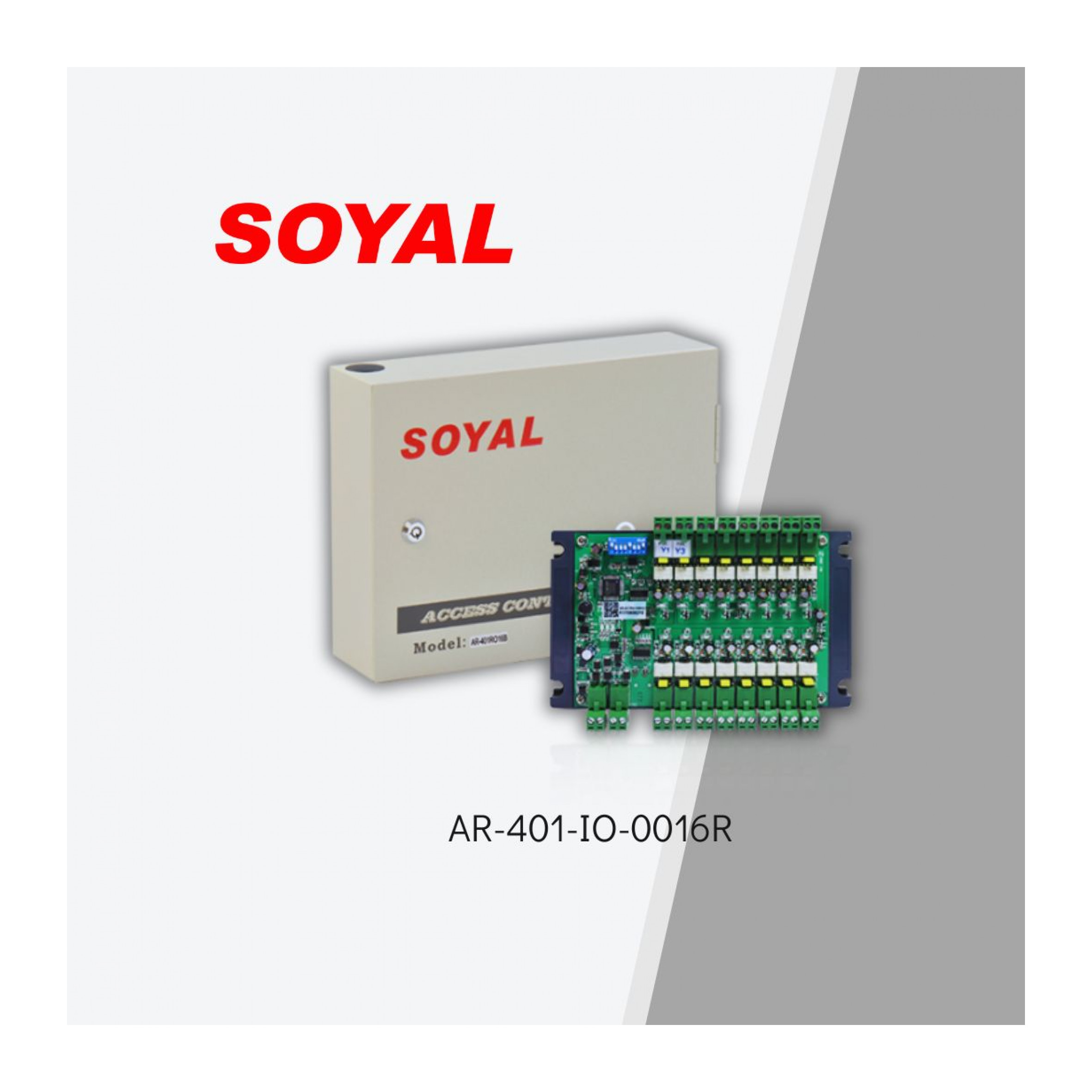

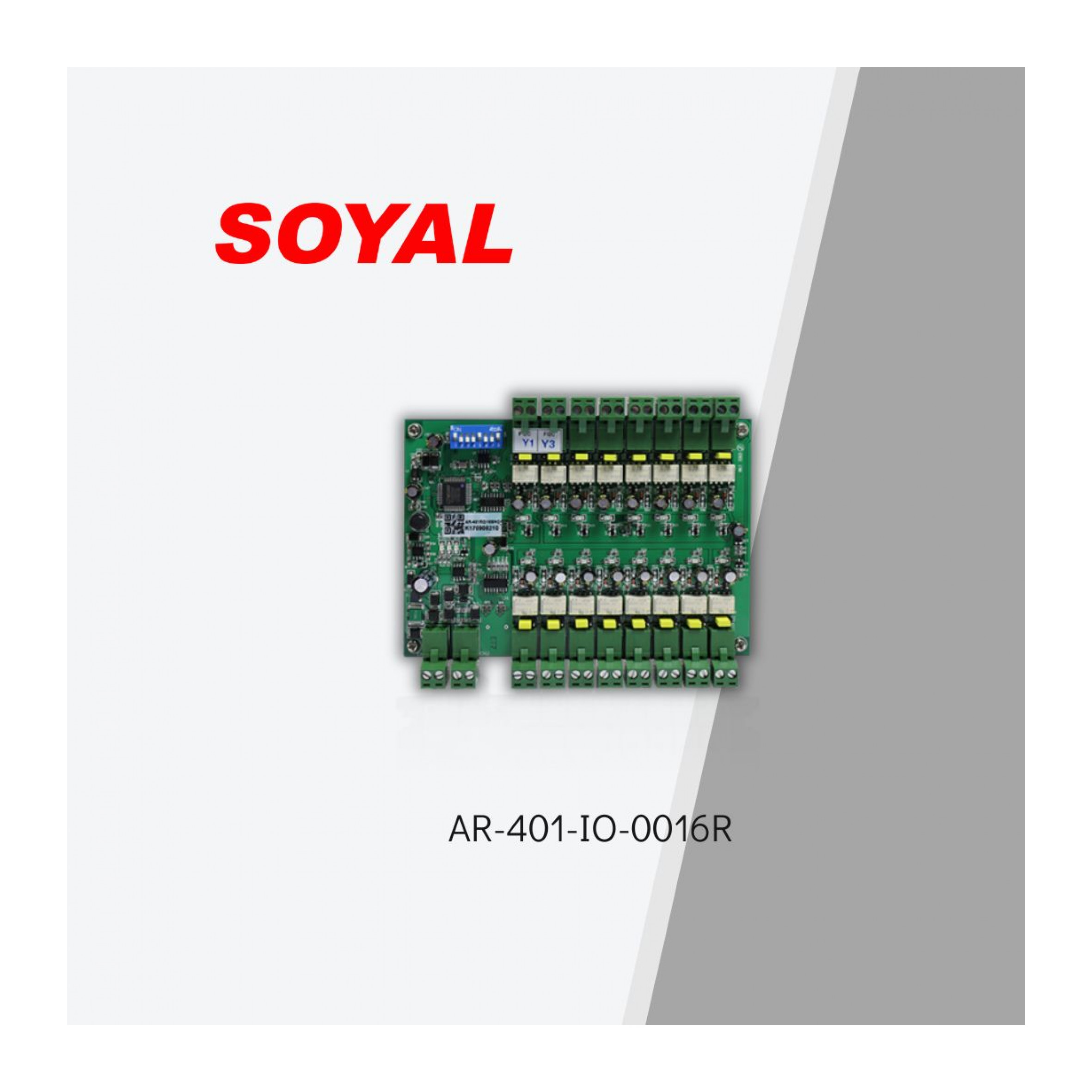

Model: AR-401-IO-0016R

Share on :   Share on Facebook Share on Facebook
SPECIFICATIONS SPECIFICATIONS DESCRIPTION DESCRIPTION

Dimension (mm)
  • PCB: 150(L)x100(W)x20(H) Panel Mounting Base: 130(L)x175(W)x32(H)
  • Metal Box: 180(L)x231(W)x62(H)

Digital Inputs / Outputs
  • 16 Relay Output (Form C)

LED Indicator
  • Power: Tx / Rx, Relay On/Off

Power Supply
  • 9-24 VDC

Power Consumption
  • <8W

Weight (g)
  • 1780±10
DATA SHEET

AR-401-IO-0016R DATA SHEET
